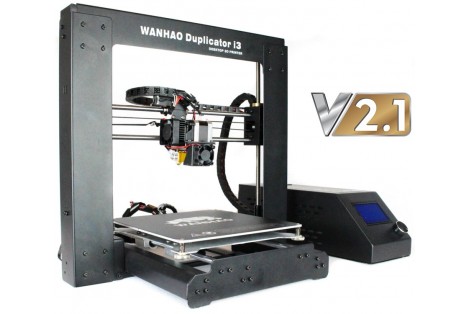

WANHAO Duplicator i3 V2.1

3DP0106

New product

More info

WANHAO DUPLICTOR I3 V2.1

2015121014434935.png   Dow nload      i3V2.1 feature list

Your vision is our driving force!

Pre-assembled steel frame Prusa i3 you ever had. Fully open source enable you to use any most up to date software. It's not only a printer, but a 3D guiding book walk you through basic knowlege of 3D printing. Specially good for noobs.



Extra-long 45mm LM8UU bearings guide the extruder assembly for better lateral tracking.

The Z-Axis endstop switch comes secured to a height-adjustable bracket allowing the freedom to choose between any of your favorite build




WANHAO i3 V2 i3 Version 2
Case Material Powder Coated Steel
Extruder MK10 Single-Extruder (with Steel X-Carriage)
Plate Heated Build plate
Print Technology FDM
Build Volume 8 x 8 x 7 Inches (200 x 200 x 180 mm)
Printing Material PLA, ABS, PVA, PEVA,  HIPS,
Layer Resolution ¡À0.10mm
Layer Thickness 0.1mm-0.5mm
Filament Diameter 1.75mm
Nozzle Diameter 0.4mm
Printing Speed 30-60mm/min
Extruder Temp. 180-240¡ãC
Heating Plate Temp. 40-60¡ãC
Connectivity USB Cable/MicroSD Card
Supports (OS) Winxp/Vista7/8, Linux, Mac OX
Operation LCD Screen + Rotary Knob
AC Input 2A/110V; 1A/220V , 50-60hz, 250W
NW/GW  10kg/12kg
Overall Dimension 40x41x40cm
Packing Measurement  47x47x30cm
Software Repetier/CURA /Simplify 3D
File Type Gcode
File Format .stl
