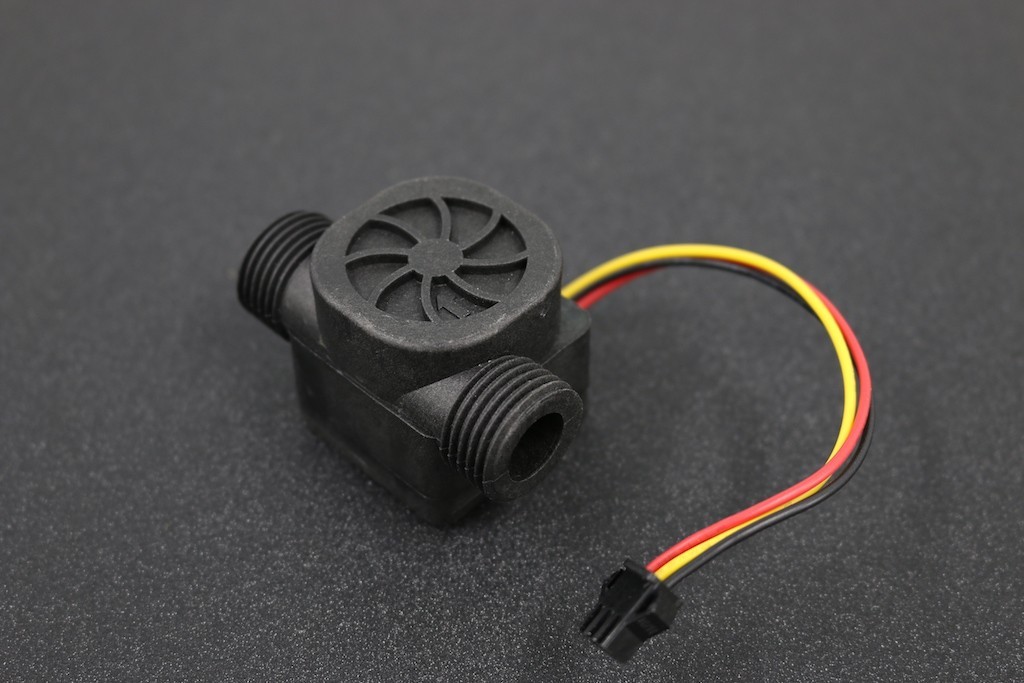

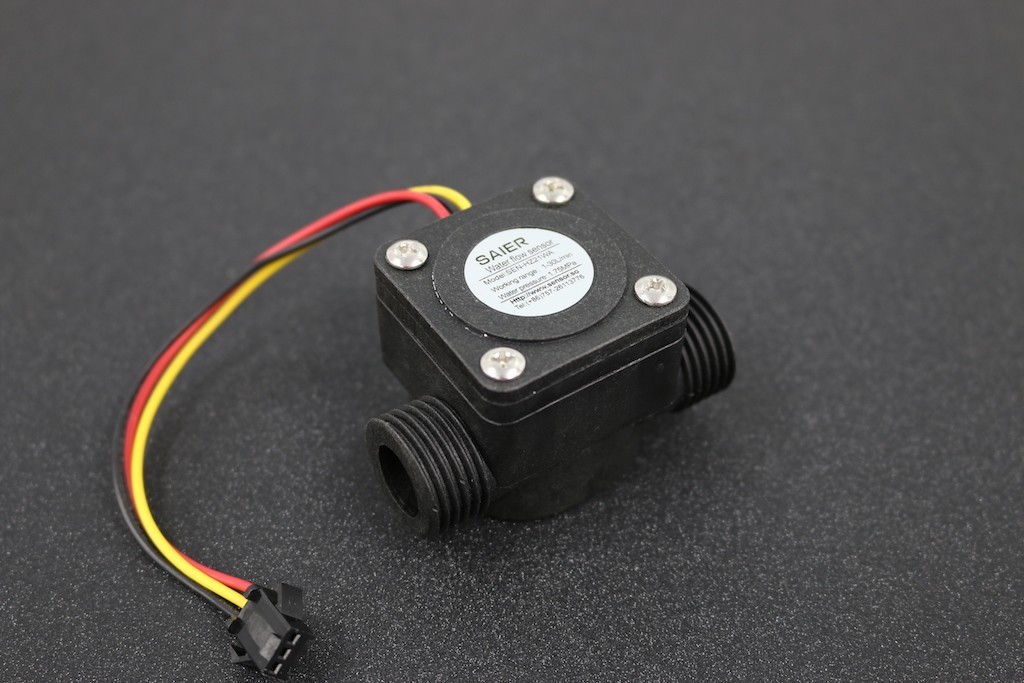

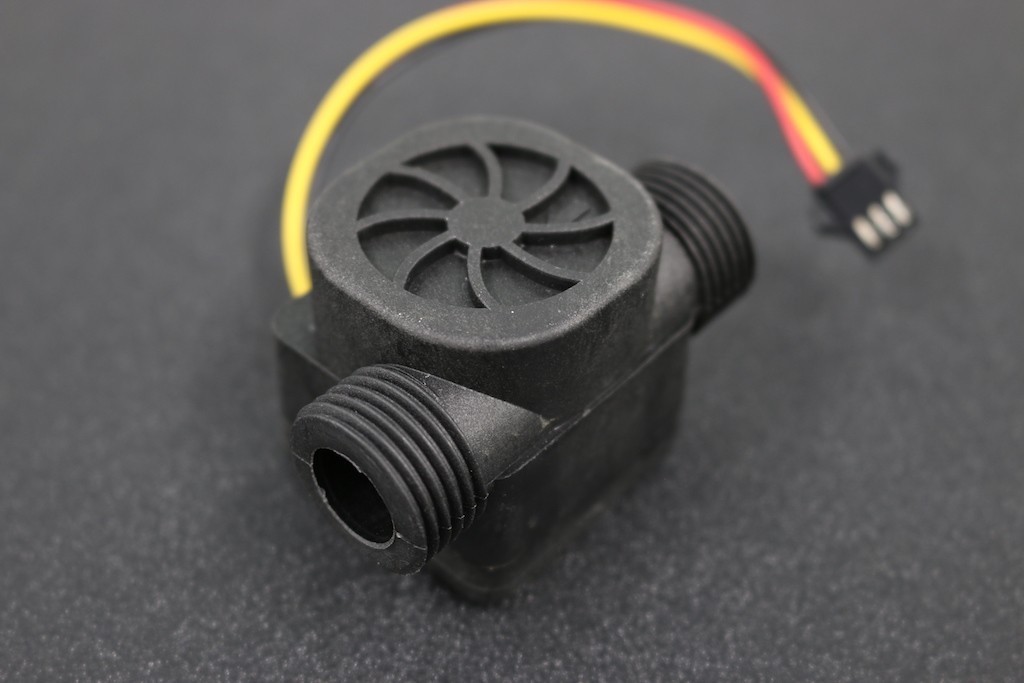

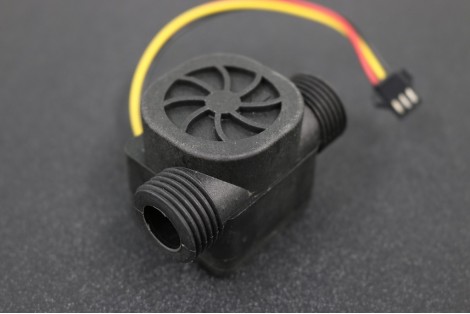

SABOCN SBS-HZ Water Flow Sensor

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

Specifications

• The water flow sensor is applied for water heater, and can be used as flow switch.
• Straight structure, nylon and glass fiber made, waterproof and explosion proof, heat and cold resistant
• Portable size and light weight, easy to install
• With stainless steel ball inside of the impeller, wear proof
• Three wire connection: Red for positive, black for negative, yellow for pulse signal
• Maximum water pressure: 1.75MPa
• Working range: 1 30L/min
• Size: Approx. 5.6*3.5*3.5cm (L*W*H)
• External diameter: 1.9cm
• Inner diameter: 1.1cm
• Cable length: 10.5cm
• Color: Black
