ZB600

WSM0042

New product

14,300 Ks

More info

ZigBee mother board, provides I/O expansion connectors and various interfaces

Overview

ZB600 is a ZigBee mother board that features expansion connectors for connecting ZigBee module and accessories. ZB600 provides an easy way to set up ZigBee development system.


ZB600 Features

  • Onboard battery holder, multi power supplies are available
  • All the IOs are accessible for easy expansion
  • Integrates CP2102 for debugging
  • LEDs and user keys
  • Onboard sensor interface, supports connecting various sensors

What's on the ZB600

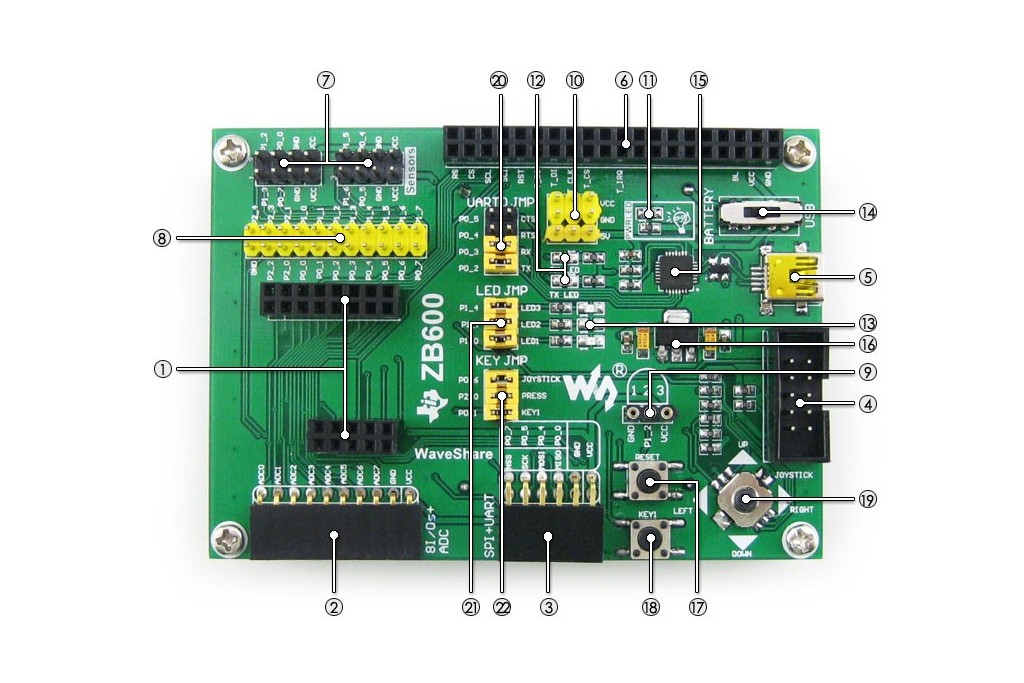

ZigBee development board on board resource
  1. ZigBee module connector: for easily connecting ZigBee modules
  2. 8I/Os+ADC interface
  3. SPI+UART interface
  4. Debugging interface
  5. USB interface: USB to UART via the onboard convertor CP2102
  6. LCD interface
  7. Sensor interface: for connecting sensors like Temperature sensor, Humidity sensor, Gas sensor, or Flame sensor, etc.
  8. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion
  9. ONE-WIRE interface
  10. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  11. Power indicator
  12. Serial port RX/TX indicator
  13. User LEDs
  14. Power switch
  15. CP2102
  16. AMS1117-3.3
  17. Reset button
  18. User key
  19. Joystick: five positions
  20. UART0 jumper
  21. User LED jumper
  22. User key and Joystick jumper

Photos

ZigBee mother board

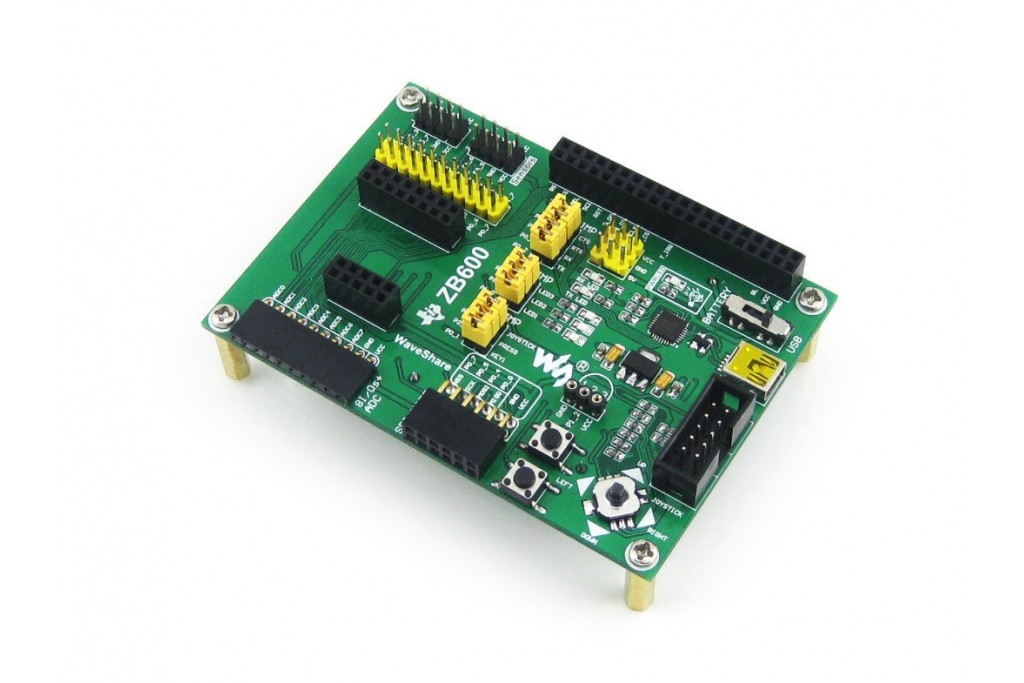

ZB600 ZigBee mother board
ZigBee mother board

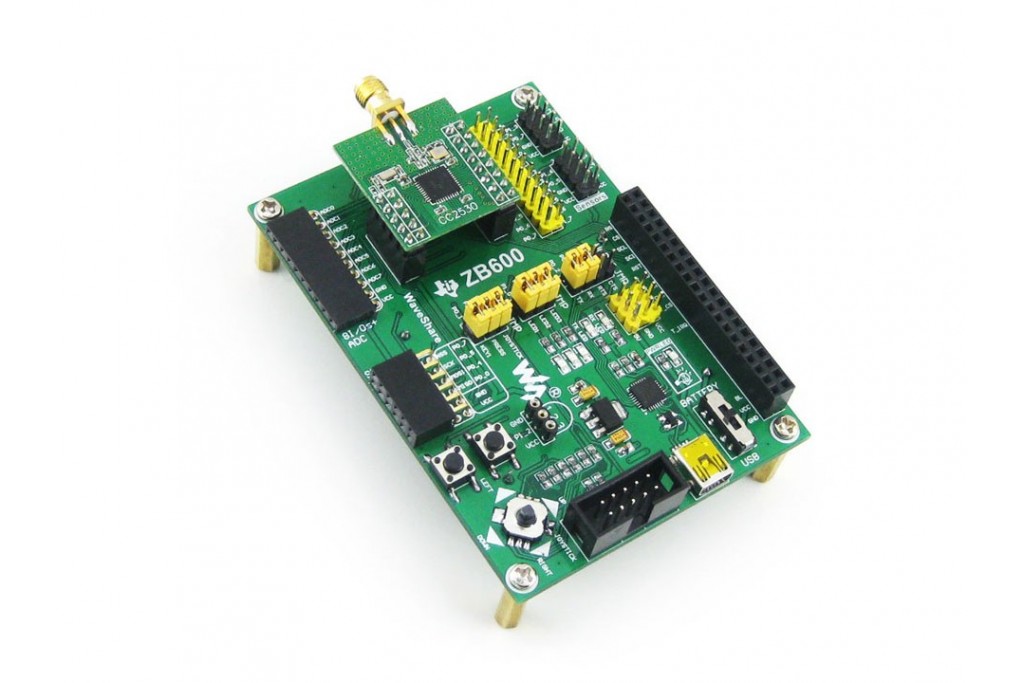

Connecting with ZigBee module Core2530
ZigBee mother board
Connecting with ZigBee module Core2530
ZigBee mother board
Connecting with ZigBee module Core2530
ZigBee mother board

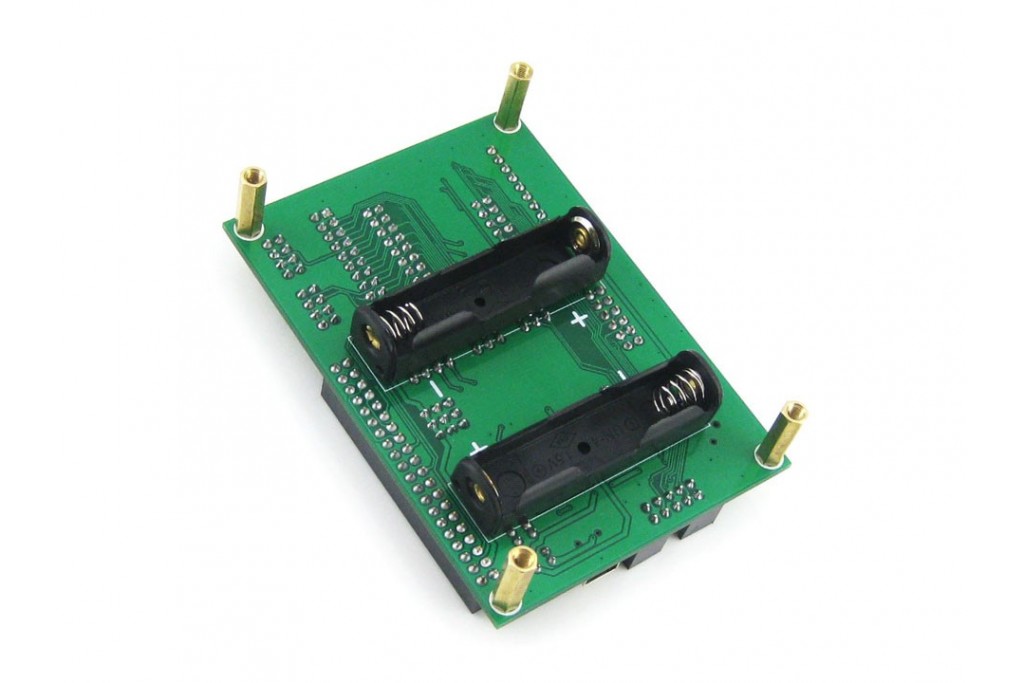

ZB600 ZigBee mother board back view
ZigBee mother board
Connecting with ZigBee module XCore2530
ZigBee mother board
Connecting with ZigBee module XCore2530
ZigBee mother board
Connecting with ZigBee module XCore2530

Note: module and accessories in the photos are NOT included in the price.




Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/ZB600
