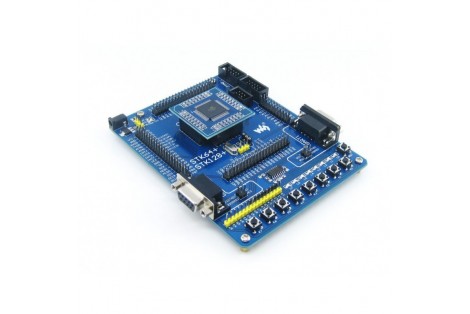

The STK64+ is a complete, cost-effective development board for the ATmega64. It is designed to give designers a quick start to develop code on ATmega64 MCU and makes them develope prototype device easily.
The ATmega64 chip is mounted on a device board, which can be separated from the mother board. Hence, easily changing MCU is supported. The ATmega64 chip is in TQFP64 package and will randomly be ATmega64-16AU or ATmega64L-8AU or ATmega64A-AU.
The STK64+ Standard package comes with an ATmega64 device board, while the STK64+ Premium package comes with the standard package, an additional spare ATmega64 device board, and an Experiment Fittings Pack.

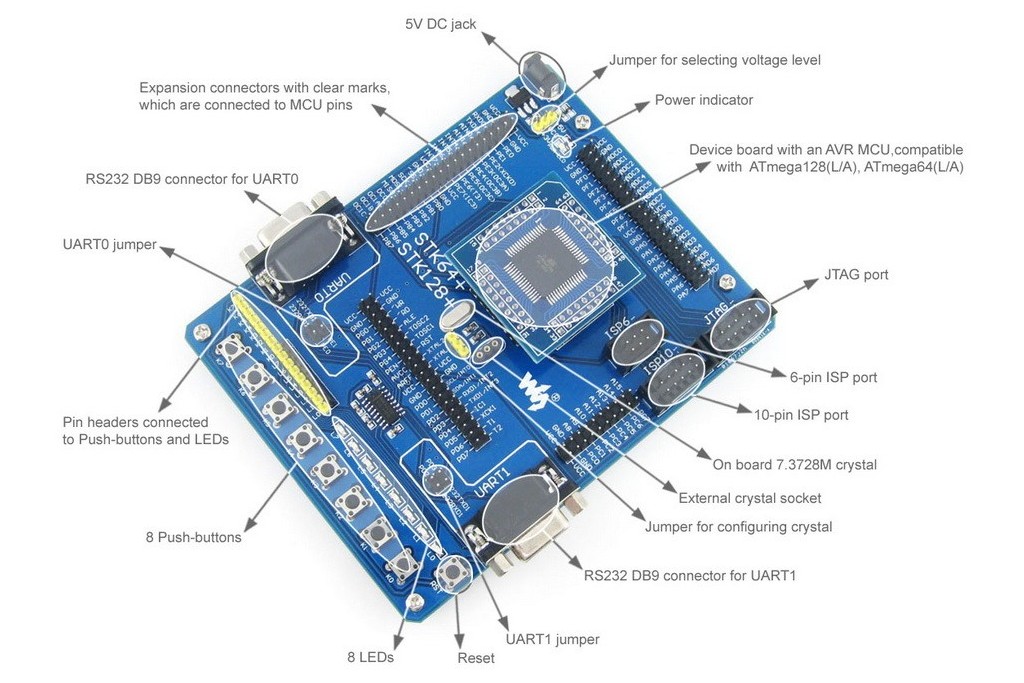

|The STK64+ houses JTAG and ISP headers for connecting a debugger or programmer. The header pinouts are shown in the figures below.|
Figure 1. JTAG header pinout
Figure 2. 10-pin ISP header pinout
Figure 3. 6-pin ISP header pinout
