Open3S500E Standard, XILINX Development Board

WSD0036

New product

More info

Description

FPGA development board designed for XILINX Spartan-3E series, features the XC3S500E onboard, and integrates various standard interfaces, pretty easy for peripheral expansions.

XC3S500E development board

Overview

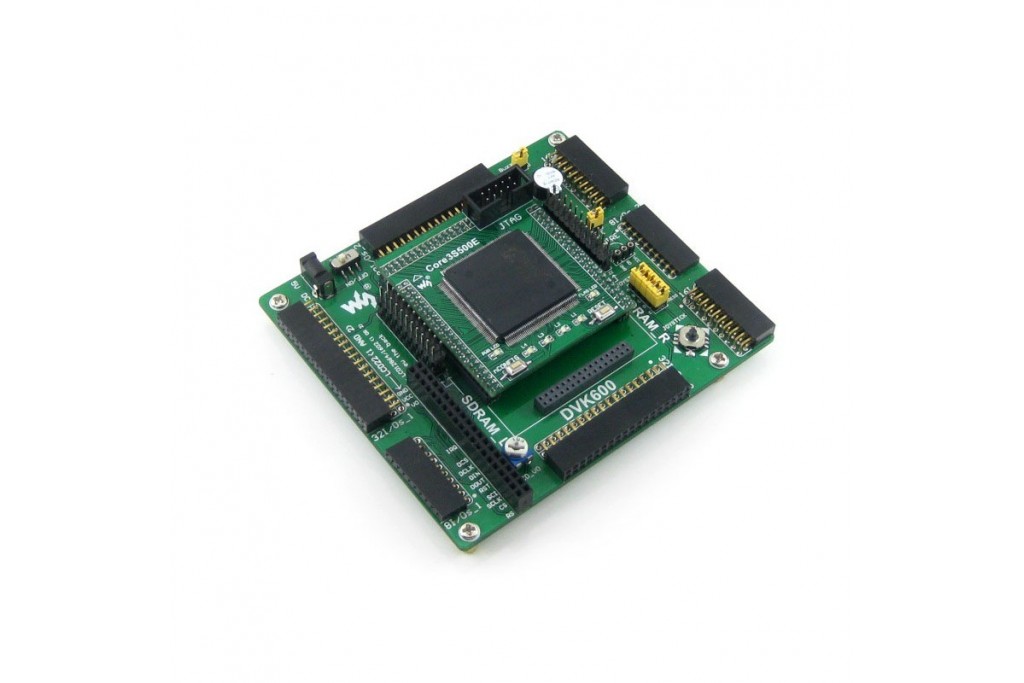

Open3S500E is an FPGA development board that consists of the mother board DVK600 and the FPGA core board Core3S500E.

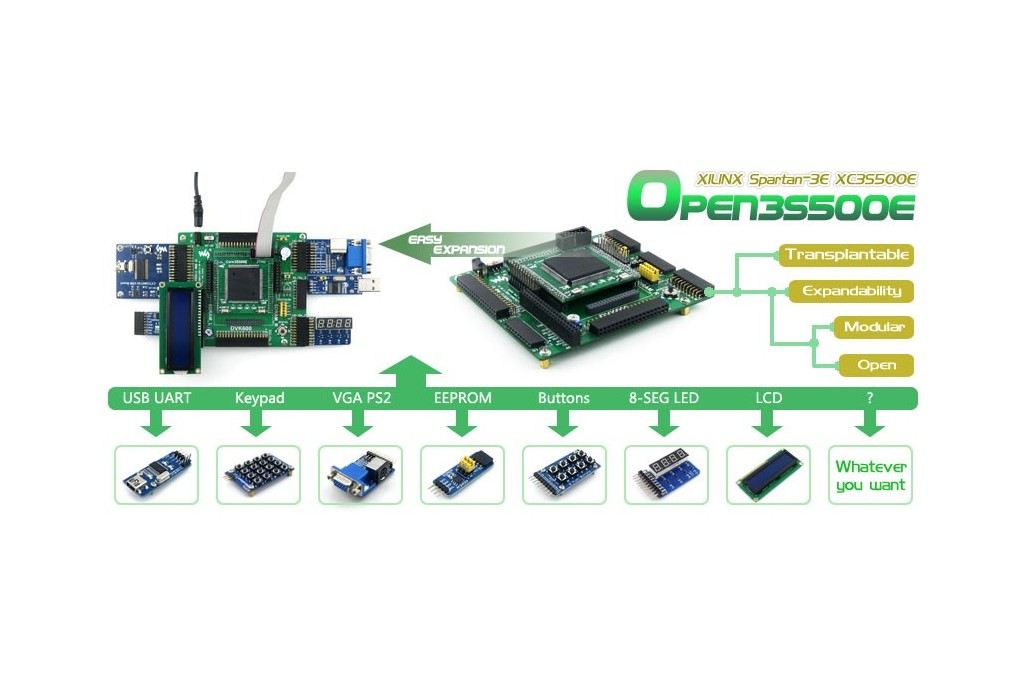

Open3S500E supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with XILINX Spartan-3E series FPGA devices.

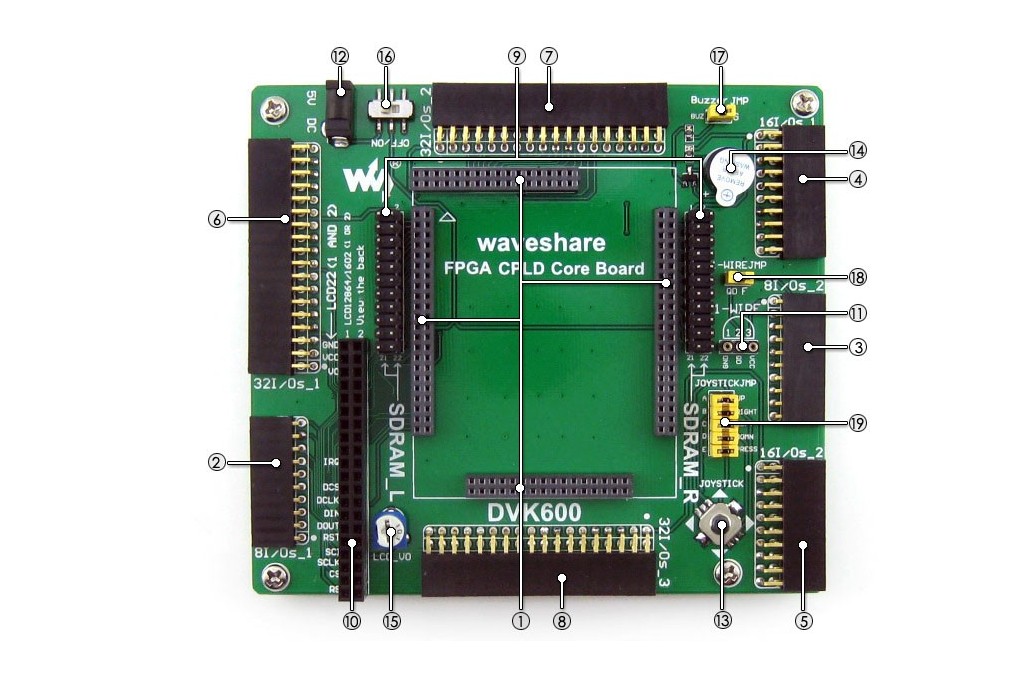

What's on the mother board

FPGA CPLD development board on board resource
  1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
  2. 8I/Os_1 interface, for connecting accessory boards/modules
  3. 8I/Os_2 interface, for connecting accessory boards/modules
  4. 16I/Os_1 interface, for connecting accessory boards/modules
  5. 16I/Os_2 interface, for connecting accessory boards/modules
  6. 32I/Os_1 interface, for connecting accessory boards/modules
  7. 32I/Os_2 interface, for connecting accessory boards/modules
  8. 32I/Os_3 interface, for connecting accessory boards/modules

All the I/O interfaces above:

  • capable of being simulated as USART, I2C, SPI, PS/2, etc.
  • capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.
  1. SDRAM interface
    • for connecting SDRAM accessory board
    • also works as FPGA CPLD pins expansion connectors
  2. LCD interface, for connecting LCD22, LCD12864, LCD1602
  3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  4. 5V DC jack
  5. Joystick: five positions
  6. Buzzer
  7. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
  8. Power switch
  9. Buzzer jumper
  10. ONE-WIRE jumper
  11. Joystick jumper

For jumpers 17-19:

  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires

The DVK600 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board. For instance, while connecting to Core3S500E/CoreEP2C8, the '⑧ 32I/Os_3' is Not-Connected.

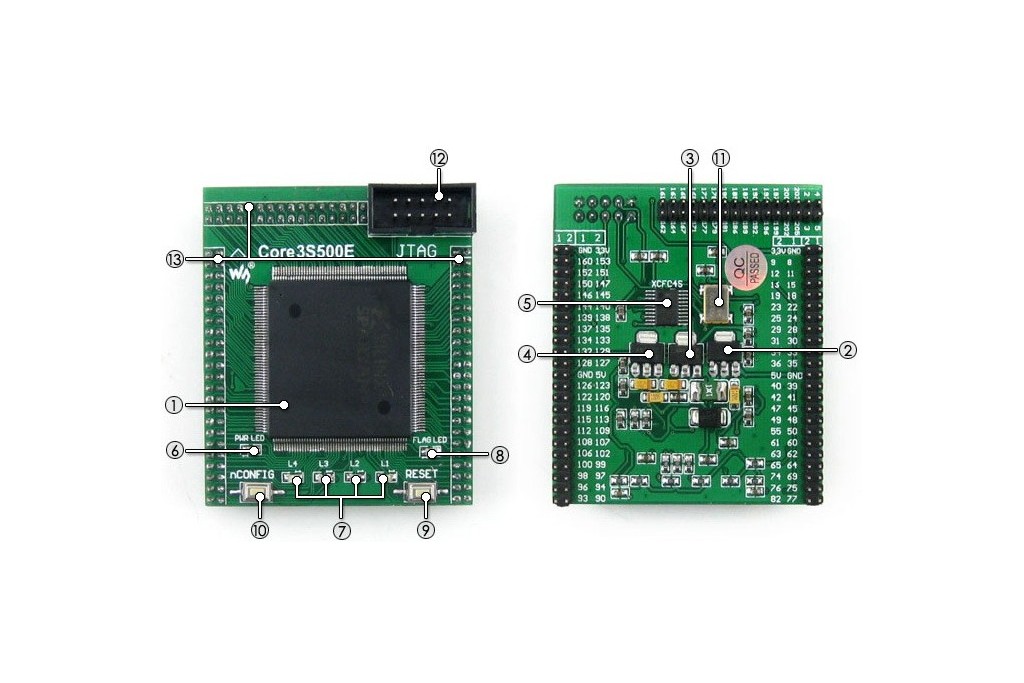

What's on the Core3S500E

XC3S500E core board on board resource
  1. XC3S500E:the XILINX Spartan-3E FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V~3.3V
    • Package: QFP208
    • I/Os: 116
    • LEs: 500K
    • RAM: 360kb
    • DCMs: 4
    • Debugging/Programming: supports JTAG
  2. AMS1117-3.3, 3.3V voltage regulator
  3. AMS1117-2.5, 2.5V voltage regulator
  4. AMS1117-1.2, 1.2V voltage regulator
  5. XCF04S, onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. FPGA initialization indicator
  9. Reset button
  10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  11. 50M active crystal oscillator
  12. JTAG interface: for debugging/programming
  13. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

Photos

FPGA Development Board
Open3S500E Development Board
FPGA Development Board
Open3S500E Development Board
FPGA Development Board
Open3S500E Development Board back view
FPGA Development Board
Mother Board DVK600
FPGA Core Board
FPGA core board Core3S500E
FPGA Core Board
FPGA core board Core3S500E
FPGA Development Board
Connecting to various peripherals
LCD12864
Connecting to LCD12864
LCD1602
Connecting to LCD1602
RS232 Board
Connecting to RS232 Board
PL2303 USB UART Board mini
Connecting to USB UART Board
8 SEG LED Board
Connecting to 8 SEG LED Board
8 Push Buttons
Connecting to 8 Push Buttons
4x4 Keypad
Connecting to 4x4 Keypad
AT24CXX EEPROM Board
Connecting to EEPROM Board
Multi peripherals cascading
Multi peripherals connected to one interface
DataFlash Board
Connecting to DataFlash Board
CY7C68013A USB Board
Connecting to CY7C68013A USB Board
VGA PS2 Board
Connecting to VGA PS2 Board
Connecting to any accessory board
Connecting to any accessory board you need

Note:
The Open3S500E does NOT integrate any programming/debugging function, a programmer/debugger is required.
Accessory boards in the photo are NOT included in the Open3S500E Standard Package.


Examples

The Open3S500E FPGA development board comes with various examples codes for the supported peripherals, which give you a quick start to develop your own application.

PeripheralDescriptionInterfaceVerilogVHDL
AT24CXX EEPROM I2C Y Y
FM24CXX FRAM I2C Y Y
AT45DBXX DATAFLASH SPI Y
PCF8563 RTC I2C Y
PCF8591 4xAD, 1xDA I2C Y
DS18B20 Temperature sensor 1-WIRE Y
SP3232 Serial communication UART Y Y
SP3485 Serial communication UART Y Y
PL2303 USB TO UART UART Y Y
CY7C68013A USB DEVICE I/Os   Y
Buzzer Sound device 1I/O (PWM) Y Y
PS/2 keyboard Input device PS/2 Y Y
Single buttons Input device ---- Y Y
4x4 keypad Input device 8I/Os Y Y
Joystick Input device 5I/Os Y Y
LED Display device ---- Y Y
8 SEG LED Display device 13I/Os Y Y
VGA monitor Display device VGA Y Y
Character LCD Display device 11I/Os Y Y
Graphic LCD Display device 11I/Os Y Y

Debugging/Programming Interface

The Open3S500E FPGA development board integrates JTAG interface for programming/debugging.

JTAG header pinout

Development Resources

The Open3S500E FPGA development board comes with a User Guide CD including development resources listed as below:

  • Related software (Xilinx ISE 12 - supports Winxp/Win7, doesn't support Win8)
  • Demo code (Verilog, VHDL)
  • Schematic (PDF)
  • FPGA development documentations

Wiki: www.waveshare.com/wiki/Open3S500E
