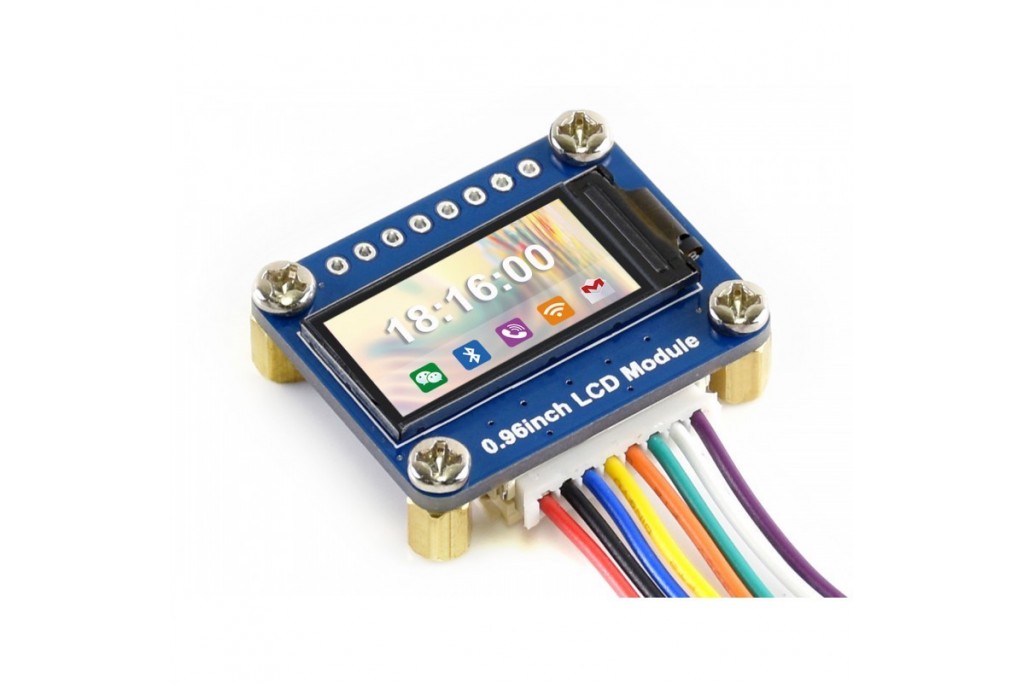

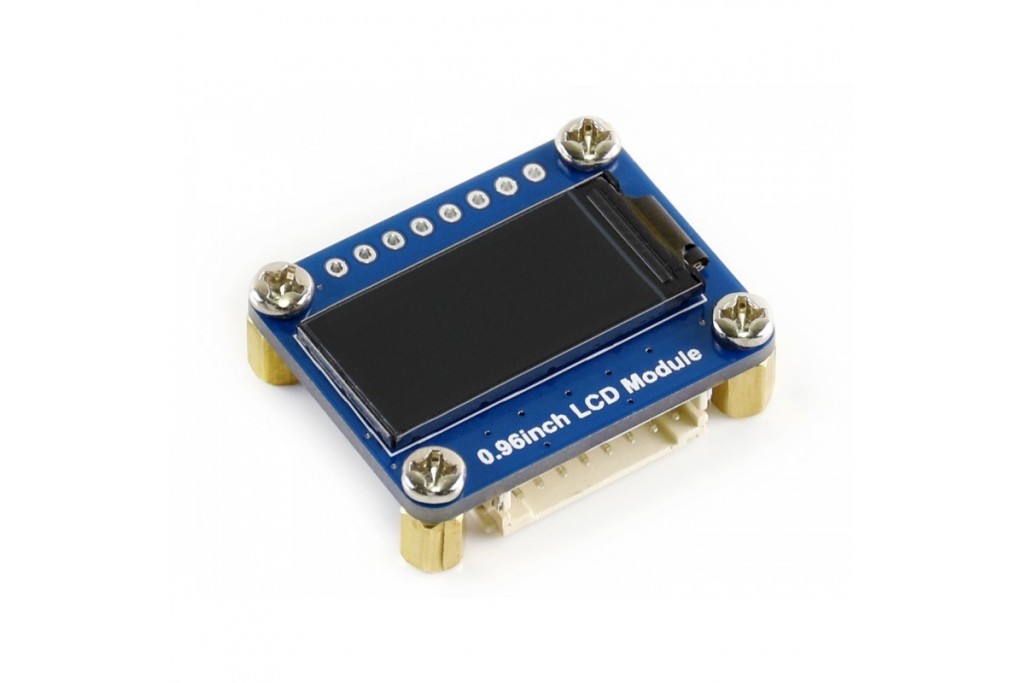

0.96inch LCD Module IC Test Board

View larger

Previous

Next

160x80, General 0.96inch LCD display Module, IPS, HD

Reference: WSM0128

Condition: New product

Send to a friend

Send to a friend

160x80, General 0.96inch LCD display Module, IPS, HD

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

0.96inch LCD display Module, IPS screen, 160x80 HD resolution, SPI interface

Overview

This is a general LCD display Module, IPS screen, 0.96inch diagonal, 160x80 HD resolution, with embedded controller, communicating via SPI interface.

Features

SPI interface, requires minimum GPIO for controlling
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 160x80
Backlight: LED
Operating voltage: 3.3V

Interface

SYMBOL	DESCRIPTION
VCC	Power (3.3V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Dimensions

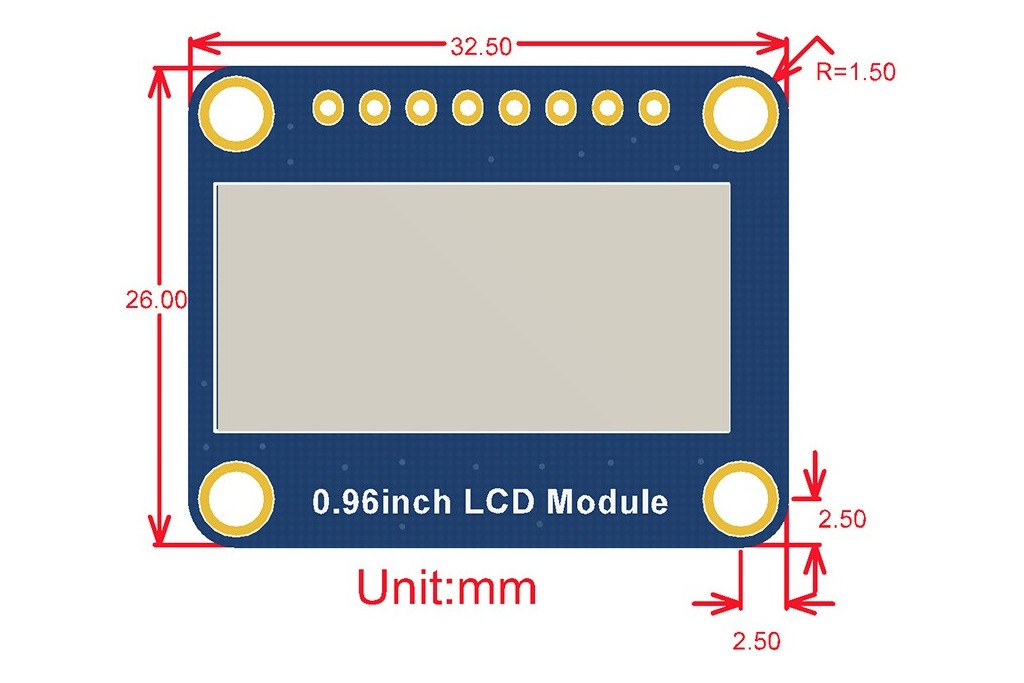

0.96inch LCD Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/0.96inch_LCD_Module

Selection Guide

Part Number	Type	Color	Resolution	Display Size (mmxmm)	Interfaces	Driver	Dimension (mmxmm)	Pinheader
0.91inch OLED Module	OLED	White	128x32	22.38x5.58	I2C	SSD1306	36.0x12.5	PH2.0 connector
0.95inch RGB OLED (A)	OLED	65K colorful	96x64	20.14x13.42	SPI(4-wire SPI)	SSD1331	31.7x37.0	angled/horizontal
0.95inch RGB OLED (B)	OLED	65K colorful	96x64	20.14x13.42	SPI(4-wire SPI)	SSD1331	31.7x37.0	straight/vertical
0.96inch LCD Module	IPS	65K colorful	160x80	21.70x10.80	4-wire SPI	ST7735S	32.5x26.0	PH2.0 connector
0.96inch OLED (A)	OLED	1/4 yellow section, 3/4 blue section	128x64	21.7x11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0x33.5	angled/horizontal
0.96inch OLED (B)	OLED	1/4 yellow section, 3/4 blue section	128x64	21.7x11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0x33.5	straight/vertical
1.3inch LCD Module	IPS	65K colorful	240x240	23.40x23.40	4-wire SPI	ST7789	45.0x31.0	PH2.0 connector
1.3inch OLED (A)	OLED	Blue	128x64	29.42x14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5x37.5	angled/horizontal
1.3inch OLED (B)	OLED	Blue	128x64	29.42x14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5x37.5	straight/vertical
1.5inch OLED Module	OLED	White (16 gray scale)	128x128	26.86x26.86	4-wire SPI, I2C	SSD1327	44.5x37.0	PH2.0 connector
1.5inch RGB OLED Module	OLED	65K colorful	128x128	26.86x26.86	3-wire SPI, 4-wire SPI	SSD1351	44.5x37.0	PH2.0 connector
1.8inch LCD Module	TFT	65K colorful	160x128	34.50x28.30	4-wire SPI	ST7735S	56.5x34.0	PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
