Stack HAT IC Test Board

WSM0174

New product

More info

Stack HAT for Raspberry Pi, stacks up to 5 HATs at once

Overview

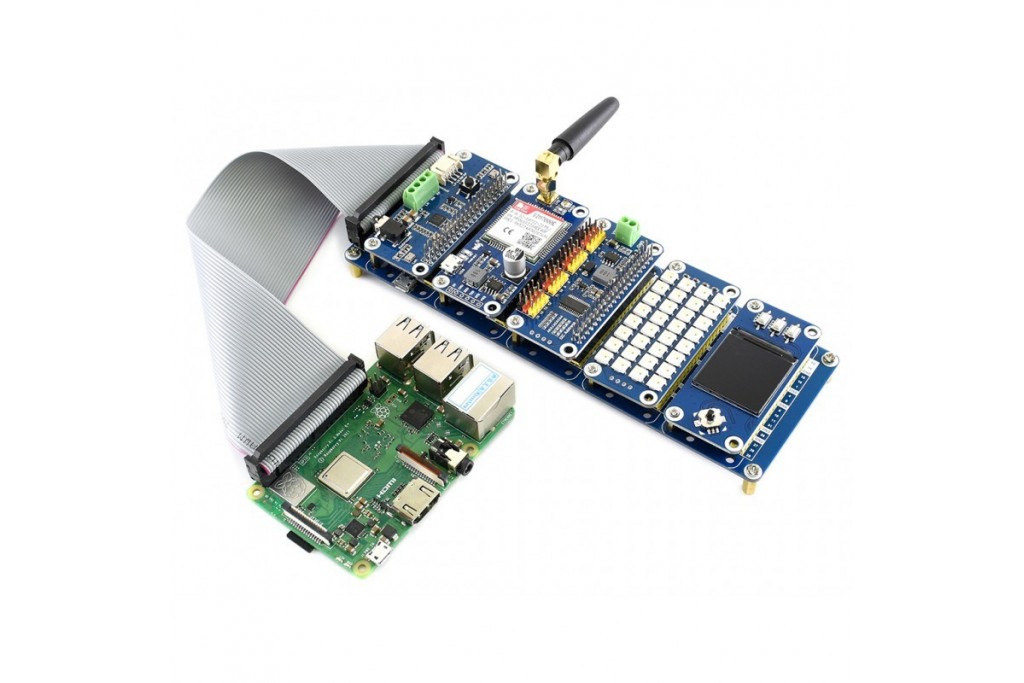

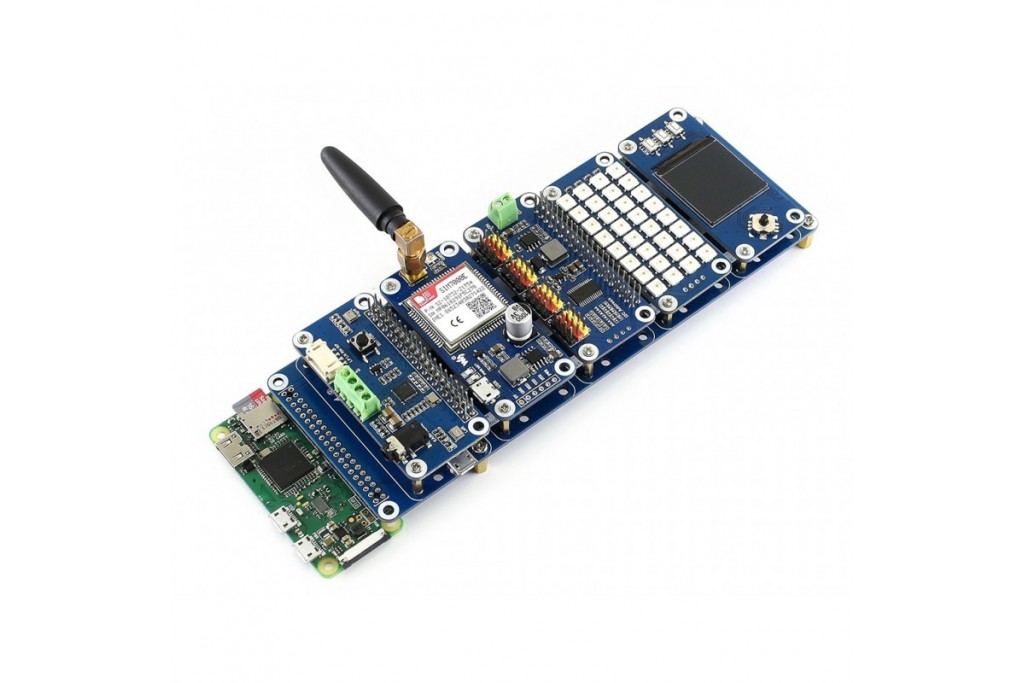

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.

Features

  • Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
  • 5 sets of 2x20 pinheaders, connect multi HATs together
  • USB external power port, provides enough power supply for multi HATs
  • Clear and descriptive pin labels for easy use
  • Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts

Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.

Specifications

  • Dimension: 183mm × 65mm
  • Mounting hole size: 3mm

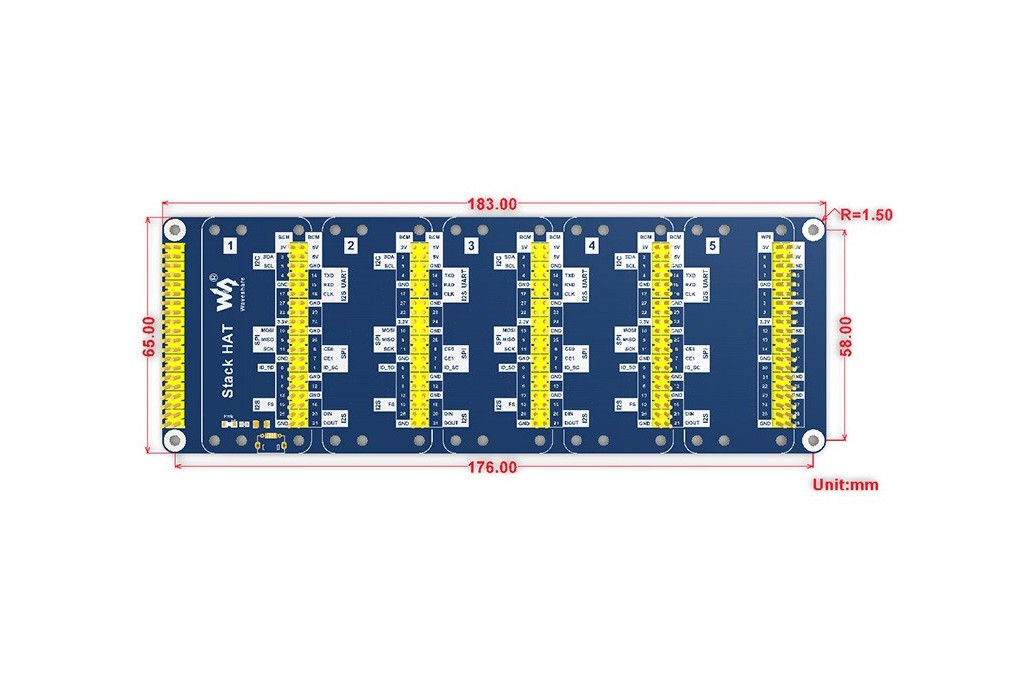

Dimension


Development Resources

Wiki : www.waveshare.com/wiki/Stack_HAT

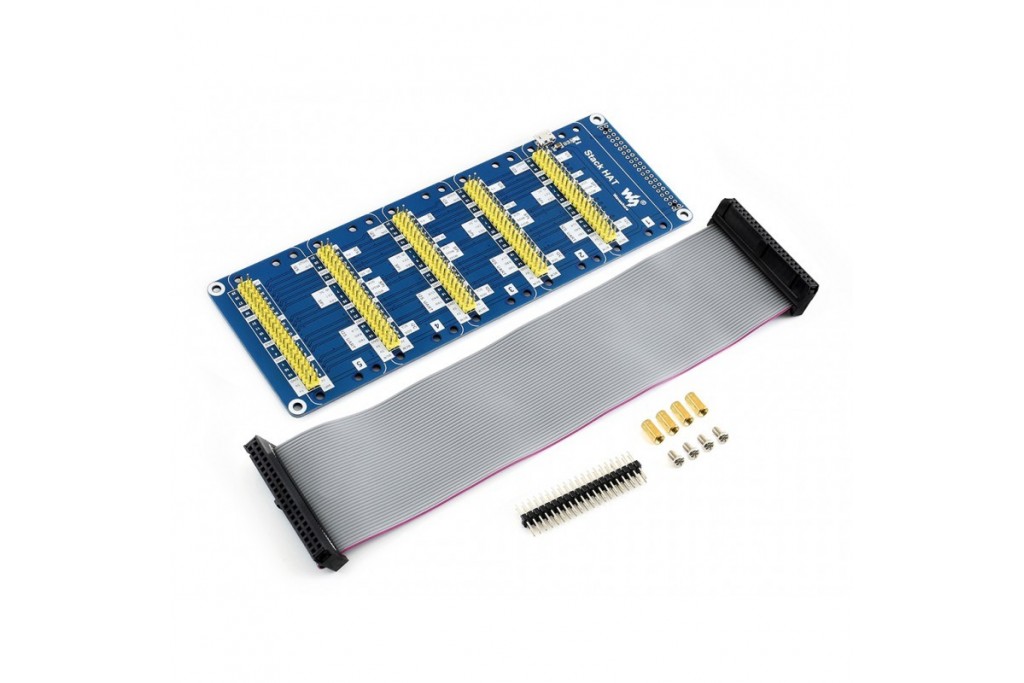

PACKAGE CONTENT

Weight: 0.083 kg

  1. Stack HAT x1
  2. Ribbon cable 40PIN x1
  3. 2x20 male pinheader x1
  4. RPi screws pack (4pcs) x1
flat-ribbon-cable-40-pin-2-54-picth-200m
