FPGA development board designed for XILINX Spartan-3E series, features the XC3S250E onboard, and integrates various standard interfaces, pretty easy for peripheral expansions.
XC3S250E development board


Open3S250E is an FPGA development board that consists of the mother board DVK601 and the FPGA core board Core3S250E.

Open3S250E supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with XILINX Spartan-3E series FPGA devices.

What's on the mother board

FPGA CPLD development board on board resource
  1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
  2. 8I/Os_1 interface, for connecting accessory boards/modules
  3. 8I/Os_2 interface, for connecting accessory boards/modules
  4. 8I/Os_3 interface, for connecting accessory boards/modules
  5. 8I/Os_4 interface, for connecting accessory boards/modules
  6. 16I/Os_1 interface, for connecting accessory boards/modules
  7. 16I/Os_2 interface, for connecting accessory boards/modules
  8. 32I/Os_1 interface, for connecting accessory boards/modules
  9. 32I/Os_2 interface, for connecting accessory boards/modules

All the I/O interfaces above:

  • capable of being simulated as USART, I2C, SPI, PS/2, etc.
  • capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.
  1. FPGA expansion connectors
    • FPGA pins are accessible on expansion connectors
    • for connecting SDRAM accessory board
  2. LCD interface, for connecting LCD22, LCD12864, LCD1602
  3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  4. Buzzer
  5. Joystick: five positions
  6. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
  7. Buzzer jumper
  8. Joystick jumper
  9. ONE-WIRE jumper

For jumpers 16-18:

  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires

The DVK601 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board. For instance, while connecting to Core3S250E, the '④ 8I/Os_3' and '⑤ 8I/Os_4' are Not-Connected.

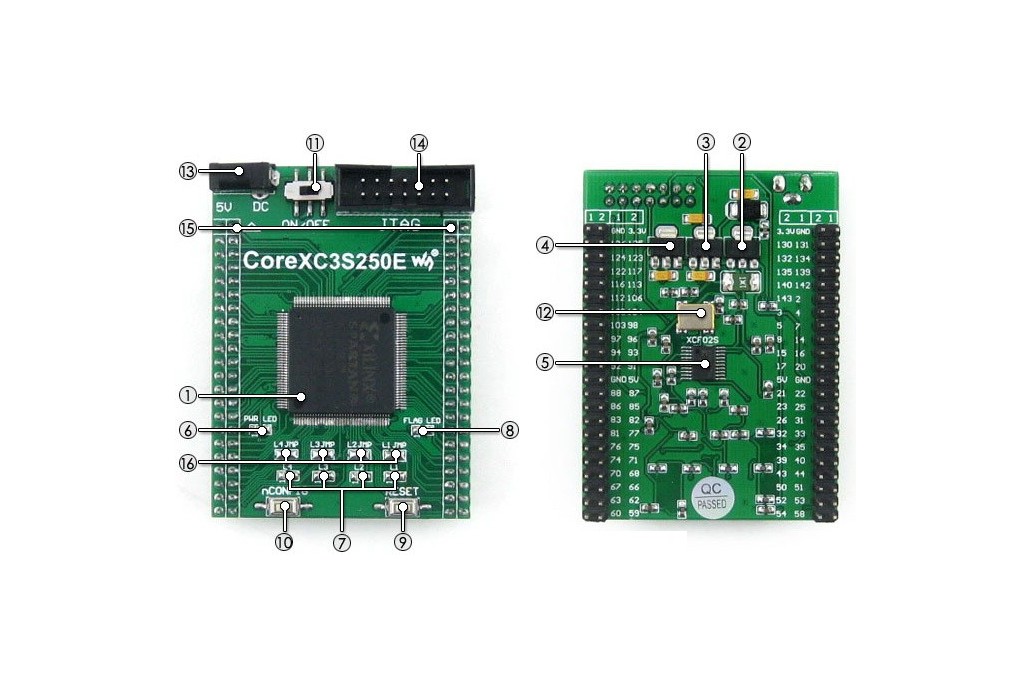

What's on the Core3S250E

XC3S250E core board on board resource
  1. XC3S250E:the XILINX Spartan-3E FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V~3.3V
    • Package: QFP144
    • I/Os: 80
    • LEs: 250K
    • RAM: 216kb
    • DCMs: 4
    • Debugging/Programming: supports JTAG
  2. AMS1117-3.3, 3.3V voltage regulator
  3. AMS1117-2.5, 2.5V voltage regulator
  4. AMS1117-1.2, 1.2V voltage regulator
  5. XCF02S, onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. FPGA initialization indicator
  9. Reset button
  10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  11. Power switch
  12. 50M active crystal oscillator
  13. 5V DC jack
  14. JTAG interface: for debugging/programming
  15. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
  16. LED jumpers


FPGA Development Board

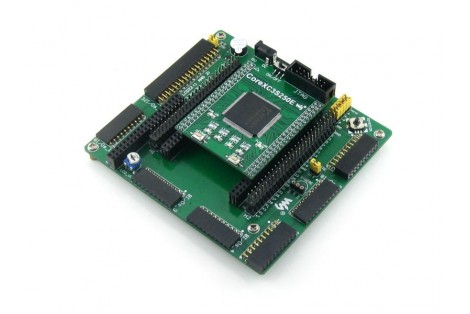

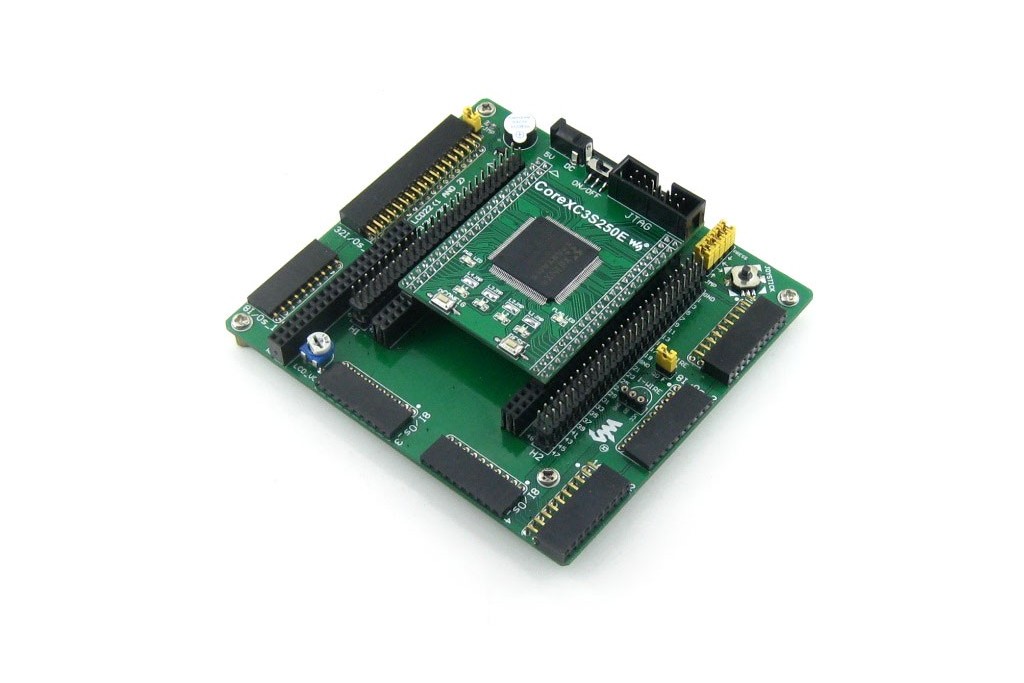

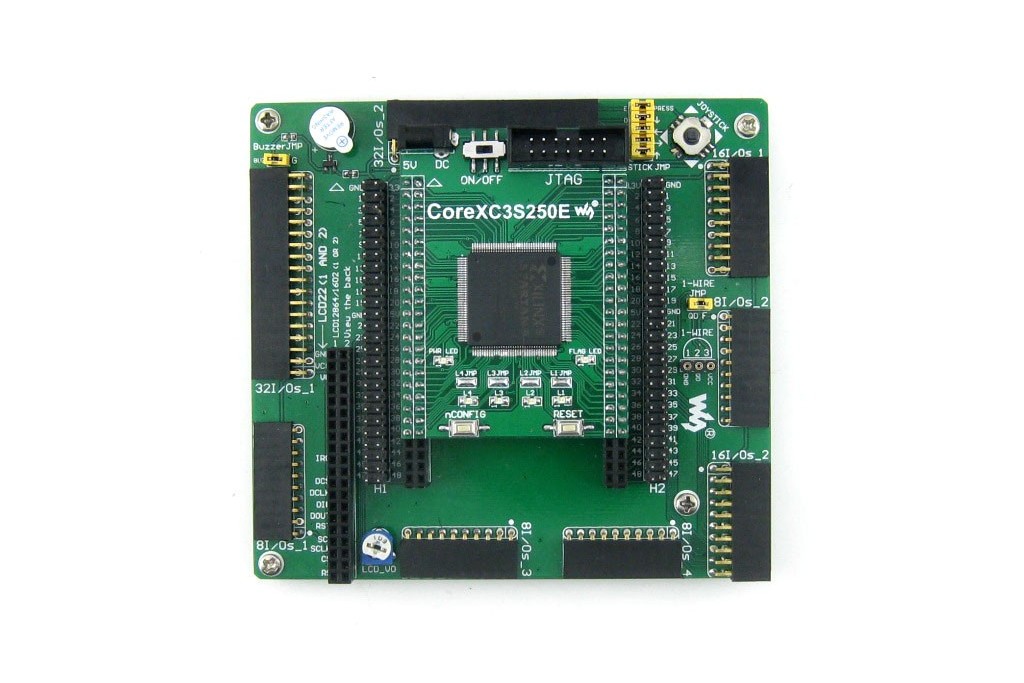

Open3S250E Development Board
FPGA Development Board
Open3S250E Development Board
FPGA Development Board

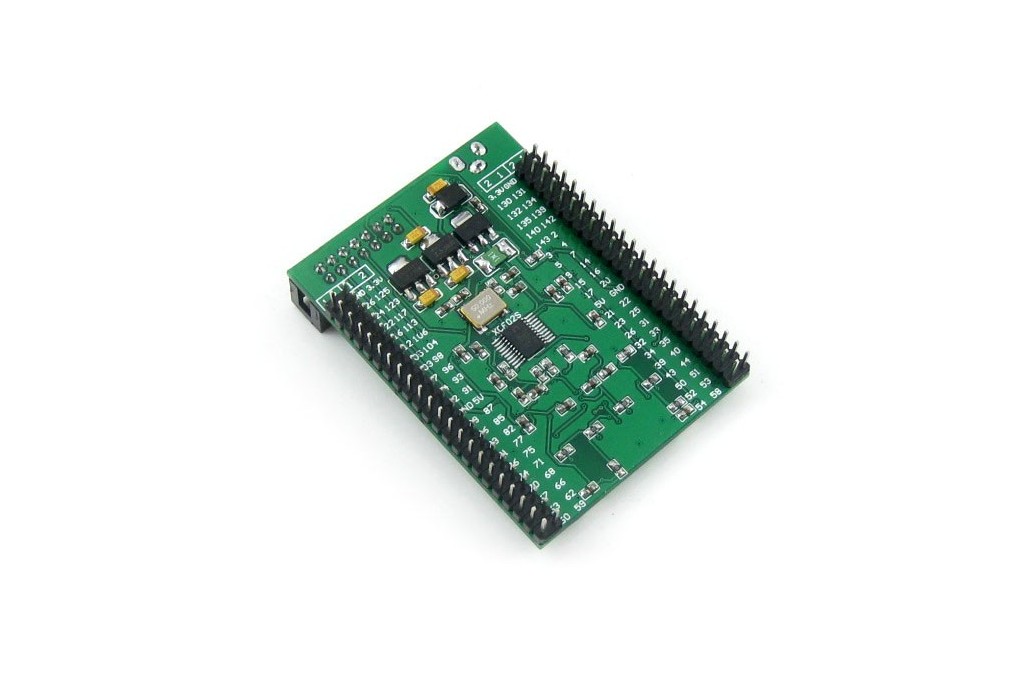

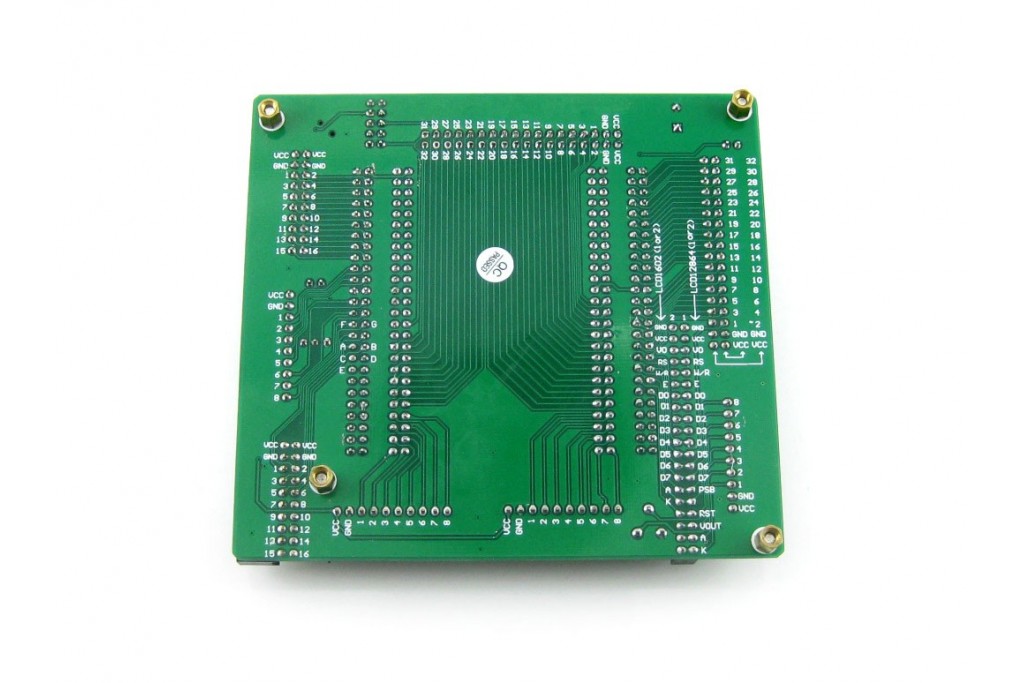

Open3S250E Development Board back view
FPGA Development Board

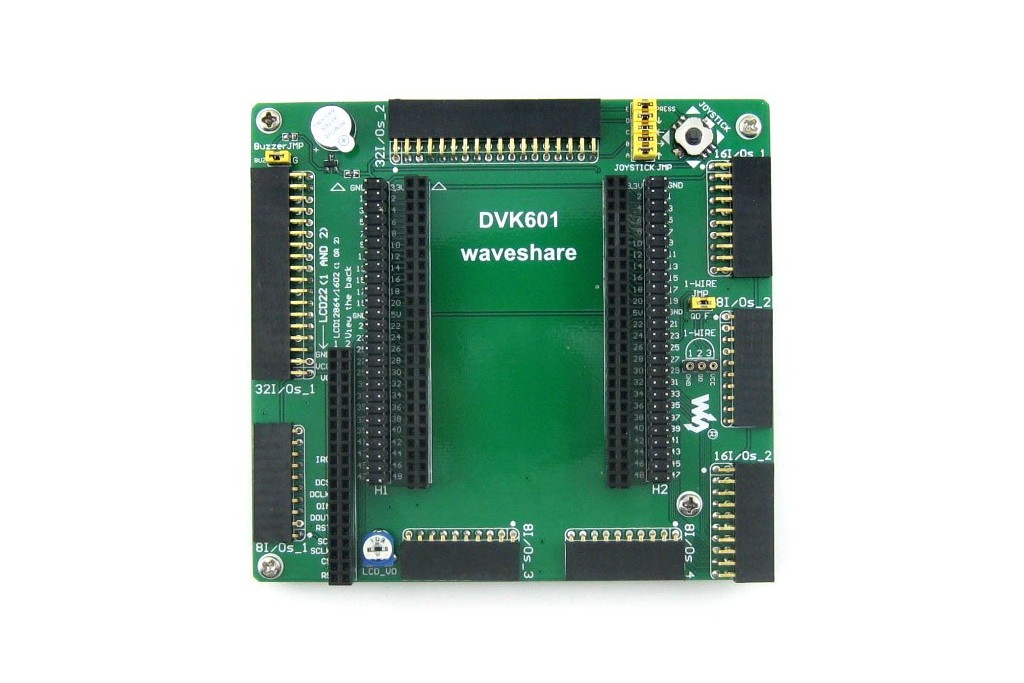

Mother Board DVK601
FPGA Core Board

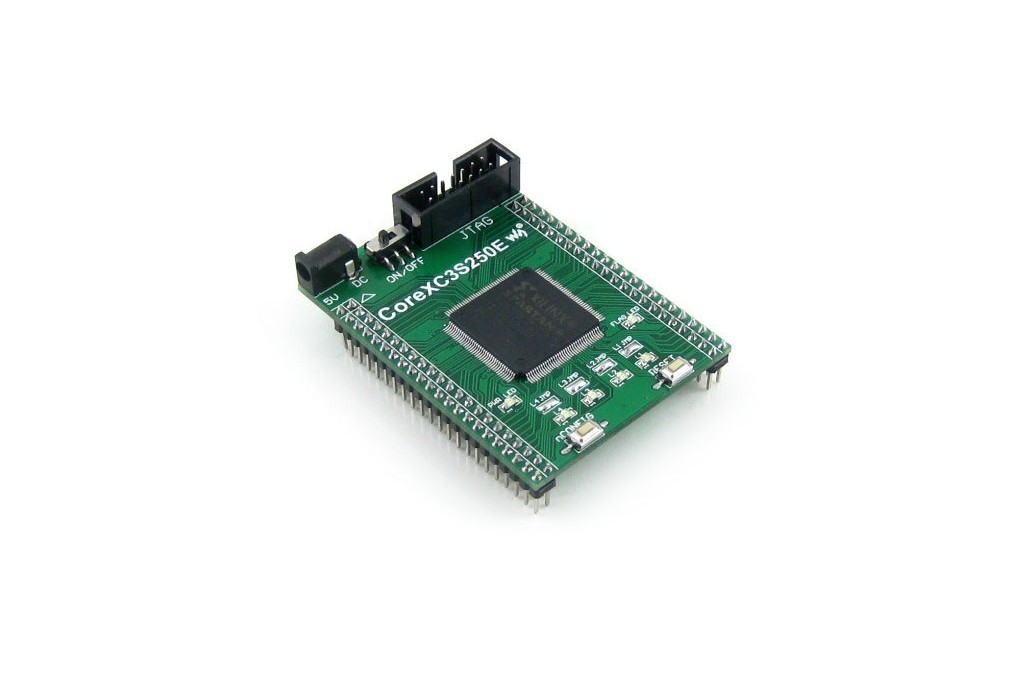

FPGA core board Core3S250E
FPGA Core Board
FPGA core board Core3S250E
FPGA Development Board
Connecting to various peripherals

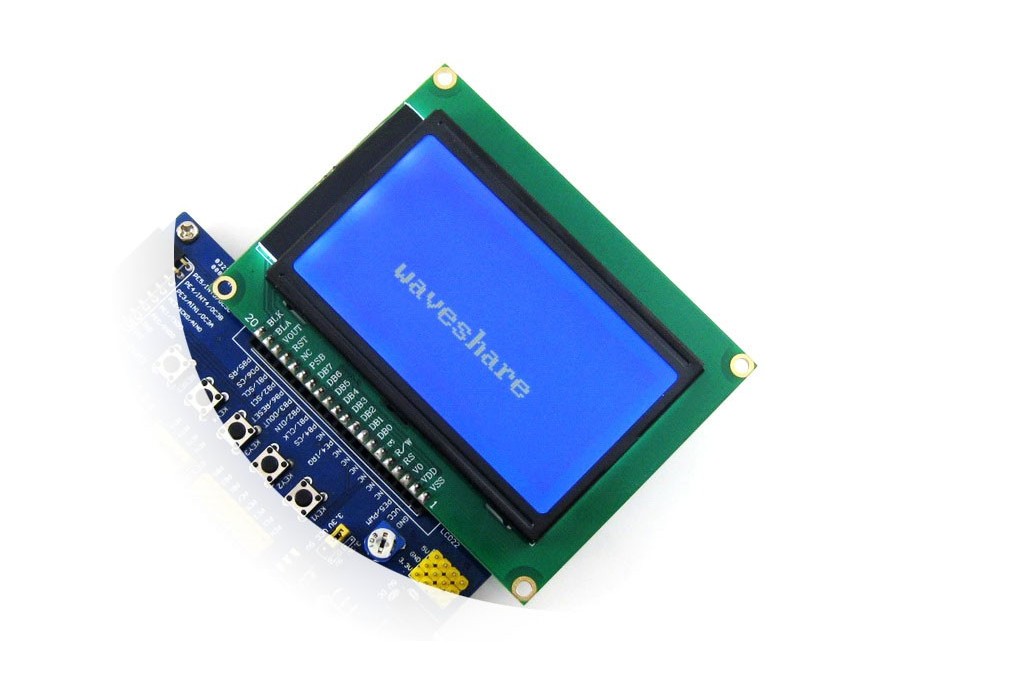

Connecting to LCD12864

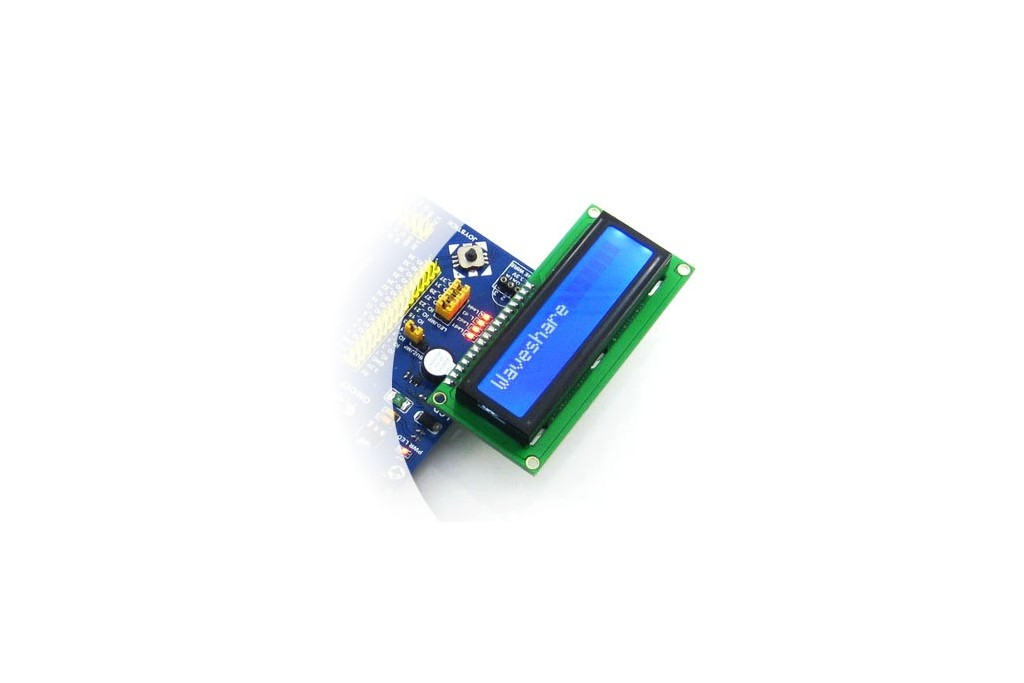

Connecting to LCD1602
RS232 Board

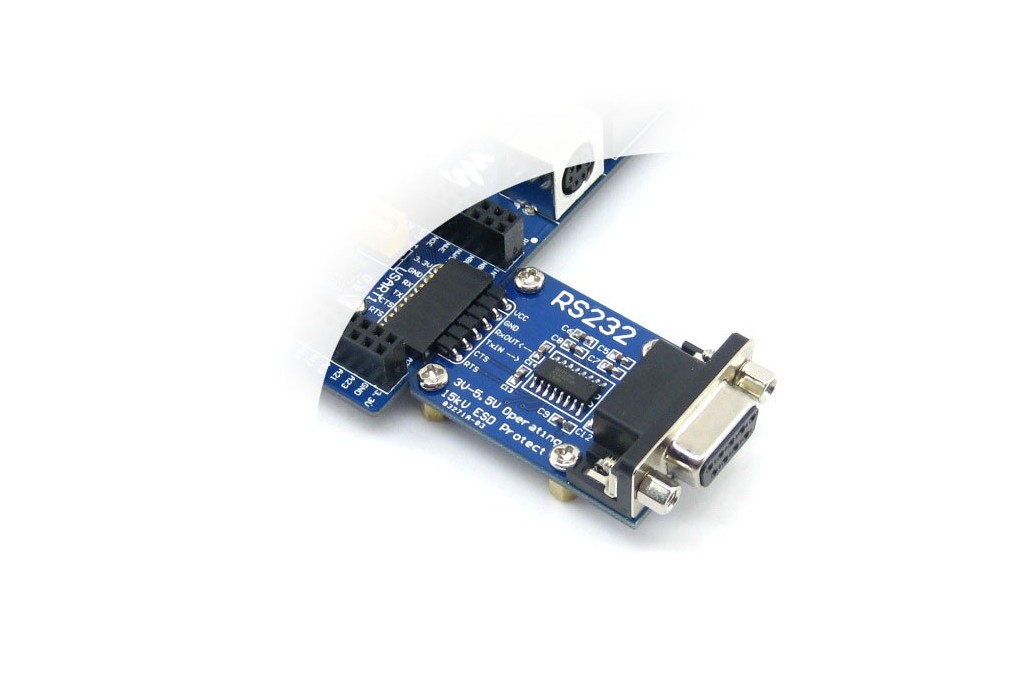

Connecting to RS232 Board

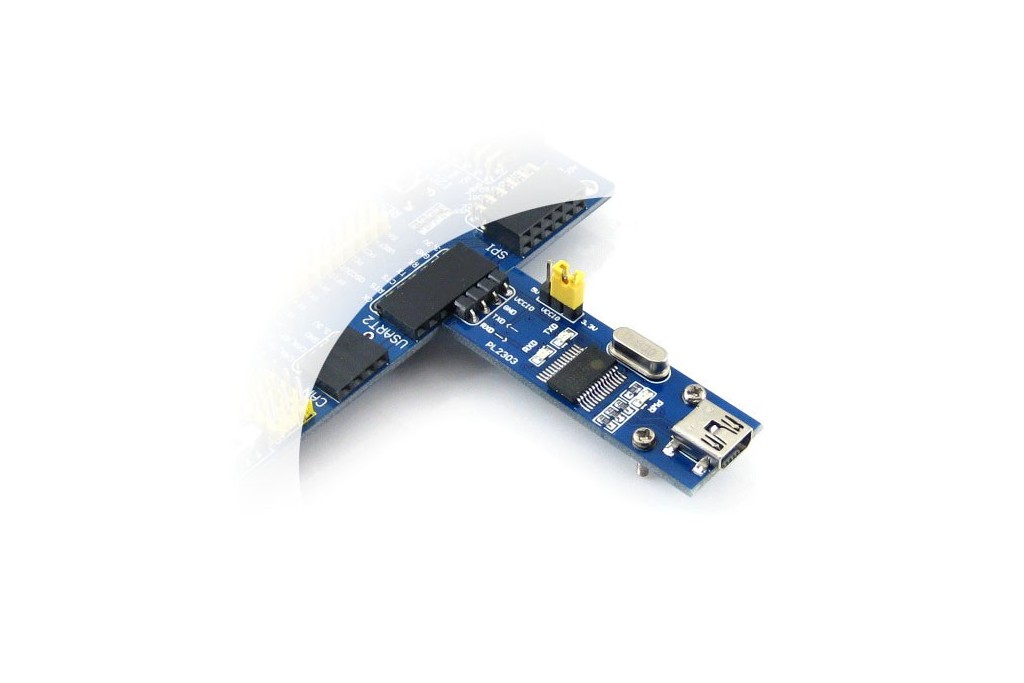

PL2303 USB UART Board mini
Connecting to USB UART Board

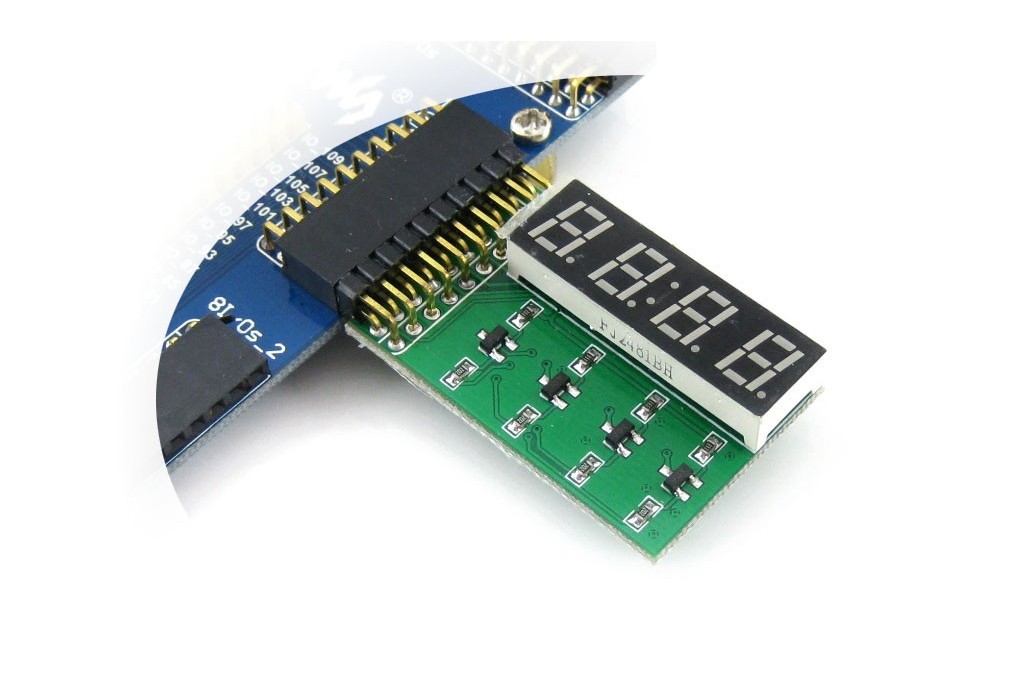

8 SEG LED Board
Connecting to 8 SEG LED Board
8 Push Buttons

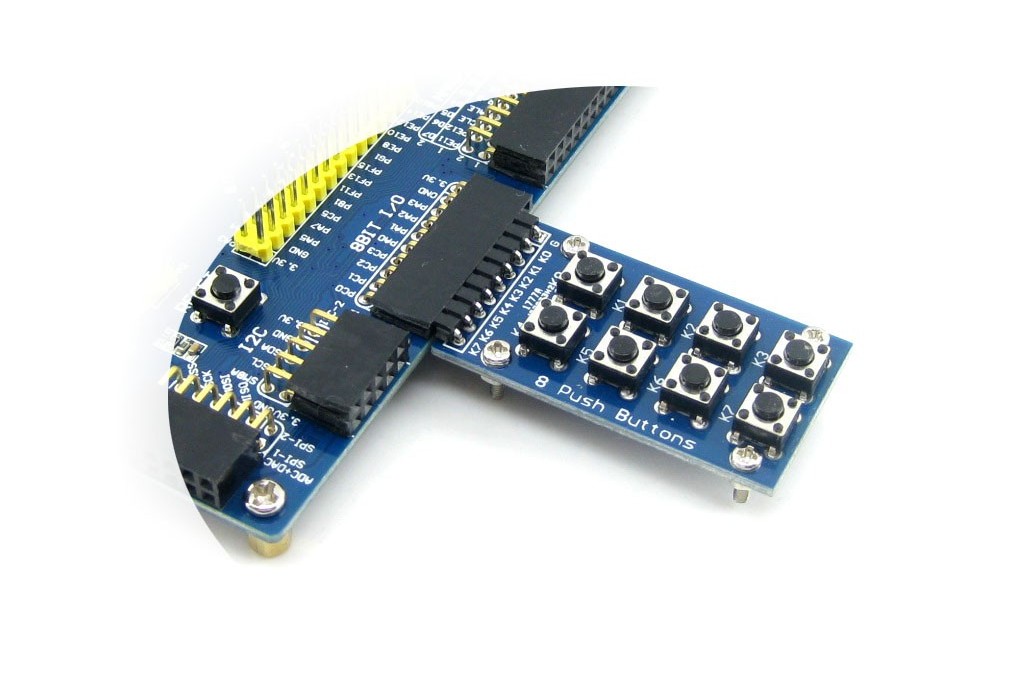

Connecting to 8 Push Buttons
4x4 Keypad
Connecting to 4x4 Keypad

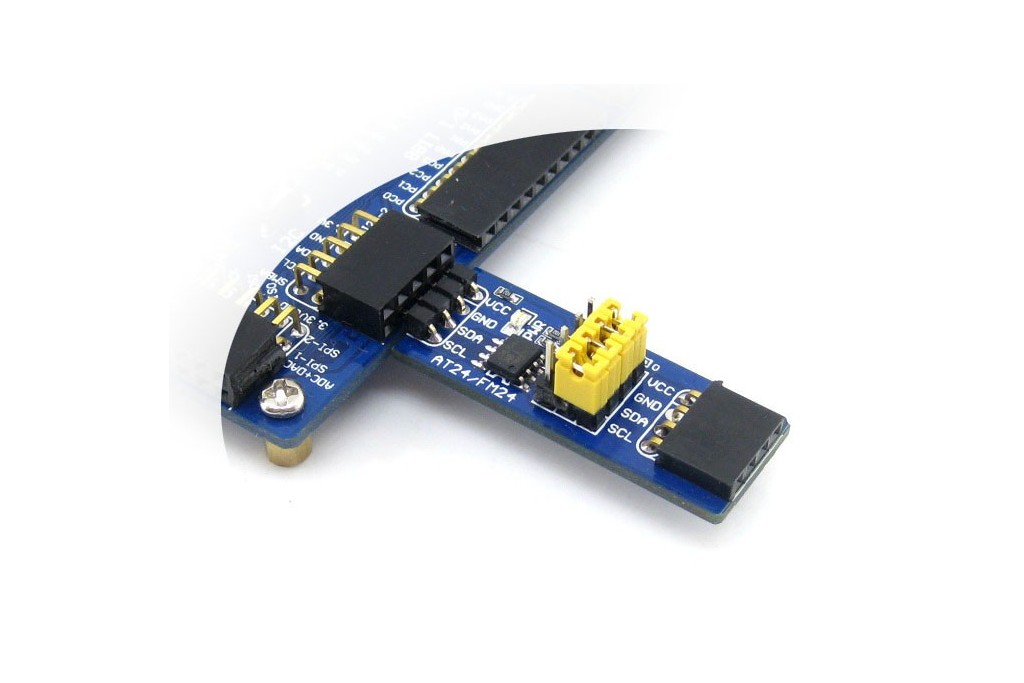

Connecting to EEPROM Board

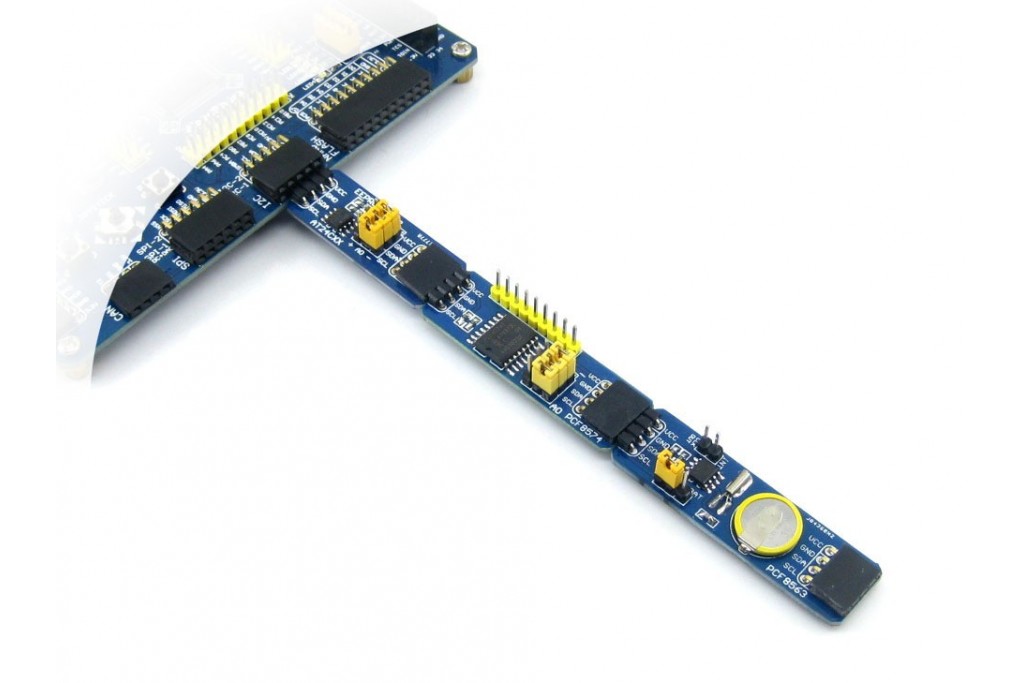

Multi peripherals cascading
Multi peripherals connected to one interface
DataFlash Board
Connecting to DataFlash Board
CY7C68013A USB Board
Connecting to CY7C68013A USB Board

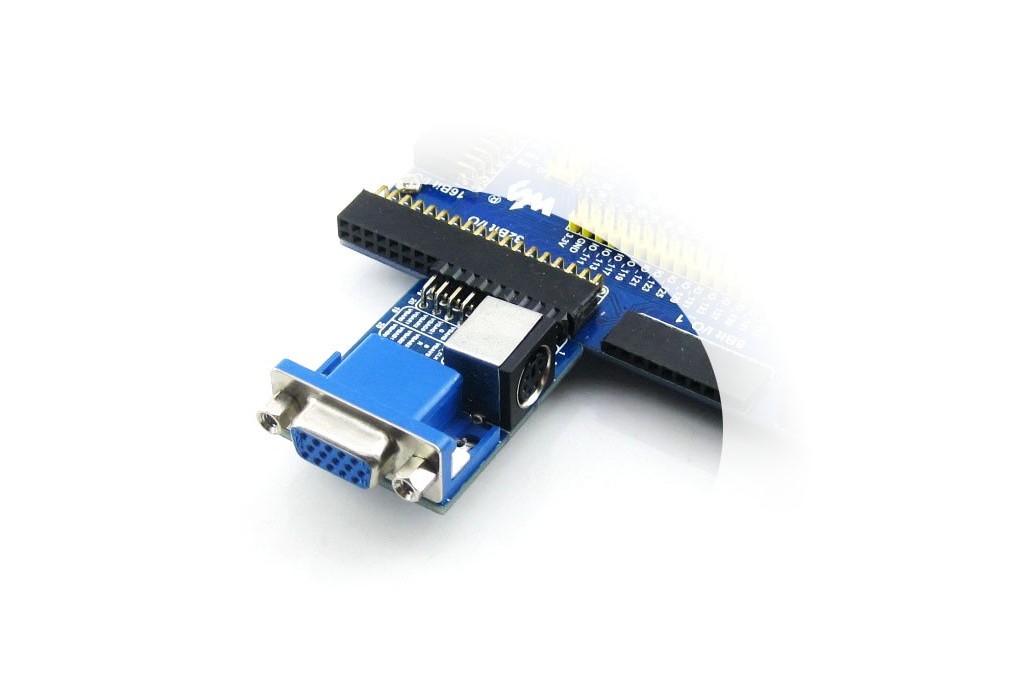

VGA PS2 Board
Connecting to VGA PS2 Board

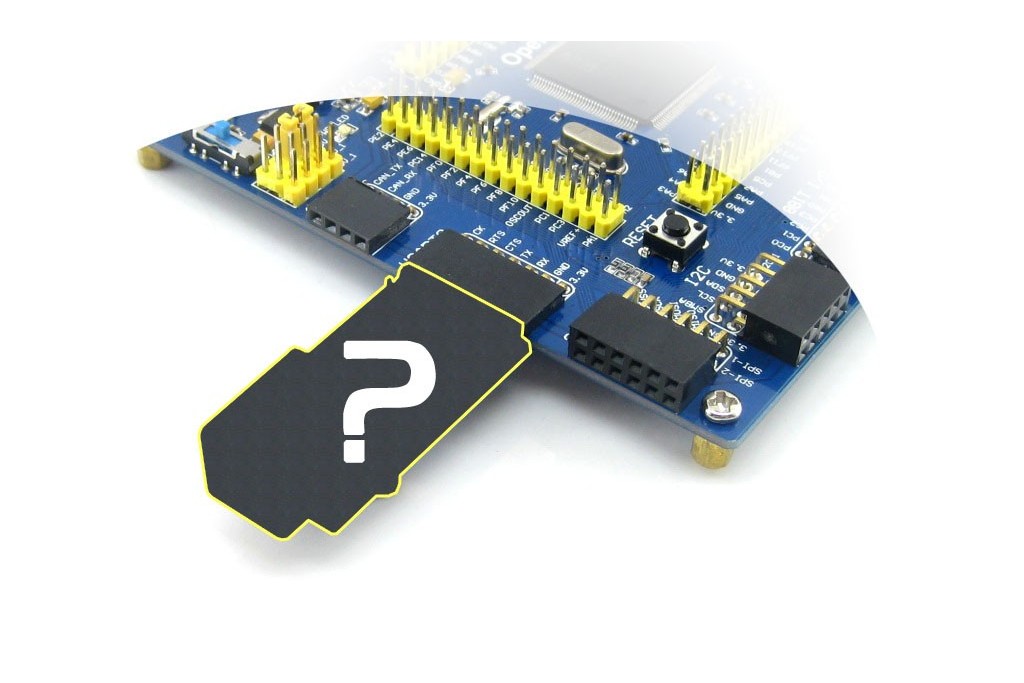

Connecting to any accessory board
Connecting to any accessory board you need

The Open3S250E does NOT integrate any programming/debugging function, a programmer/debugger is required.
Accessory boards in the photo are NOT included in the Open3S250E Standard Package.


The Open3S250E FPGA development board comes with various examples codes for the supported peripherals, which give you a quick start to develop your own application.

PCF8563 RTC I2C Y
PCF8591 4xAD, 1xDA I2C Y
DS18B20 Temperature sensor 1-WIRE Y
SP3232 Serial communication UART Y Y
SP3485 Serial communication UART Y Y
Buzzer Sound device 1I/O (PWM) Y Y
PS/2 keyboard Input device PS/2 Y Y
Single buttons Input device ---- Y Y
4x4 keypad Input device 8I/Os Y Y
Joystick Input device 5I/Os Y Y
LED Display device ---- Y Y
8 SEG LED Display device 13I/Os Y Y
VGA monitor Display device VGA Y Y
Character LCD Display device 11I/Os Y Y
Graphic LCD Display device 11I/Os Y Y

Debugging/Programming Interface

The Open3S250E FPGA development board integrates JTAG interface for programming/debugging.

JTAG Signal Names & Description

PinSignal NameDescription
1 GND Signal ground
2 VCC(TRGT) Target power supply
3 GND Signal ground
4 TMS JTAG state machine control
5 GND Signal ground
6 TCK Clock signal
7 GND Signal ground
8 TDO Data from device
9 GND Signal ground
10 TDI Data to device
11 GND Signal ground
12 NC
13 GND Signal ground
14 NC
15 GND Signal ground

JTAG Header Pinout

JTAG header pinout

Development Resources

The Open3S250E FPGA development board comes with a User Guide CD including development resources listed as below:

  • Related software (Xilinx ISE 12 - supports Winxp/Win7, doesn't support Win8)
  • Demo code (Verilog, VHDL)
  • Schematic (PDF)
  • FPGA development documentations
