EX-F02x-Q100 Standard, C8051F Development Board

WSD0016

New product

More info

Development Board designed for the C8051F02x series microcontrollers

Overview

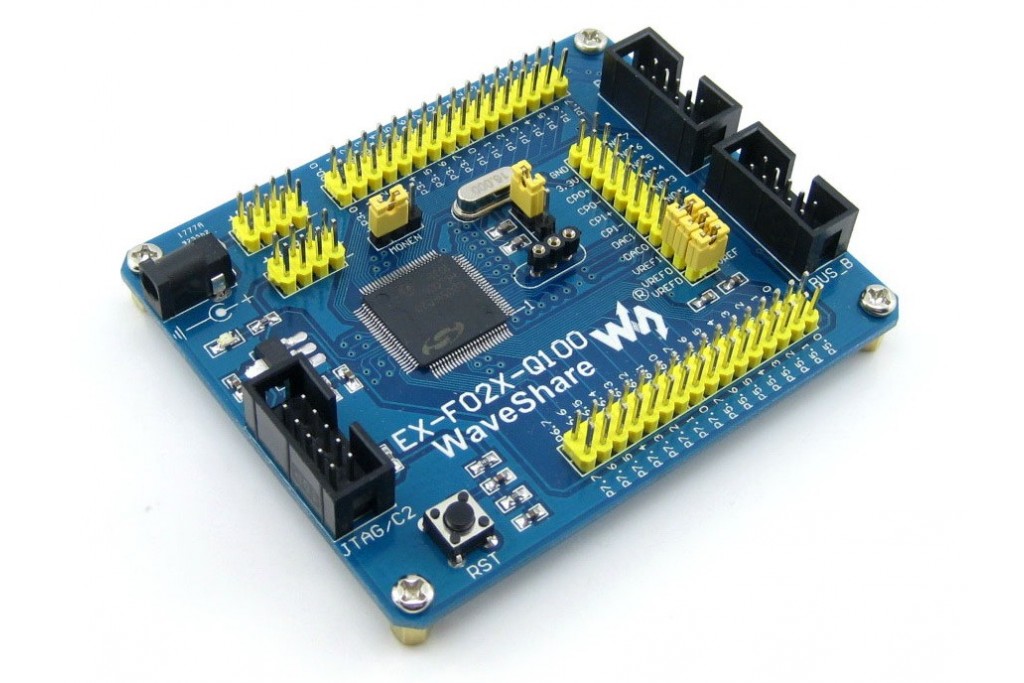

A development board for the C8051F02x series microcontrollers, such as C8051F020, C8051F022. It is designed to give designers a quick start to develop code on these devices.

This development board comes with the C8051F020 chip in TQFP100 package.


What's On Board

  • Power
    • Powered from 5V DC jack using an onboard 3.3V regulator AMS1117
    • Power input/output pin headers
      • spare power input port
      • convenient for providing power supply to other board/device if necessary
  • Onboard Chips
    • C8051F020 (TQFP100), the C8051F Microcontroller
    • AMS1117-3.3, on board regulator
  • Interfaces
    • JTAG/C2 port for programming/debuging
    • BUS-A & BUS-B, for connecting to the expansion board DVK501, ease to study/develop various peripheral devices
  • Human to Machine Interface
    • Reset button, used to reset the system
    • Power indicator LED
  • Other Features
    • VDD Monitor enable/disable jumper connected to the MONEN pin
    • AD/DA voltage reference jumper
    • External crystal configurable
      • there is a jumper for selecting on board 16M crystal or custom crystal mounted via the socket
    • All the MCU pins are accessible on expansion connectors for further expansion
    • All the pins are clearly marked on the PCB. These marks provide the basic information on the pins

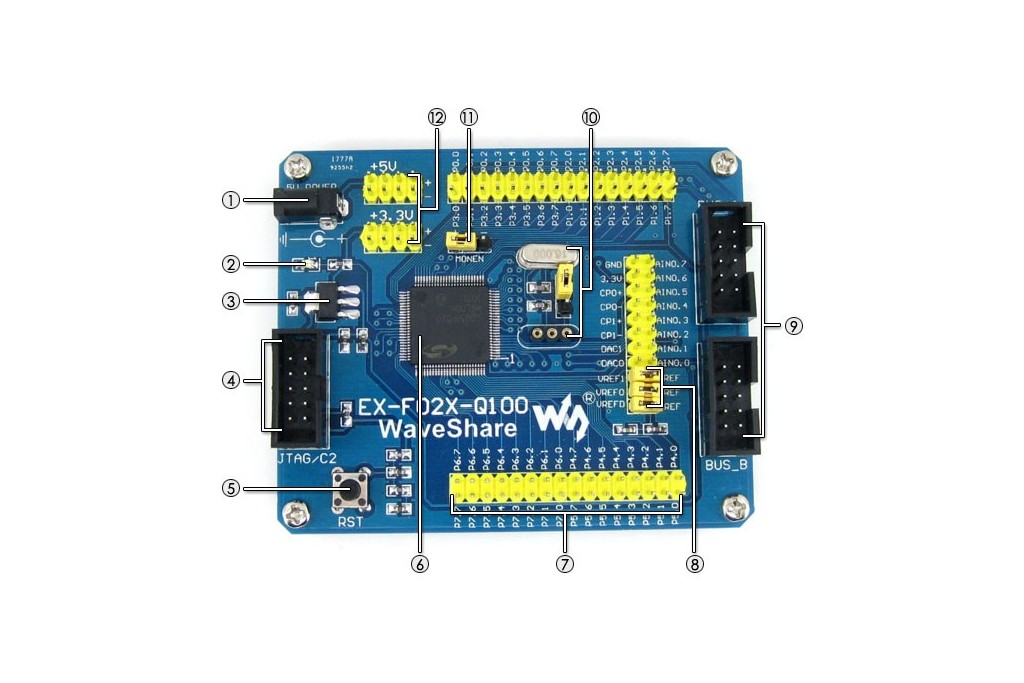

EX-F02x-Q100 introduction
  1. 5V DC jack
    • default power input
  2. Power indicator
  3. On board regulator
    • 3.3V
    • AMS1117-3.3
  4. 10-pin JTAG/C2 port
  5. Reset
  6. Microcontroller
    • C8051F020
    • TQFP100 package
  7. Pin headers connected to MCU pins
    • marked clearly on the PCB
    • easy for testing and further expansion
  1. AD/DA voltage reference
  2. BUS-A & BUS-B expansion ports
    • for connecting to DVK501
    • header pinout definition is provided
    • ease to develop various peripherals
  3. External crystal configuration
    • on board 16M crystal
    • custom crystal socket
    • selected via jumper
  4. VDD monitor enable/disable jumper
  5. Power input/output
    • 5V/3.3V
    • spare power input
    • power output is available

Examples

Examples that come with this development board will show you how to connect the C8051F microcontroller to other peripheral components or devices and how to develope your prototype device easily. The pictures below show how the EX-F02x-Q100 works with an expansion board DVK501 and the results of the examples.

Note: The DVK501 and LCD12864 are not included in the price, please browse our store to buy them separately if you need. Click on the image to enlarge.

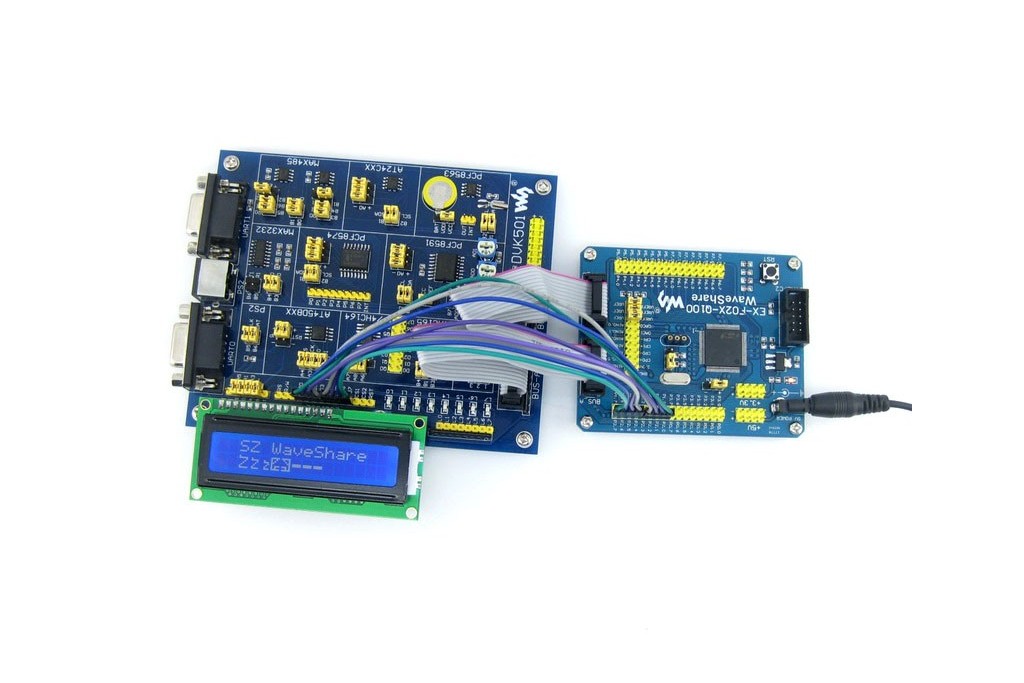

LCD1602
Displaying text on LCD

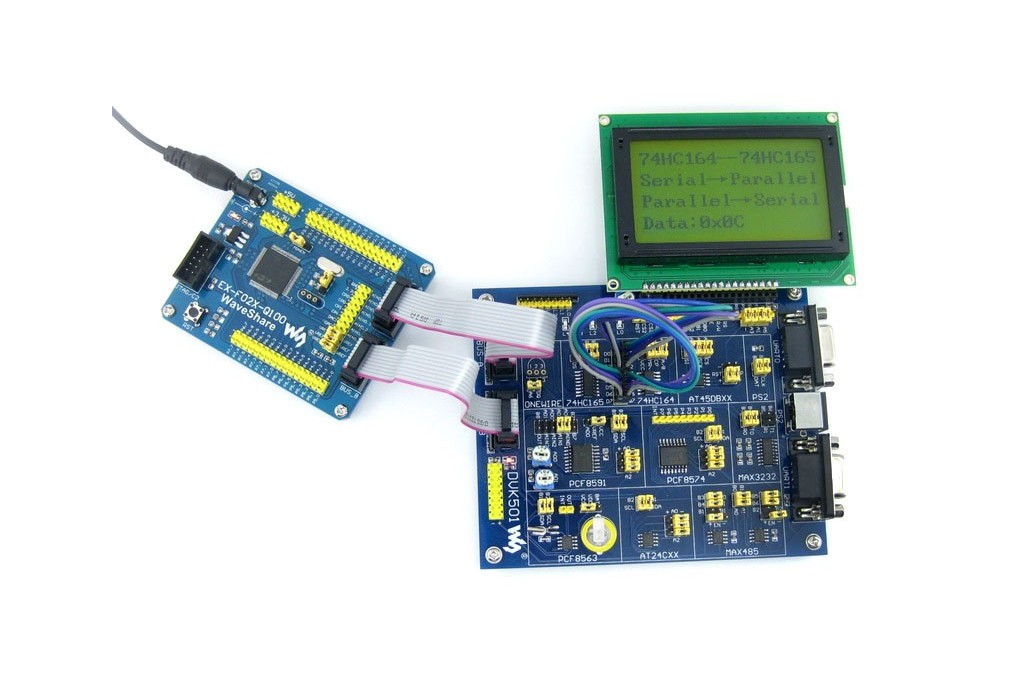

74HC164-74HC165
Serial/parallel communication example using 74HC164/74HC165

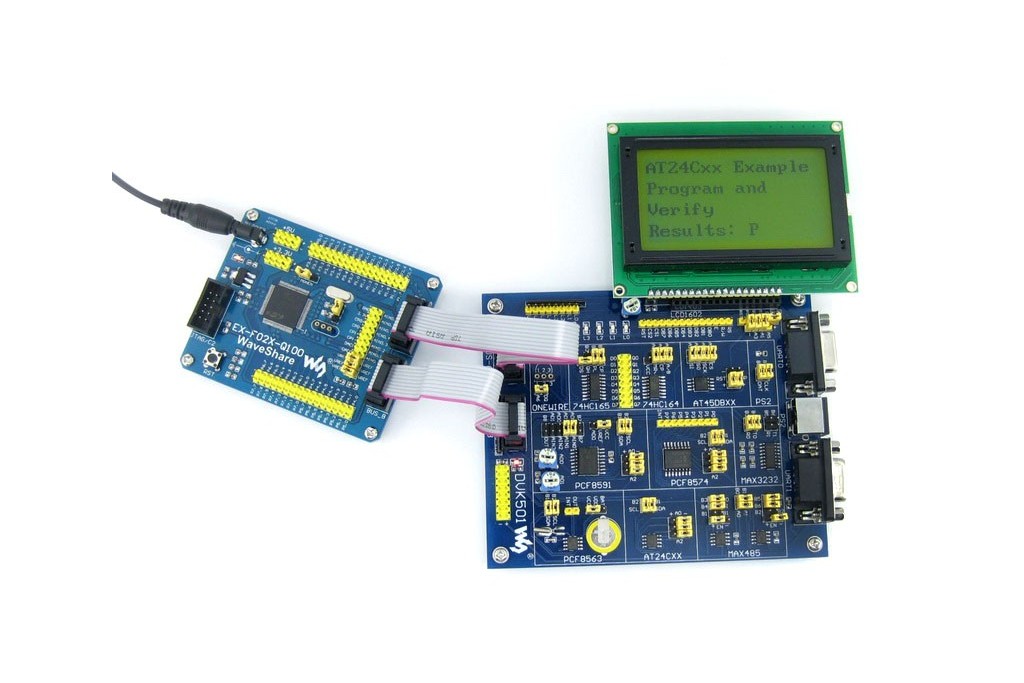

AT24Cxx
Writing and Reading data from AT24CXX EEPROM via I2C interface

Development Resources

  • User Guide CD
    • CD with software, drivers and examples
  • Schematic Circuit Diagram
    • PDF
  • Examples in C
    • Based on Silabs IDE and Keil
  • Related Software
    • Silabs IDE
    • Keil
  • Datasheets of the chips
