Motor Control Shield

WSM0096

New product

More info

Overview

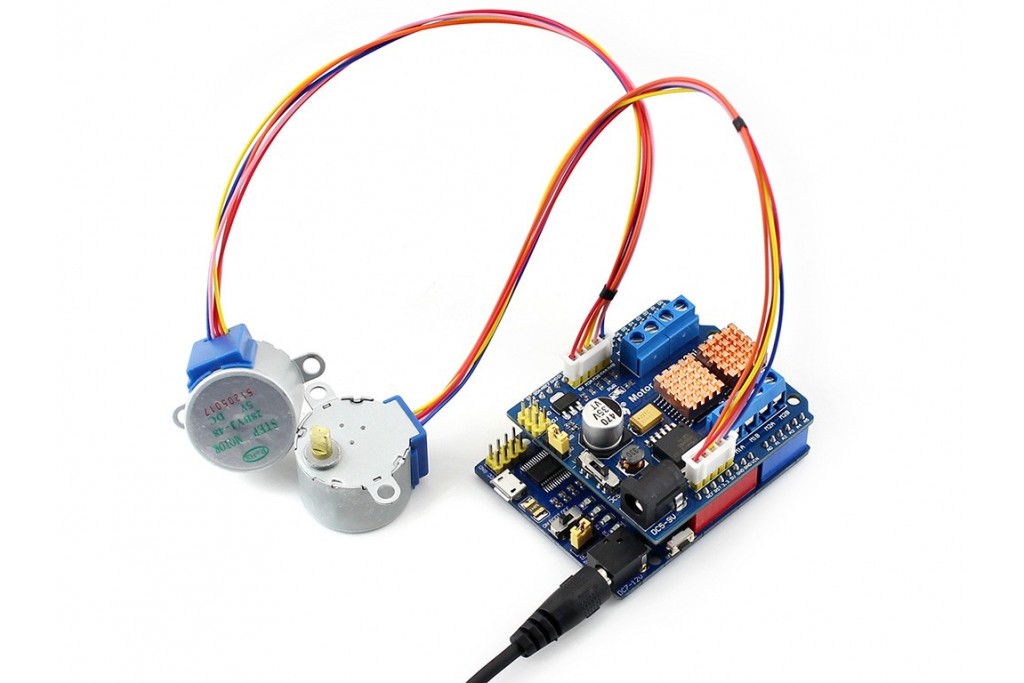

Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.

Features

  • Configurable motor power supply via onboard jumper
    • when using 5V motor power supply : drives four 5V DC motors at one time
    • when using adjustable motor power supply : drives two 1.25V-6.45V DC motors at one time (9V external power supply is required)
  • Onboard dual H-bridge driver L293D x 2
    • each L293D can drive 2 DC motors or 1 stepping motor at one time
    • totally 4 channel H-bridge, with 600mA output current (peak 1.2A) per single bridge
    • ESD protection

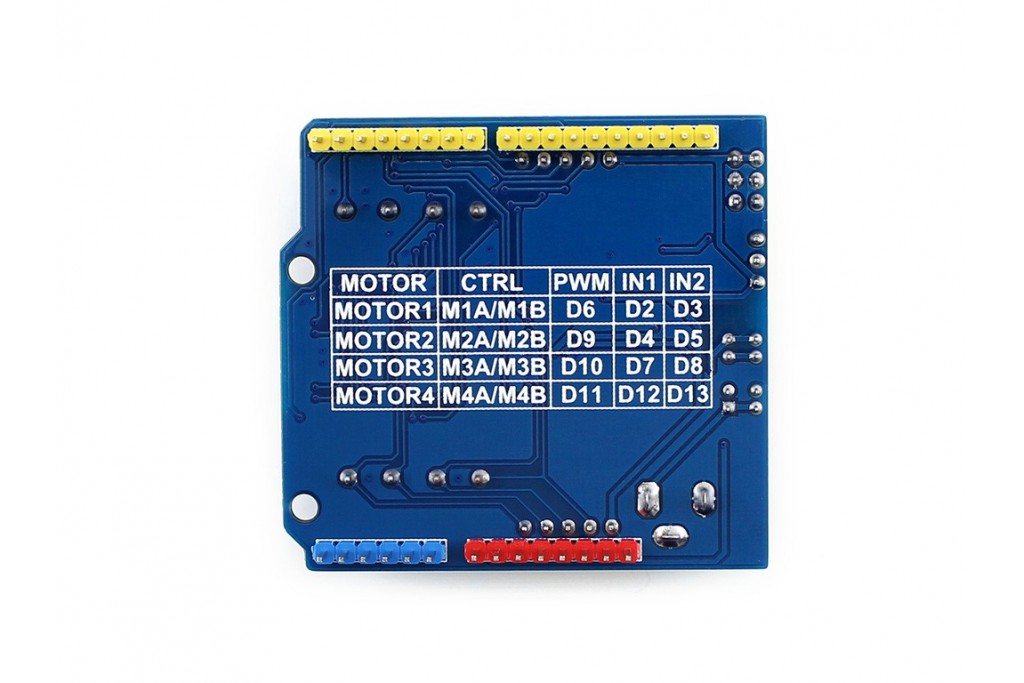

What's on Board

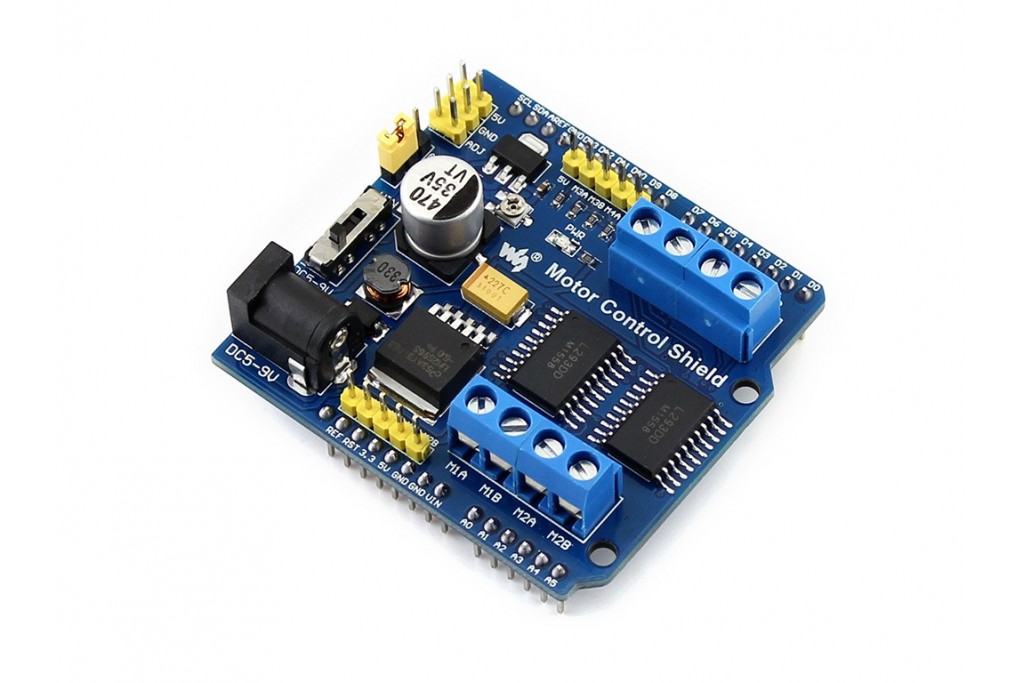

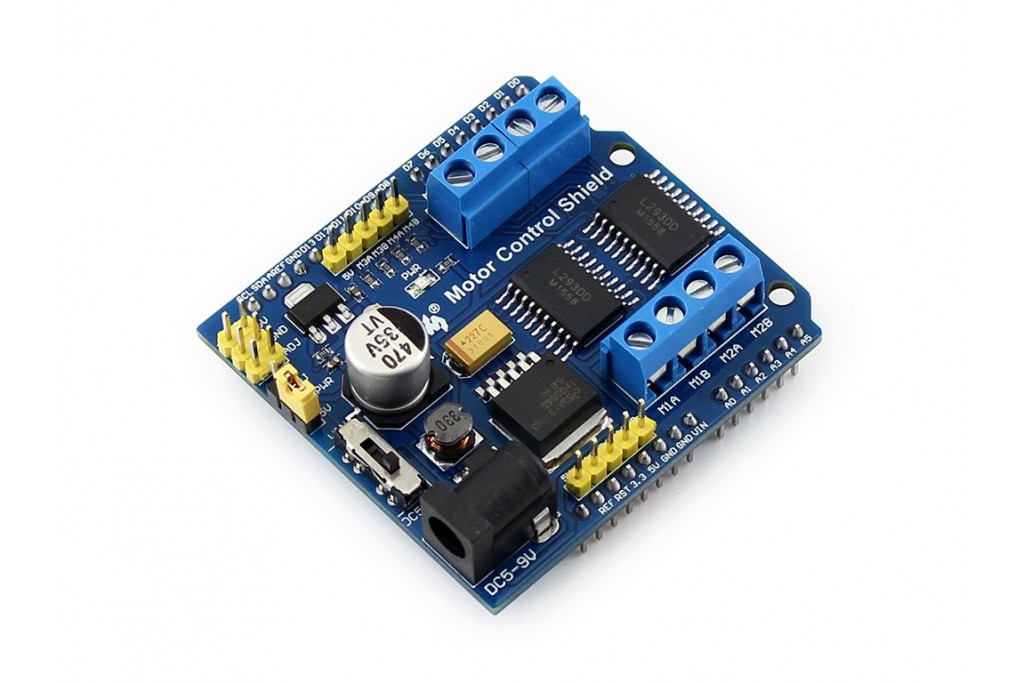

MarS Board expansion board on board resource

  1. External power supply jack
  2. Power input/output pinheader
  3. Stepping motor interface
  4. DC motor interface
  5. M_PWR configuration : connects M_PWR (motor power) to 5V or ADJ
  6. Power selection switch
  7. Power indicator
  8. AMS1117-ADJ : onboard linear regulator with adjustable output
  9. Adjustable potentiometer : for adjusting the output voltage of ADJ (adjustable motor power)
  10. L293D : dual H-bridge driver
  11. LM2596-5.0 : onboard linear switching regulator with 5V output

Note : when in operation, it's normal that the onboard motor drivers and regulators generate lots of heat.
