PCF8591 AD DA Board

WSM0057

New product

More info

A/D Converter & D/A Converter Module with I2C interface, PCF8591 on board, 8-bit resolution, 4 channel AD, 1 channel DA, voltage output

Overview

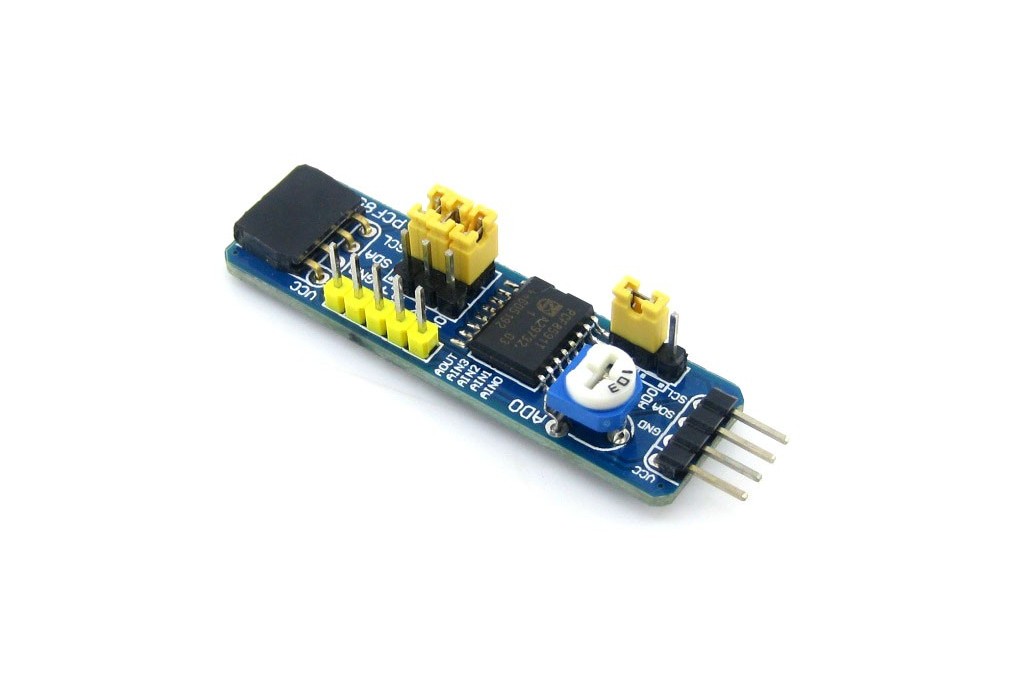

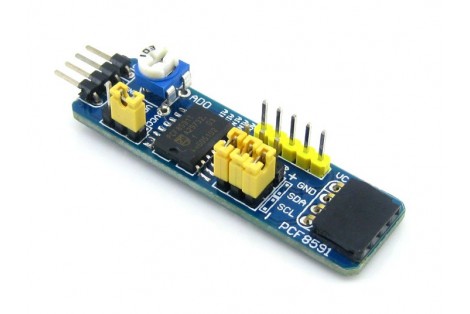

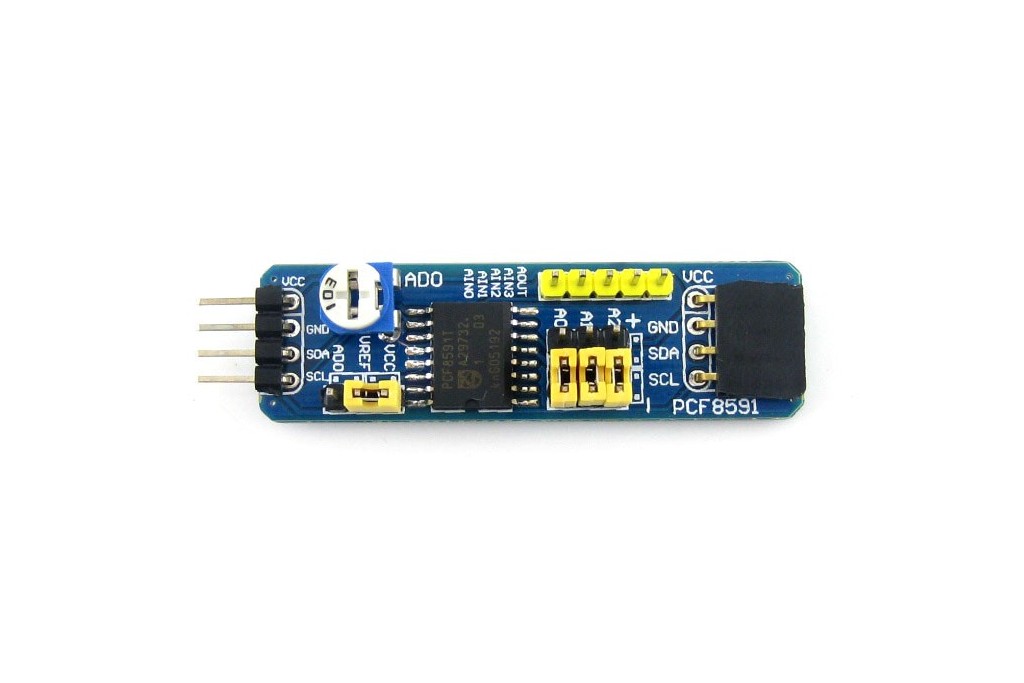

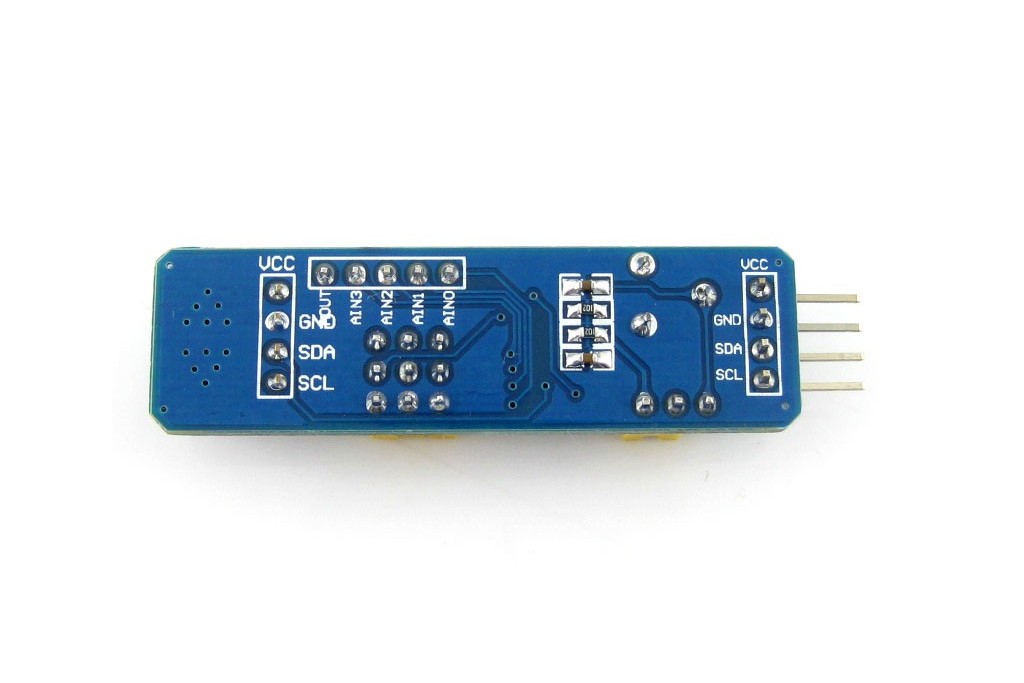

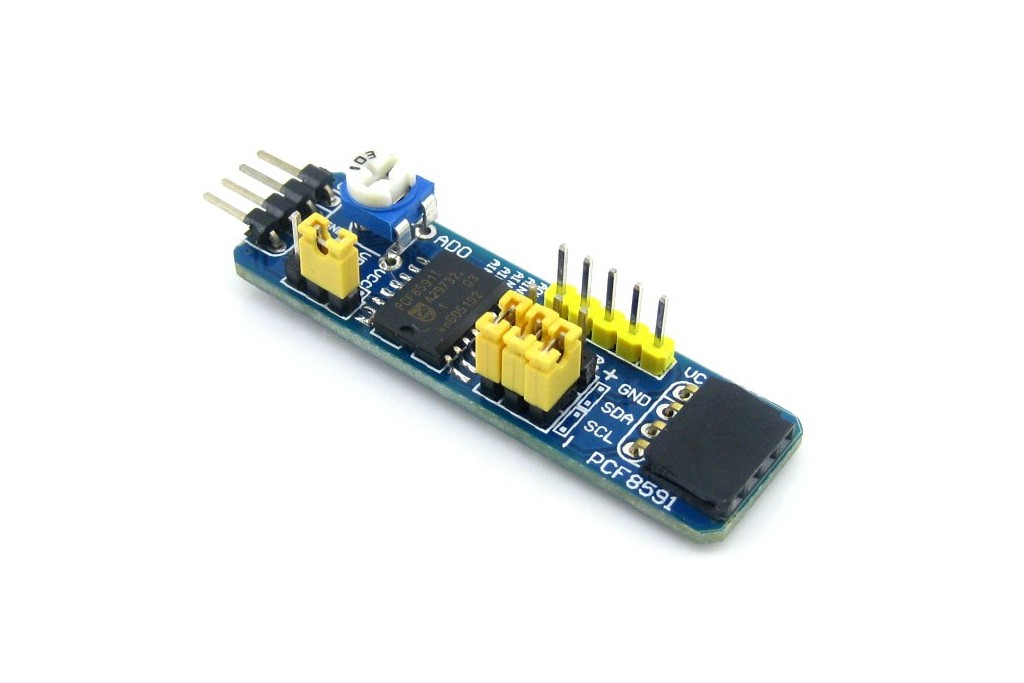

The PCF8591 AD DA Board features an 8-bit A/D Converter & D/A Converter PCF8591 with four analog inputs, one analog output and a serial I2C-bus interface.

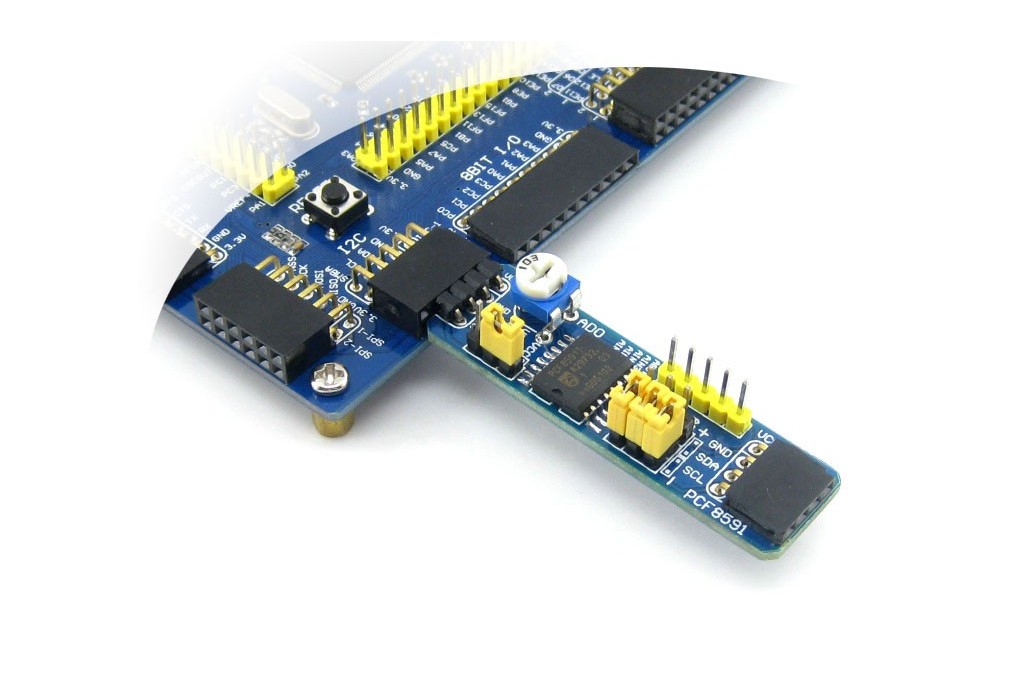

The PCF8591 AD DA Board features I2C pinheader on one side, and I2C connector on the opposite side. Hence, it's more flexible to connect the board to your development system. The board also supports I2C cascading, allowing the use of multi module connected to the I2C bus at the same time by connecting the pinheader and connector.

Features

PCF8591, I2C pinheader, I2C connector, Adjustable resistor, Analog input for A/Dconversion, Analog output for D/A conversion, Address pins jumper

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/PCF8591_AD_DA_Board
