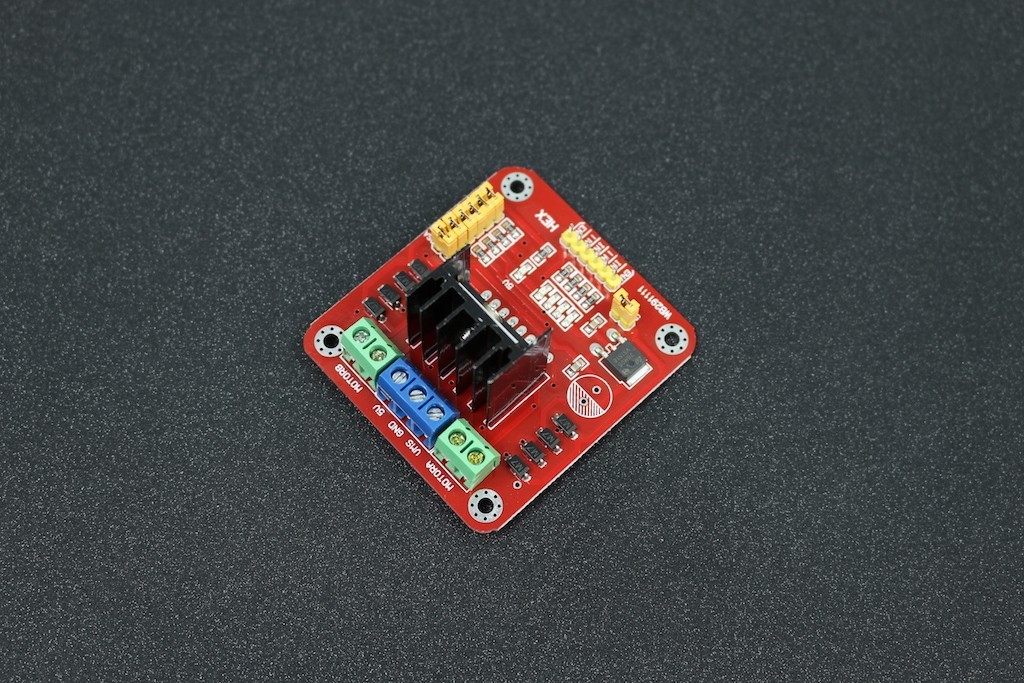

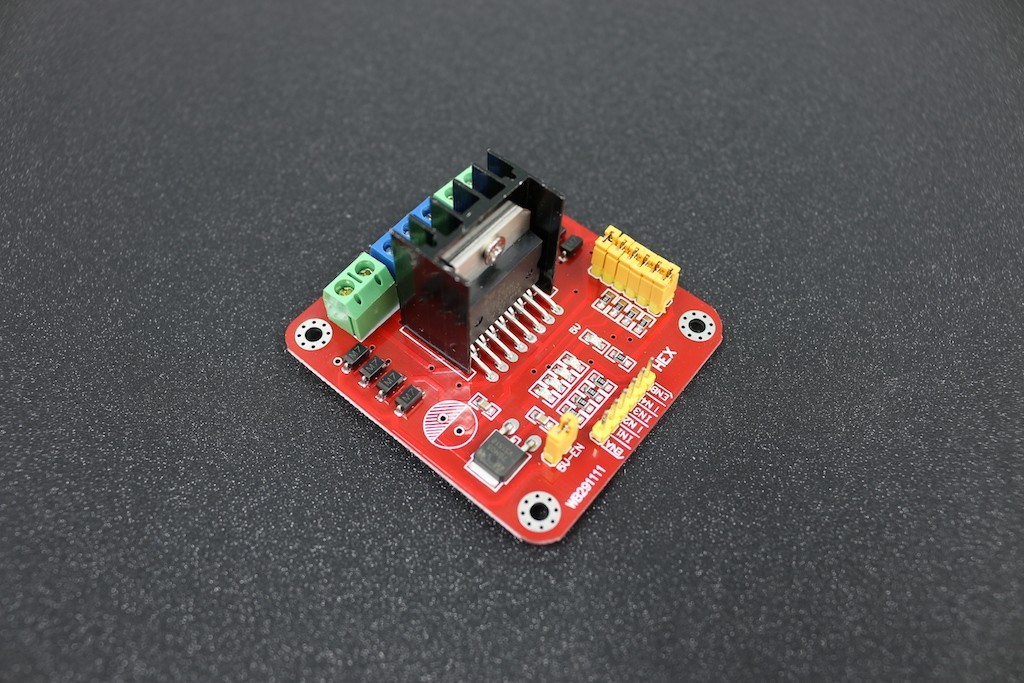

L298N Dual Bridge DC Stepper Controller Module

MD0018

New product

More info

Detail about Stepper Controller Module

The L298 is an integrated monolithic circuit in a 15- lead Multi- watt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver de- signed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the device independently of the in- put signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional supply input is provided so that the logic works at a lower voltage.

Features

  • Driver: L298N Dual H Bridge DC Motor Driver IC
  • Driven part of the terminal supply area Vs: +5 V ~ +35 V (such as the need to take power within the board)
  • The supply area Vs: +7 V ~ +35 V
  • Driven part of the peak current Io: 2A
  • The logical part of the terminal supply area Vss: +5 V ~ +7 V (can take power within the board +5 V)
  • The logical part of the operating current range: 0 ~ 36mA
  • Control signal input voltage range: Low:​0.3V, High: 2.3V
  • Enable signal input voltage range: Low: ​0.3, High: 2.3V
  • Maximum power consumption: 20W (when the temperature T = 75 Deg C)
  • Storage temperature: ​25 Deg C ~ +130 Deg C
  • Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
