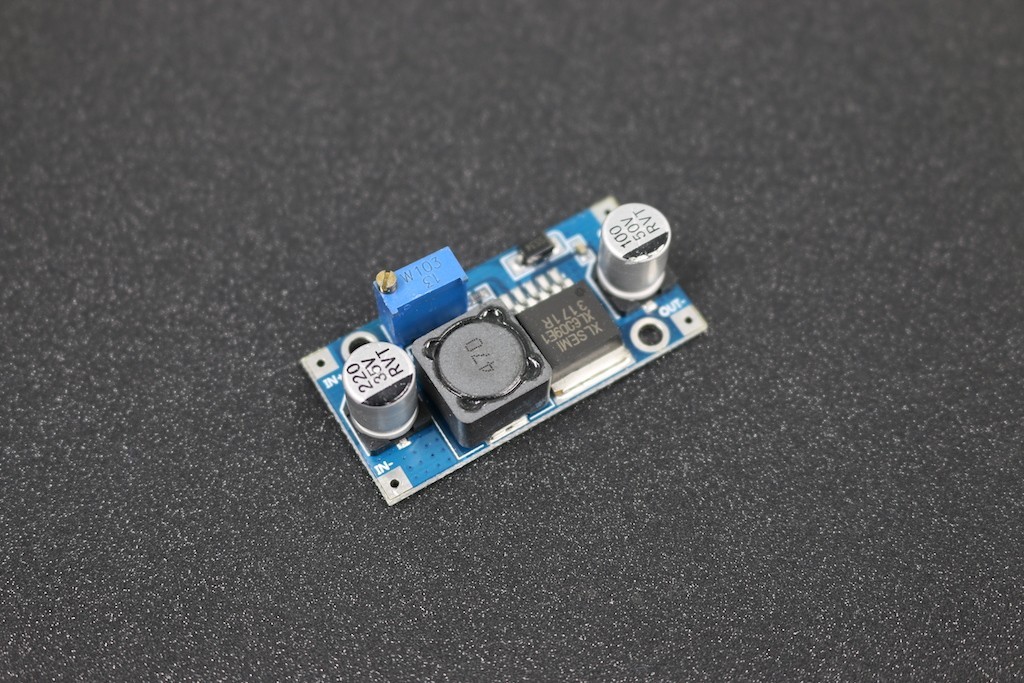

XL6009 DC - DC Power Boost Module

MD0036

New product

2,000 Ks

More info

Detail about Power Boost Module

The XL6009 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6009 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6009 regulator is special design for portable electronic equipment applications.

Features

  • Wide 5V to 32V Input Voltage Range
  • The input voltage: Minimum 5V to 3V ~ 35V
  • The output voltage: 6V ~ 45V
  • The output current: 4A (Max)
  • The output ripple: <30 mV
  • Switching frequency: 65 KHz
  • Workingtemperature:-45’ ~ +85’
  • Positive or Negative Output Voltage Programming with a Single Feedback Pin
  • Current Mode Control Provides Excellent
  • Transient Response
  • 1.25V reference adjustable version
  • Fixed 400KHz Switching Frequency
  • Maximum 4A Switching Current
  • SW PIN Built in Over Voltage Protection n Excellent line and load regulation
  • EN PIN TTL shutdown capability
  • Internal Optimize Power MOSFET
  • High efficiency up to 94%
  • Built in Frequency Compensation
  • Built in Soft-Start Function
  • Built in Thermal Shutdown Function
  • Built in Current Limit Function
