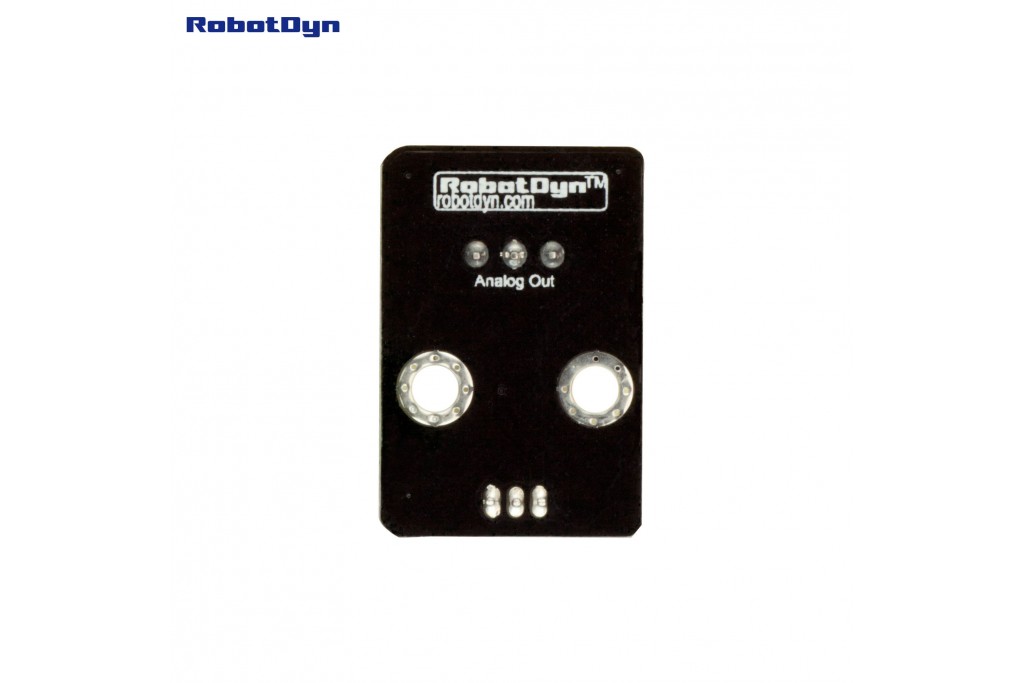

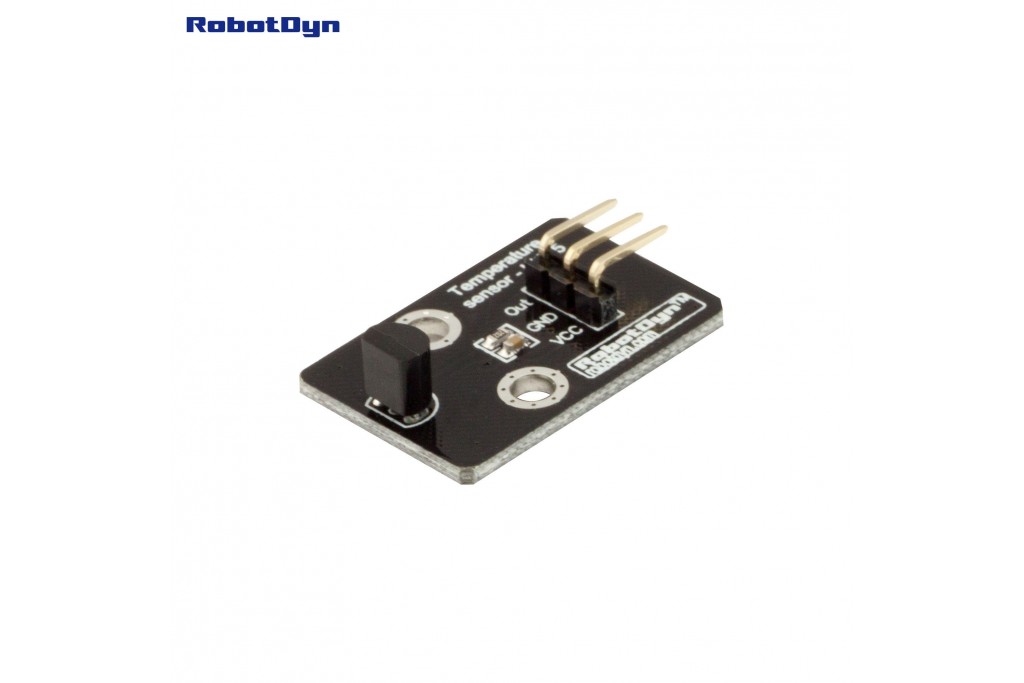

Details about Temperature Sensor - LM35

             LM35 Temperature Sensor - is an integrated sensor that can be used for measuring the temperature using an electrical output signal proportional to the temperature.
Measuring range from 0 to + 100 ° C. Accuracy +/- 0.4 ° C at room temperature and +/- 0.8 ° C in the range from 0 to + 100 ° C.
LM35 temperature sensor generates a higher signal than the output voltage of thermocouples, and does not require amplification of the output voltage.
Current consumption less than 60mA.
The equation for converting the output voltage temperature:
Temperature (° C) = Vout * 100.
Tak, if Out = 1V, then the temperature = 100 ° C.
The output voltage varies linearly with temperature.

Documents

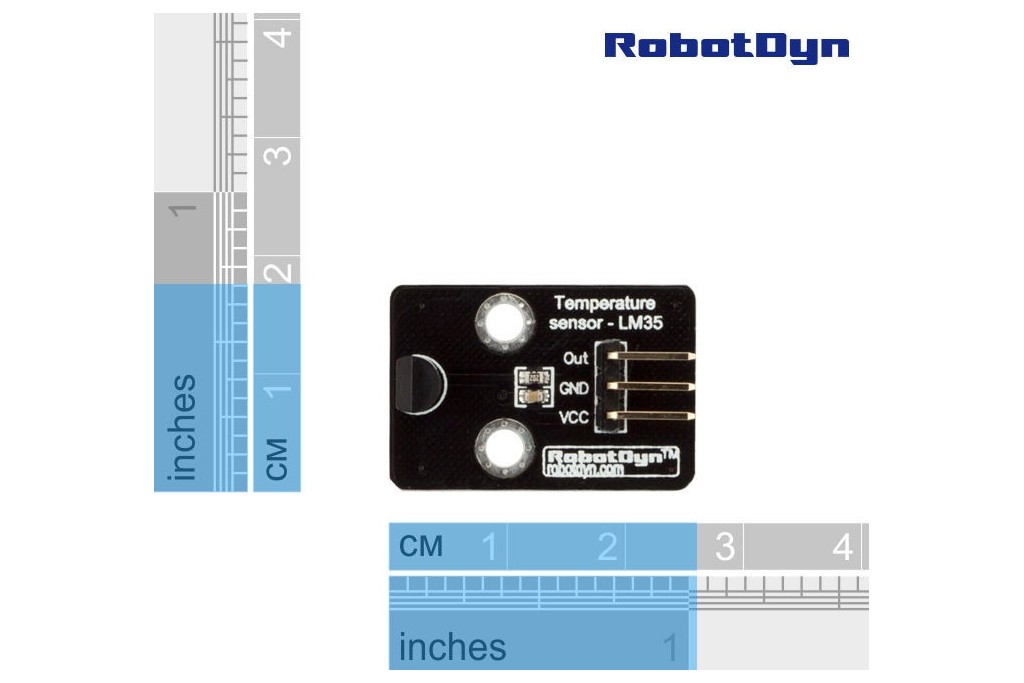

Dimensional drawing

Dimensions Temperature sensor - LM35 Dimensions Temperature sensor - LM35

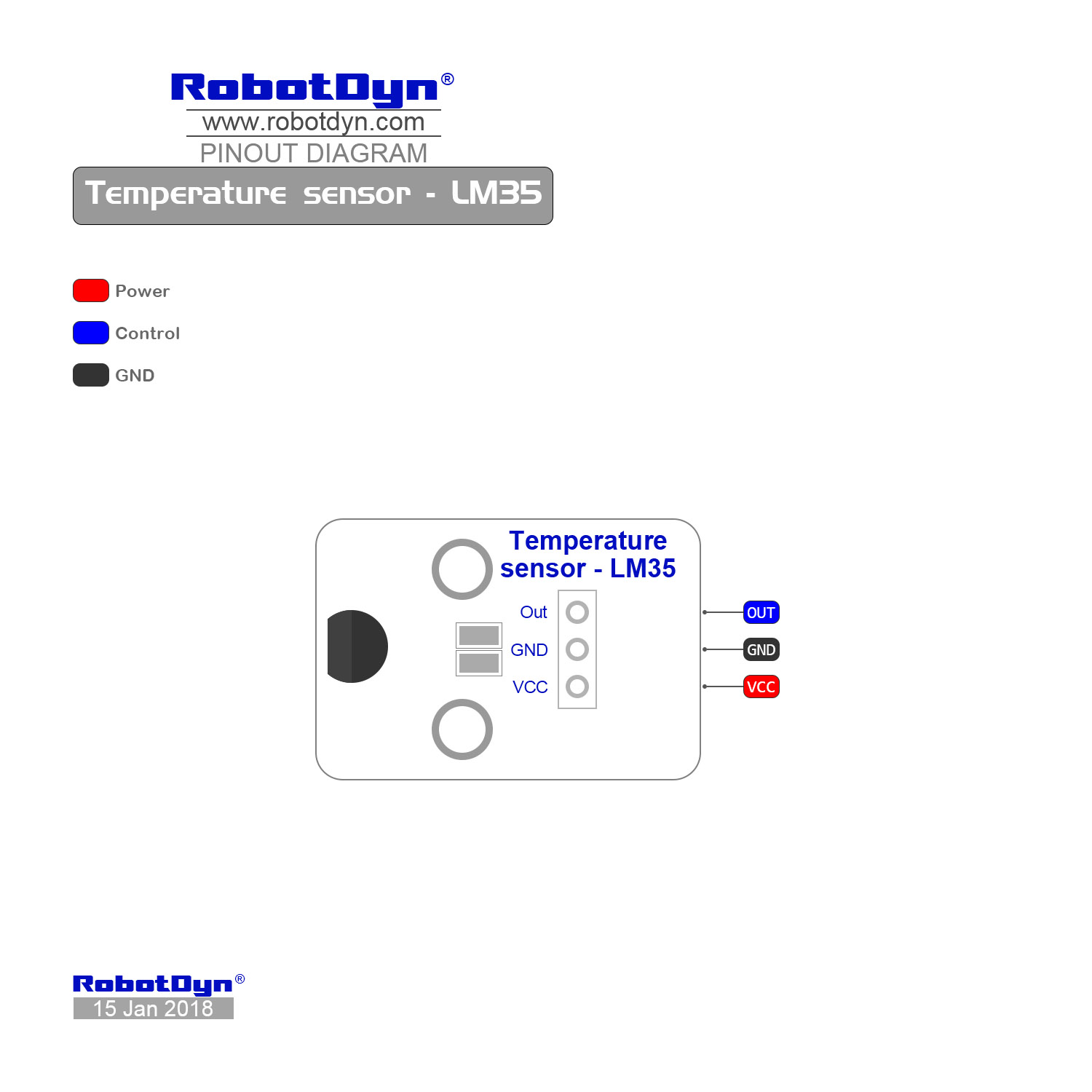

Pinout

Pinout Temperature sensor - LM35 Pinout Temperature sensor - LM35
