WIFI Module ESP-07, ESP8266, 8Mb

RDYN0040

New product

6,300 Ks

More info

Details about WIFI Module ESP-07, ESP8266, 8Mb

              The ESP8266 ESP-07 is a Wi-Fi module that allows microcontrollers access to a Wi-Fi network. This module is a self-contained SOC (System On a Chip) that doesn’t necessarily need a microcontroller to manipulate inputs and outputs as you would normally do with an Arduino, for example, because the ESP-07 acts as a small computer. Depending on the version of the ESP8266, it is possible to have up to 9 GPIOs (General Purpose Input Output). Then, we can give a microcontroller internet access like the Wi-Fi shield does to the Arduin0, or we can simply program the ESP8266 to not only have access to a Wi-Fi network, but to act as a microcontroller as well. This makes the ESP8266 very versatile, and it can save you some money and space in your projects.

Documents

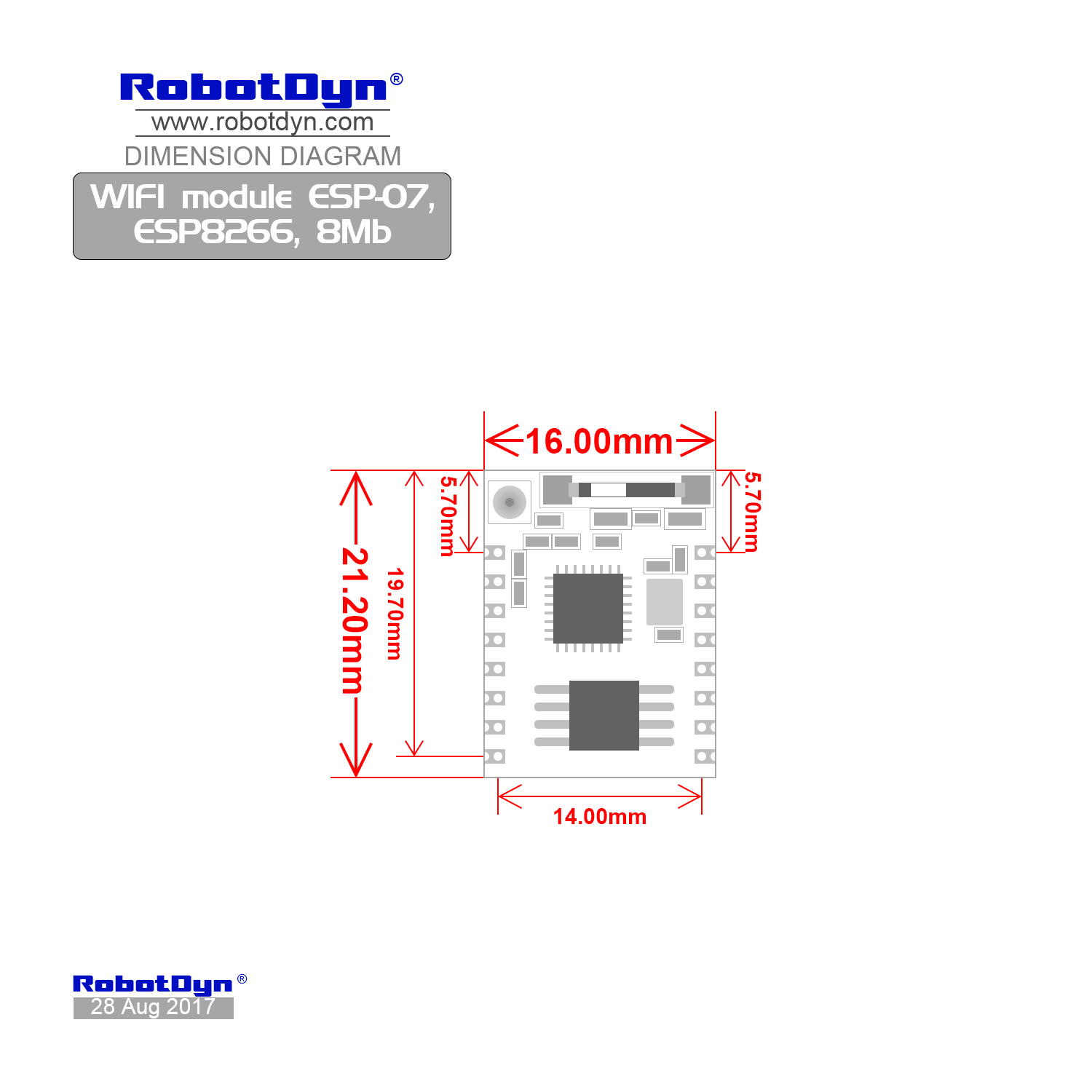

Dimensional drawing

Dimensions WIFI module ESP-07, ESP8266, 8Mb Dimensions WIFI module ESP-07, ESP8266, 8Mb

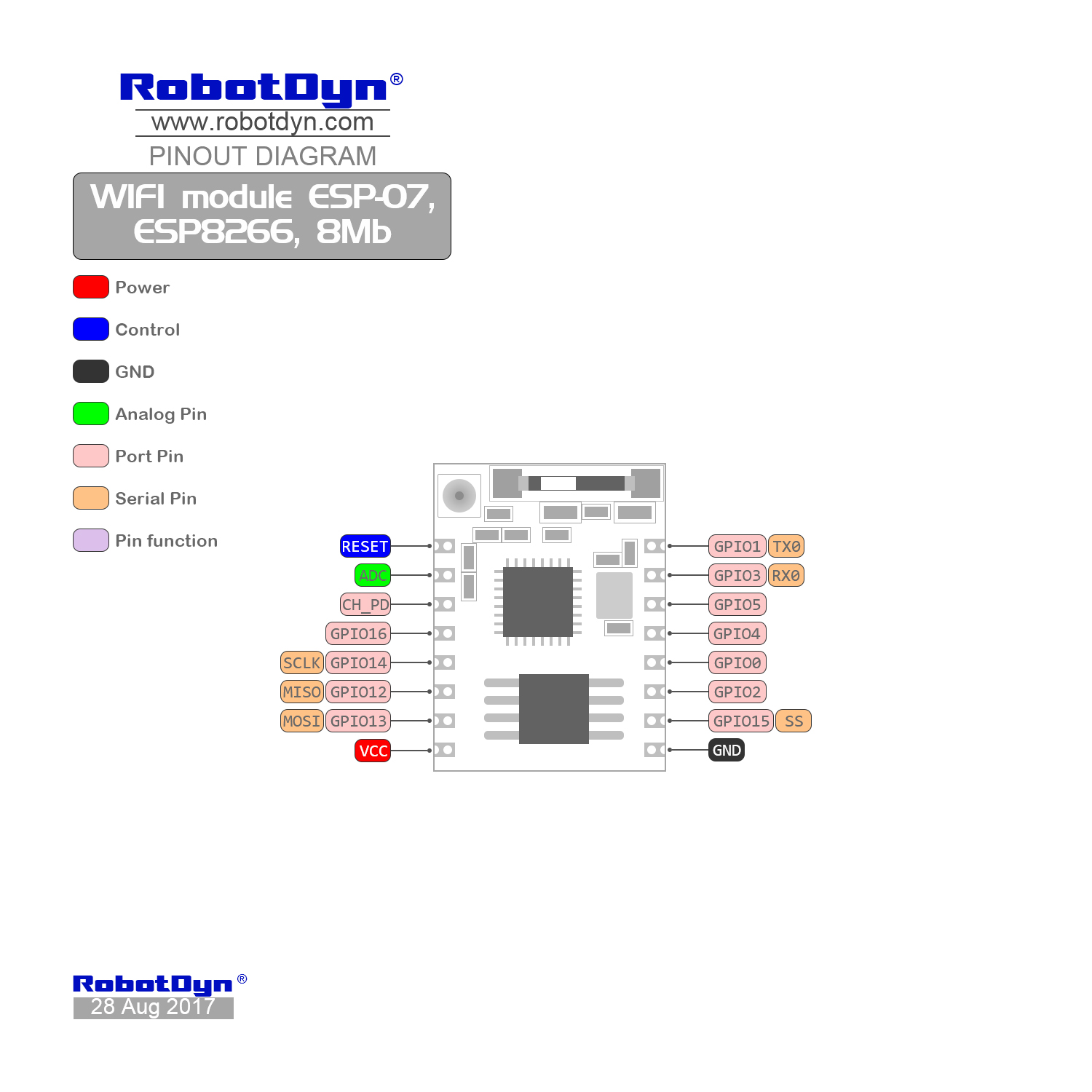

Pinout

Pinout WIFI module ESP-07, ESP8266, 8Mb Pinout WIFI module ESP-07, ESP8266, 8Mb

Schematic

Schematic of WIFI module ESP-07, ESP8266, 8Mb
