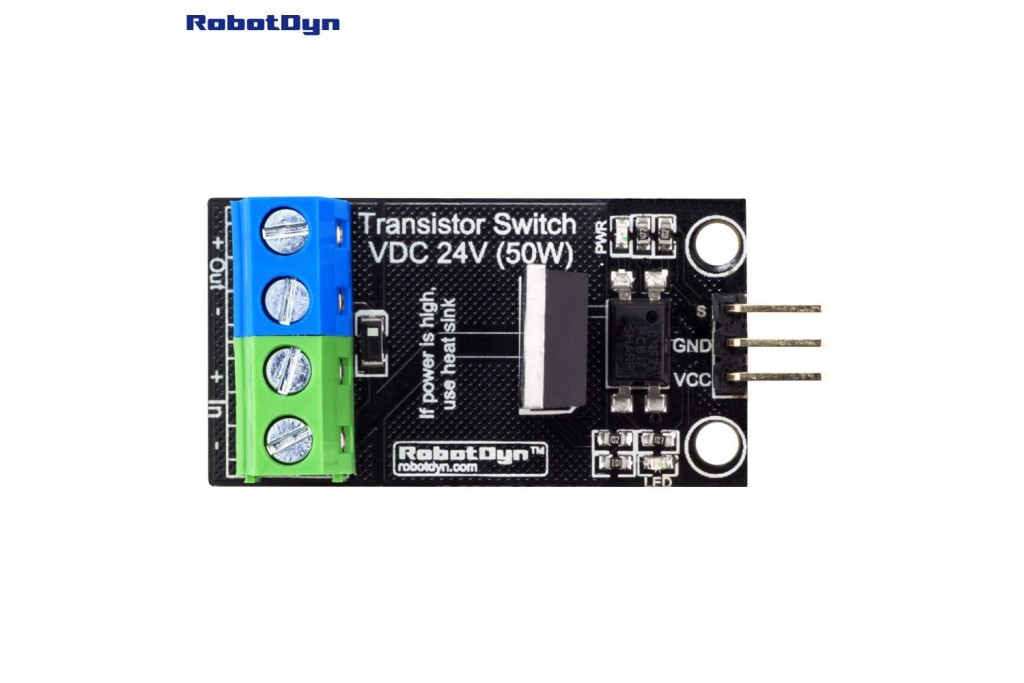

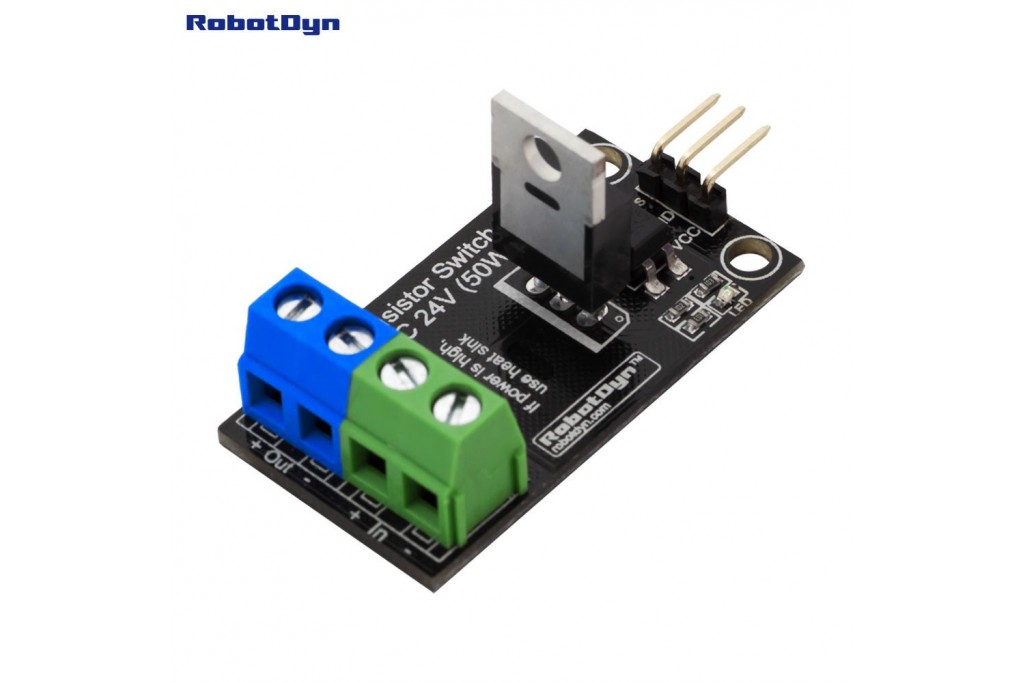

Transistor MOSFET DC Switch Relay, 5V Logic, DC 24V/30A

RDYN0038

New product

More info

Details about Transistor MOSFET DC Switch Relay, 5V Logic, DC 24V/30A

If you need to control the DC power, a MOSFET is what you need. This is a very common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.This board has an Opto-isolator to protect your microcontroller from high currents.We also left more space, if you need to install the heat sink for a transistor.

Documents

Dimensional drawing

Dimensions Transistor MOSFET DC switch Relay 5V logic DC 24V/30A Dimensions Transistor MOSFET DC switch Relay 5V logic DC 24V/30A

Pinout

Pinout Transistor MOSFET DC switch Relay 5V logic DC 24V/30A Pinout Transistor MOSFET DC switch Relay 5V logic DC 24V/30A

Schematic

Schematic of Transistor MOSFET DC switch Relay 5V logic DC 24V/30A
