Carbon Monoxide (CO) Sensor - MQ-7

RDYN0054

New product

4,100 Ks

More info

Details about Carbon Monoxide (CO) Sensor - MQ-7

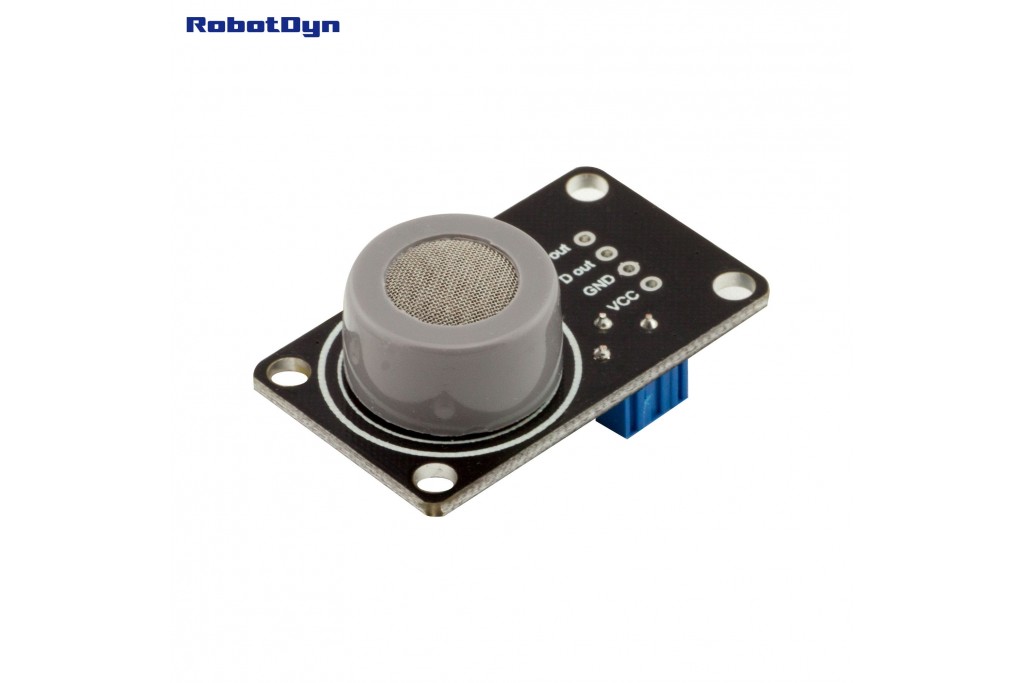

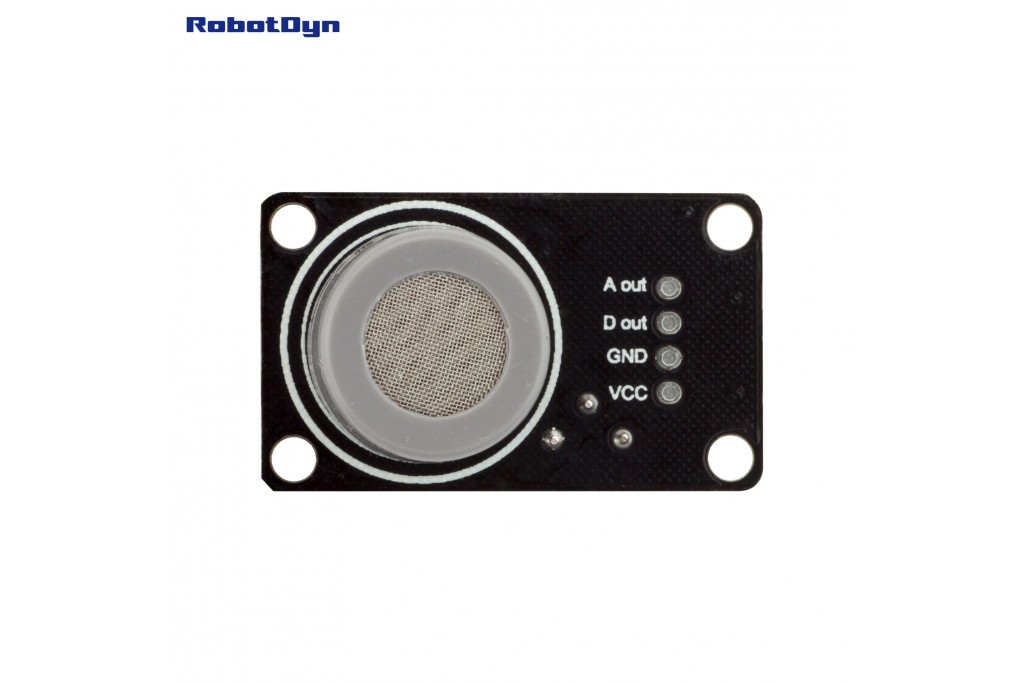

              This is MQ-7 Carbon Monoxide Sensor. It detects the concentrations of CO gas in the air and outputs it`s reading as an analog voltage. The sensor has a long life , high sensitivity and fast response time. The sensor output signal is an analog resistance.

             The sensor can measure a low concentration of carbon dioxide in the air. The sensitivity range of the gas concentration from 20ppm to 2000ppm. The sensor can operate in temperatures from -10 to 50 ° C, and consumes less than 150mA at 5V.

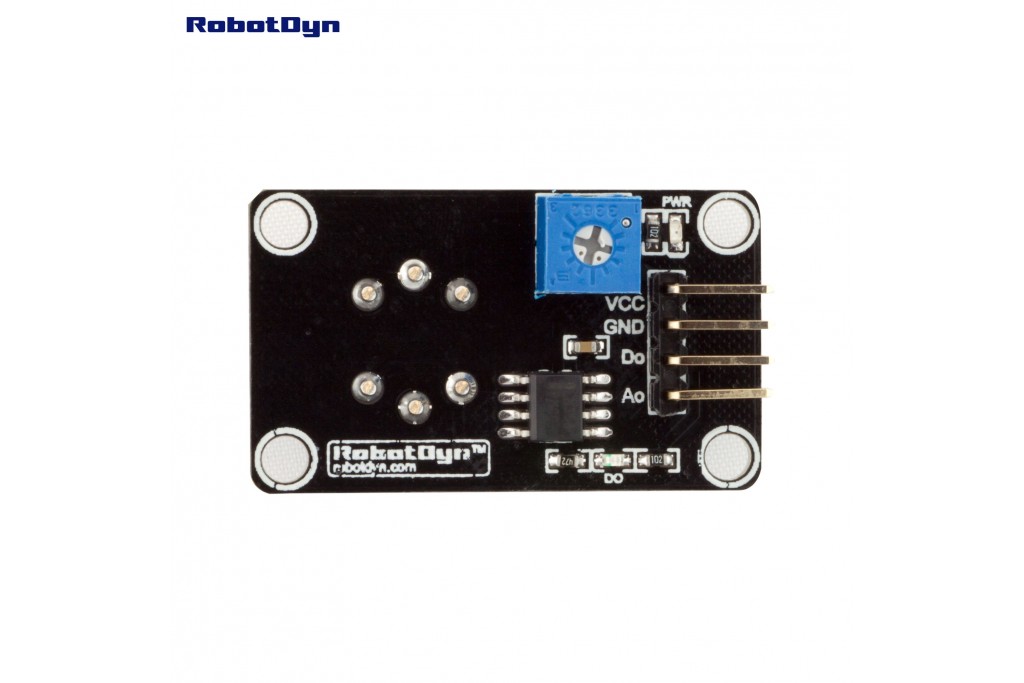

Analog and digital outputs - with the amplifier output signal and adjusting the heating element sensor. You can configure the sensor to a certain threshold, and connect to the digital input of the microcontroller.

Documents

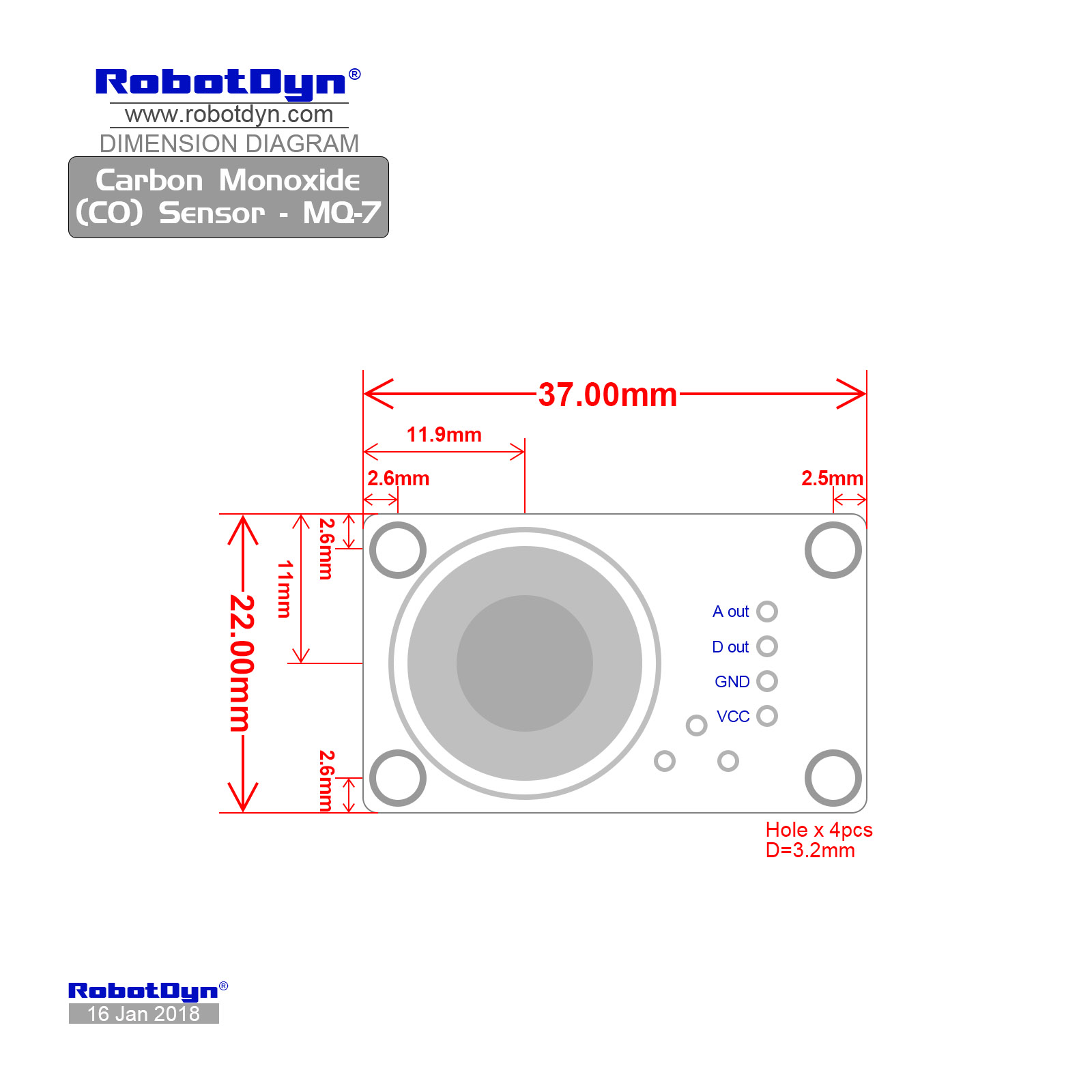

Dimensional drawing

Dimensions Carbon Monoxide (CO) Sensor - MQ-7 Dimensions Carbon Monoxide (CO) Sensor - MQ-7

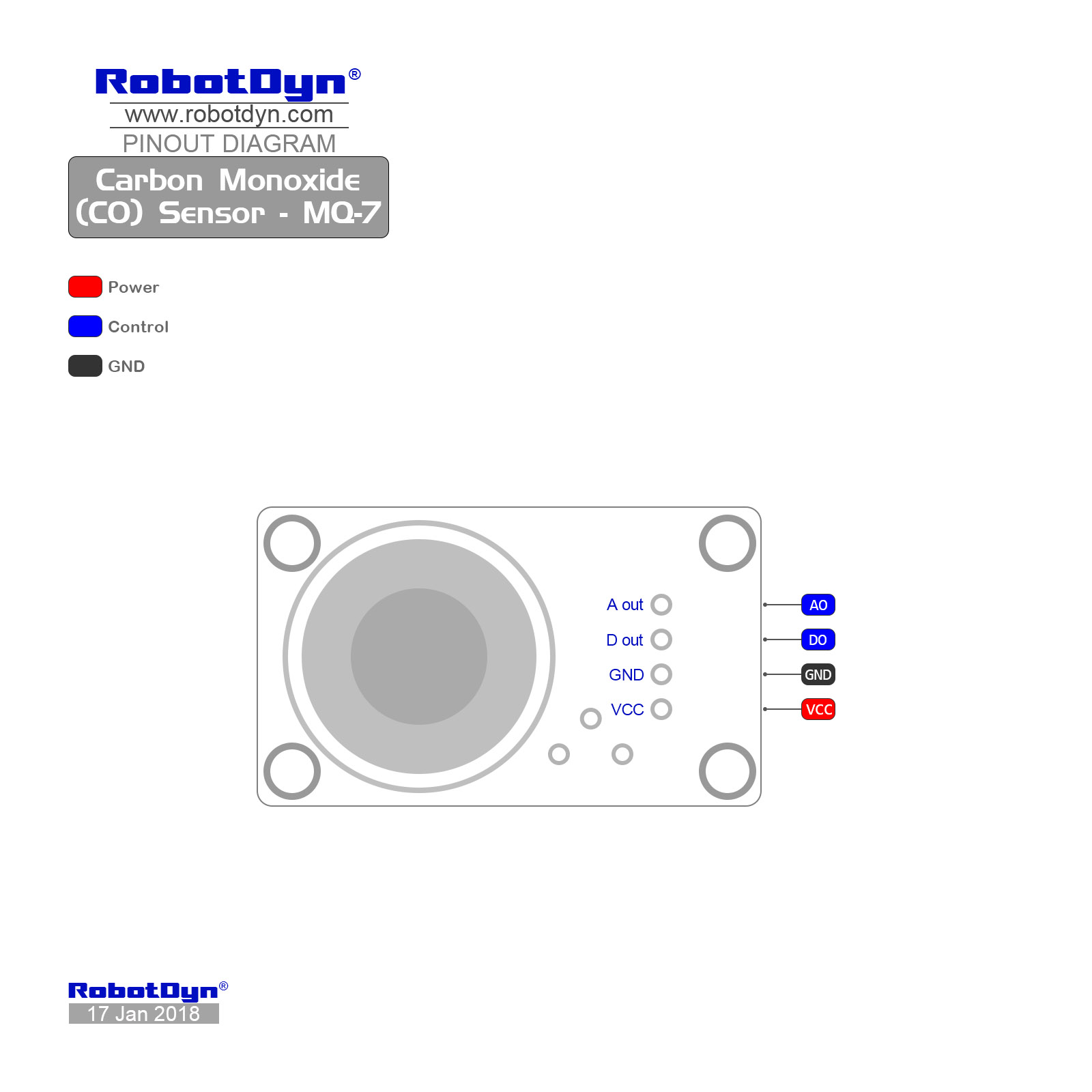

Pinout

Pinout Carbon Monoxide (CO) Sensor - MQ-7 Pinout Carbon Monoxide (CO) Sensor - MQ-7

Schematic

Schematic of Carbon Monoxide (CO) Sensor - MQ-7
