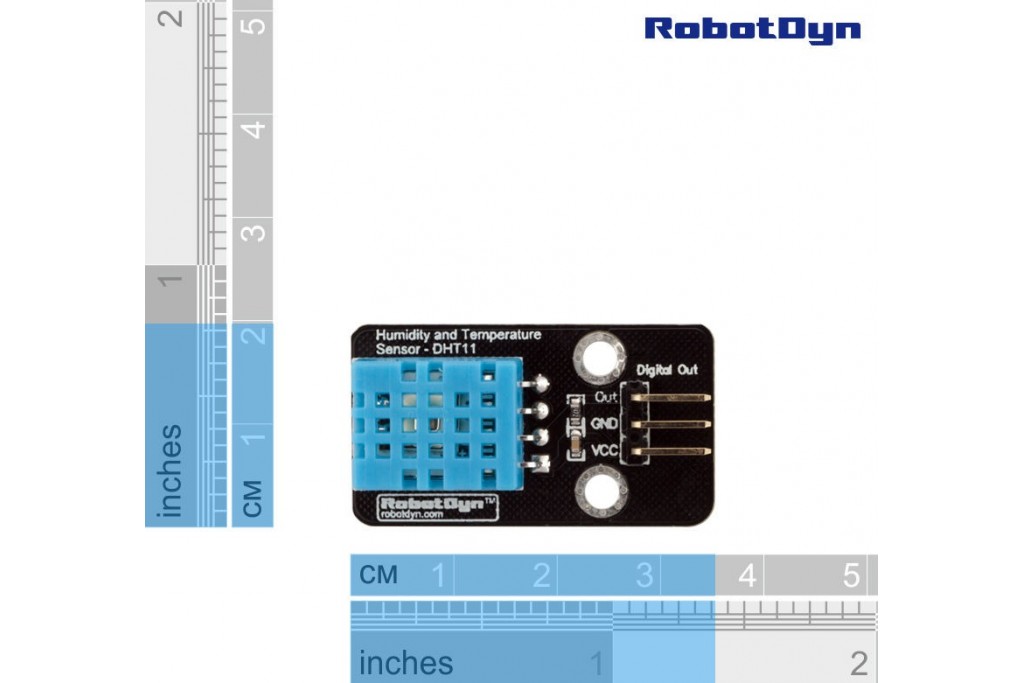

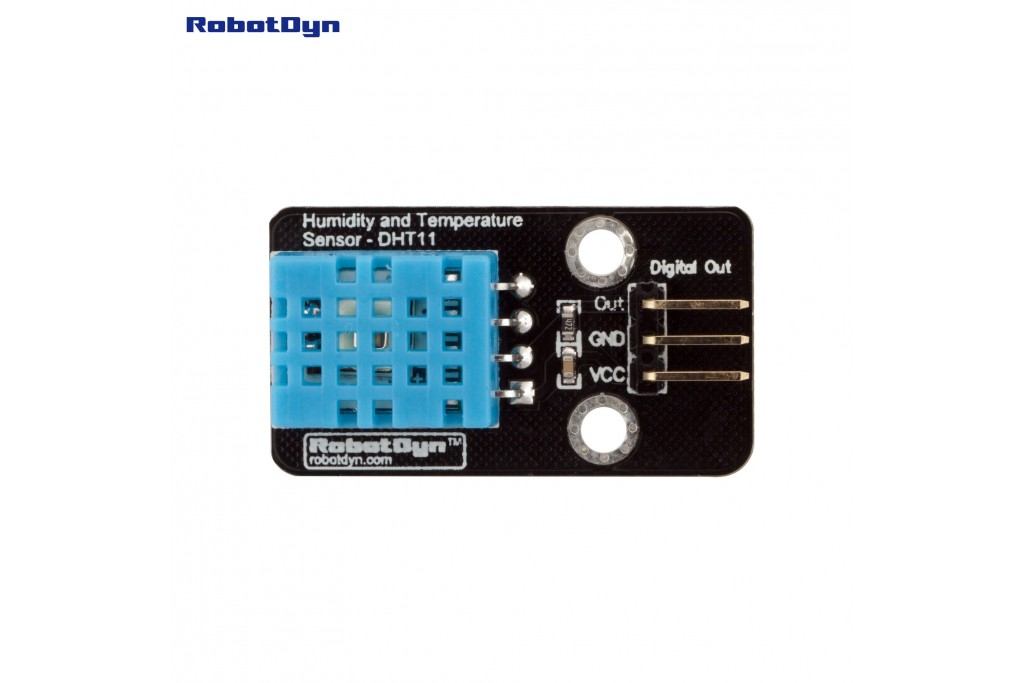

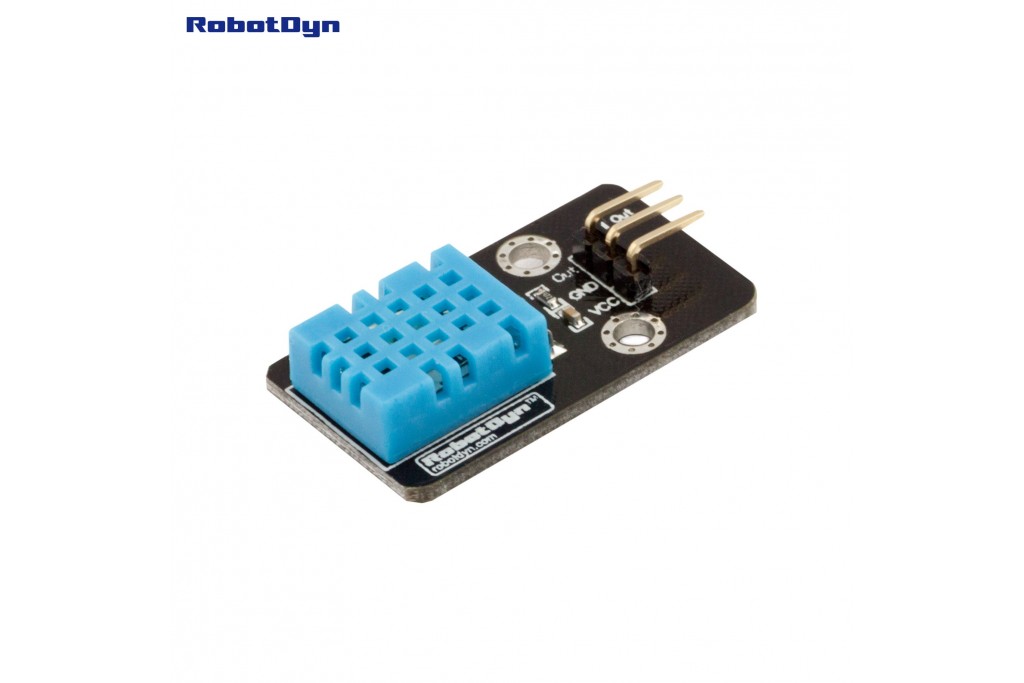

Temperature and Humidity Sensor - DHT11

RDYN0048

New product

More info

Details about Temperature and Humidity Sensor - DHT11

This is DHT11 sensor for measuring temperature and humidity. It is accurate and inexpensive sensor that includes an ADC to convert analog values of humidity and temperature. 8-bit microcontroller in the sensor is used for data conversion.
It provides reliable output results when the ambient humidity in the range from 20% RH to 90% RH, and a temperature range of 0 ° C to 50 ° C. It covering the needs of most home and everyday application conditions.

Technical details:

  • Power supply: 3.3-5VV
  • Current: 2.5mA max use of current during conversion (when data request)
  • Humidity: 20 - 90% ± 5%
  • Temperature: 0 - 50º ± 2%
  • Sampling rate: ≤ 1 Hz

Documents

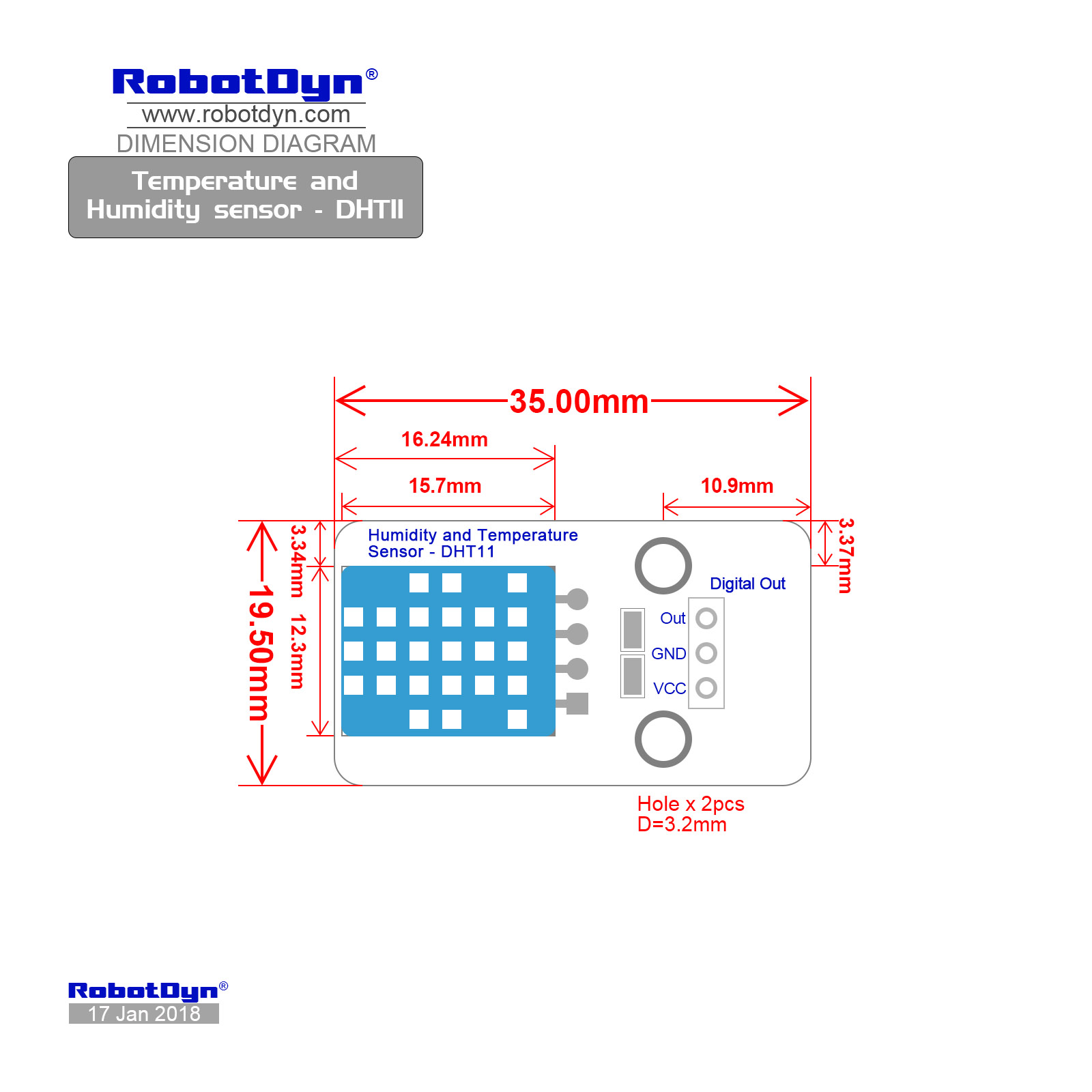

Dimensional drawing

Dimensions Temperature and Humidity sensor - DHT11 Dimensions Temperature and Humidity sensor - DHT11

Pinout

Pinout Temperature and Humidity sensor - DHT11 Pinout Temperature and Humidity sensor - DHT11

Schematic

Schematic of Temperature and Humidity sensor - DHT11
