DS1302 RTC Board

WSM0053

New product

7,000 Ks

More info

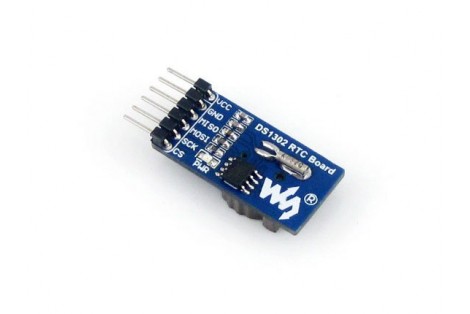

DS1302 RTC Board

Overview

  • Onboard serial RTC chip DS1302
    • Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
    • Optional format : 24-hour OR 12-hour with an AM/PM indicator
    • Supports trickle-charge for the backup battery
  • Universal 32.768kHz crystal
  • Onboard battery holder
  • Features SPI interface, supports 3-wire and/or 4-wire sync serial communication

Specifications

  • Operating voltage: 2.0V ~ 5.5V
  • Backup battery voltage : 3.0V ~ 5.0V
  • Operating temperature : 0°C ~ +70°C
  • Power consumption : <1mW (keeping Clock and RAM data)
  • Dimension : 31mm * 15mm

Applications

  • Hand-held device
  • Electronic watch
  • Electronic clock

Photos


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/DS1302_RTC_Board
