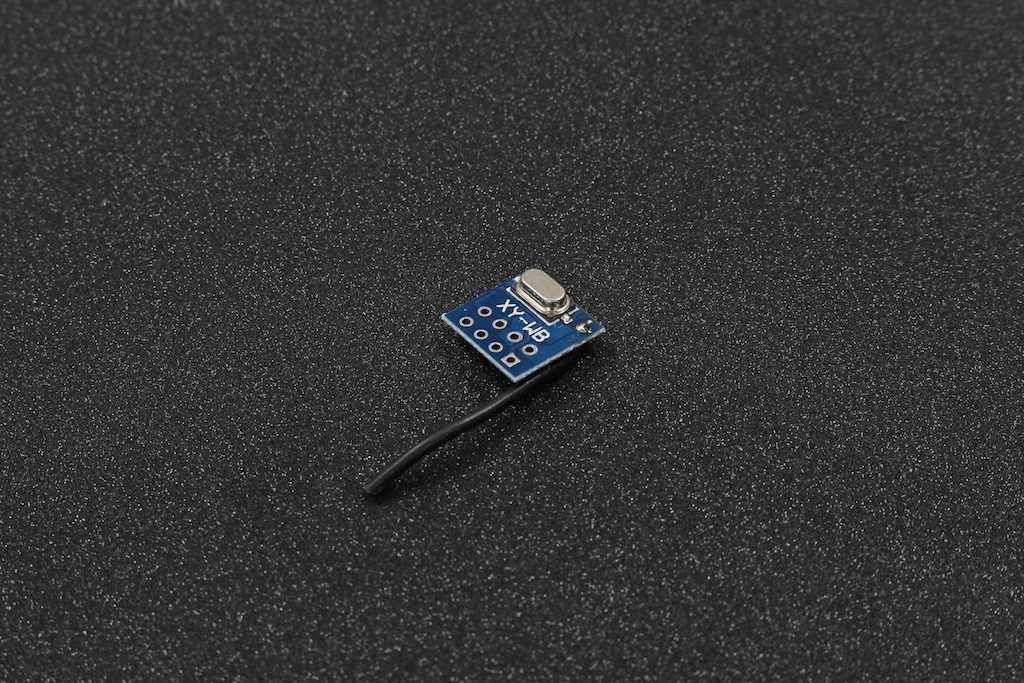

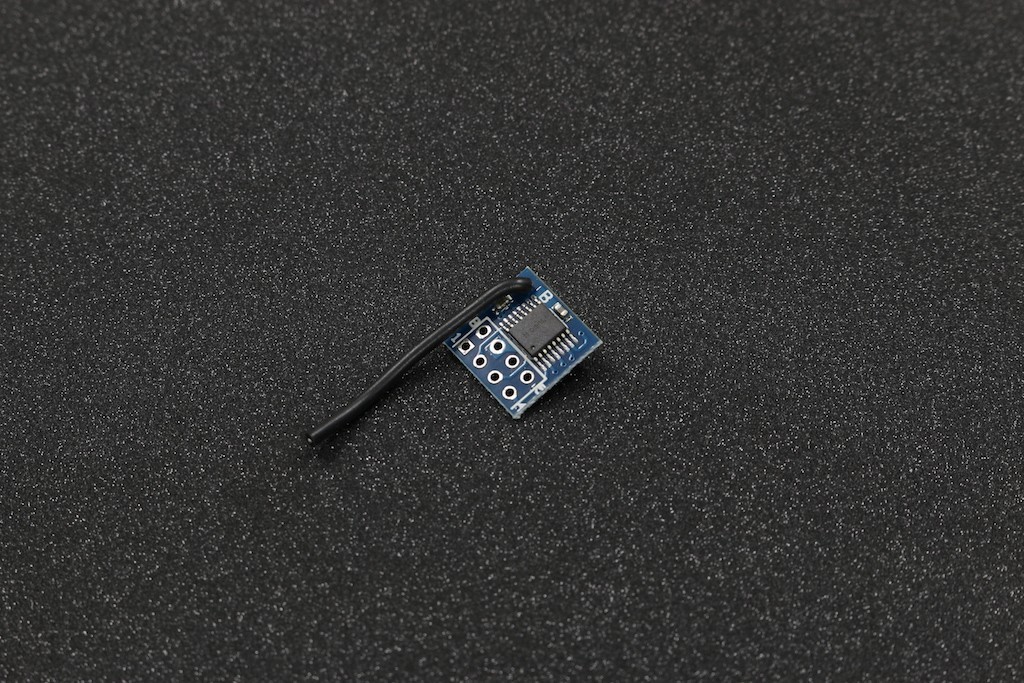

XY-WB 2.54Pin Headed 2.4G 3.3V Wireless Transceiver Module

Reference: MD0300

Condition: New product

Send to a friend

Send to a friend

XY-WB 2.54Pin Headed 2.4G 3.3V Wireless Transceiver Module

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about XY-WB 2.54Pin Headed 2.4G 3.3V Wireless Transceiver Module

Product introduction:
Model: XY-WB
Operating voltage: 2.2-3.6 V
Operating temperature: -40 ~ 85 Celsius
Transmission current: 15-24mA
Receive current: 18mA
Sleeping Current: 6uA

Specifications

Information, open source stm8 + LT8920 procedures, schematics, IC data, etc. Optional OUR stm8 small system board as a DEMO board, connect the line will be able to demonstrate, to facilitate your follow-up development
Cost-effective 2.4G communication module, B version can be welded 2.54 pitch pin connector to facilitate debugging DuPont line, A version can be plug-in welding, reduce the board size and reduce alignment for toys, model aircraft and other products transceiver.
