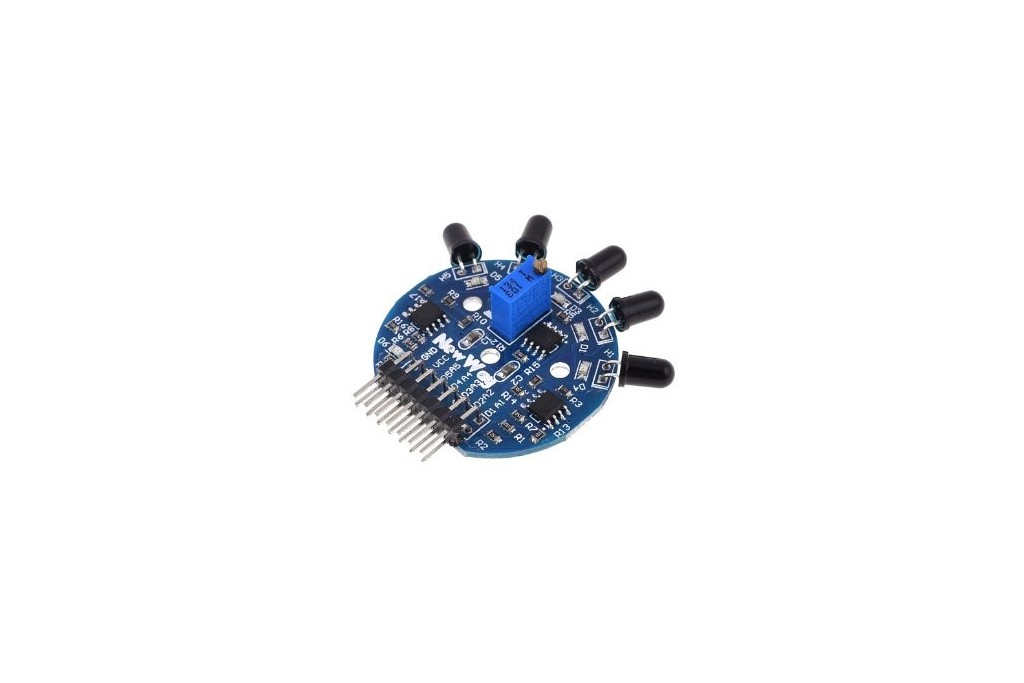

5 Channel Flame Sensor

MD0083

New product

More info

Detail about 5 Channel Flame Sensor

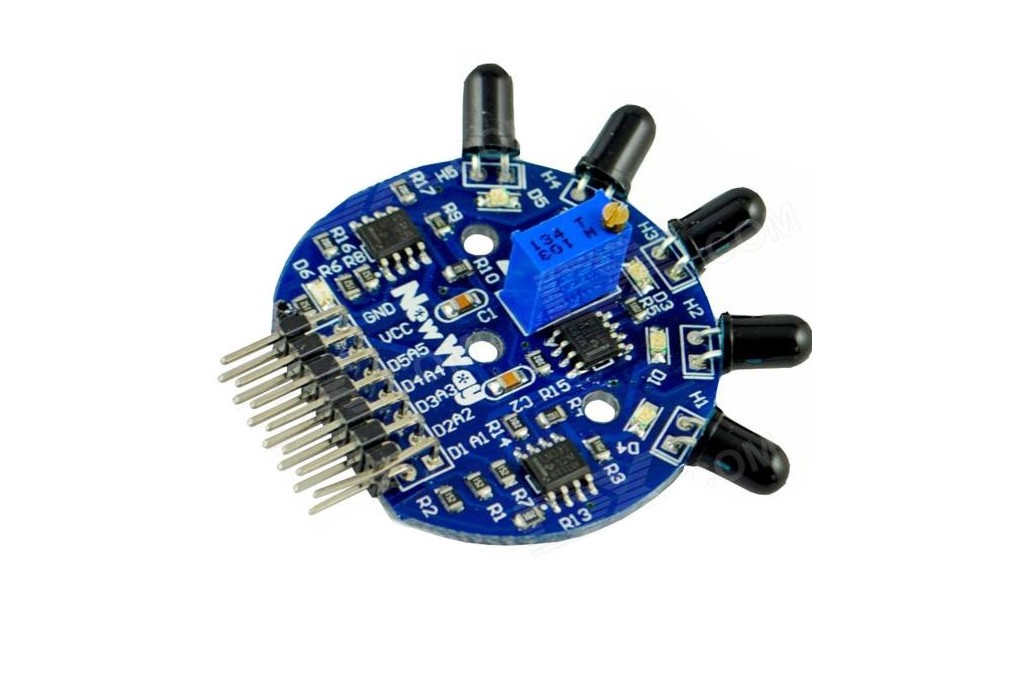

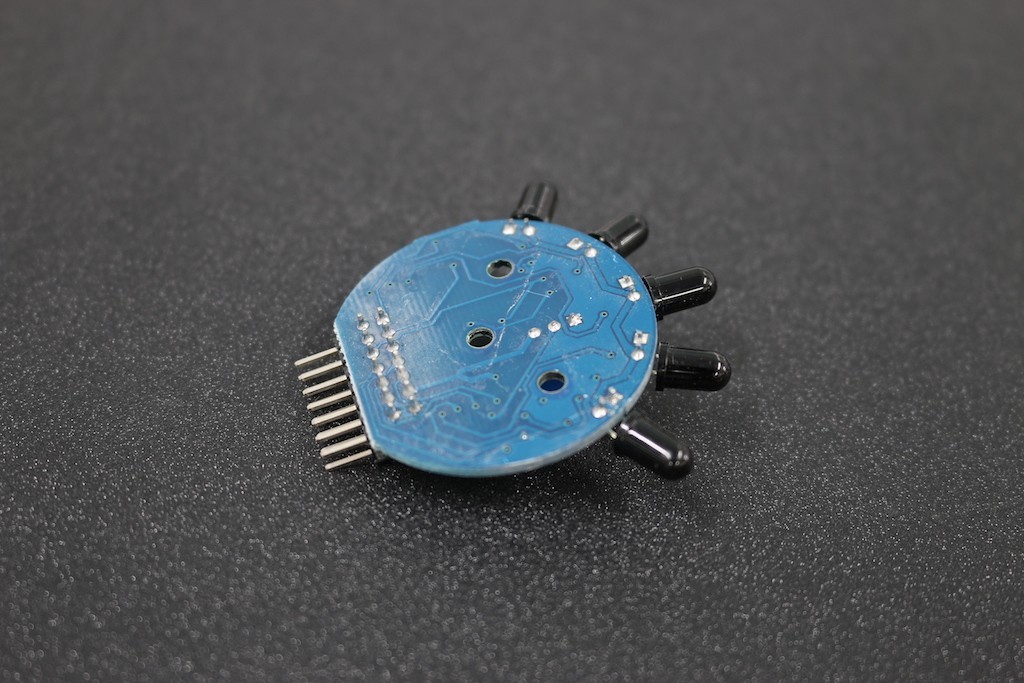

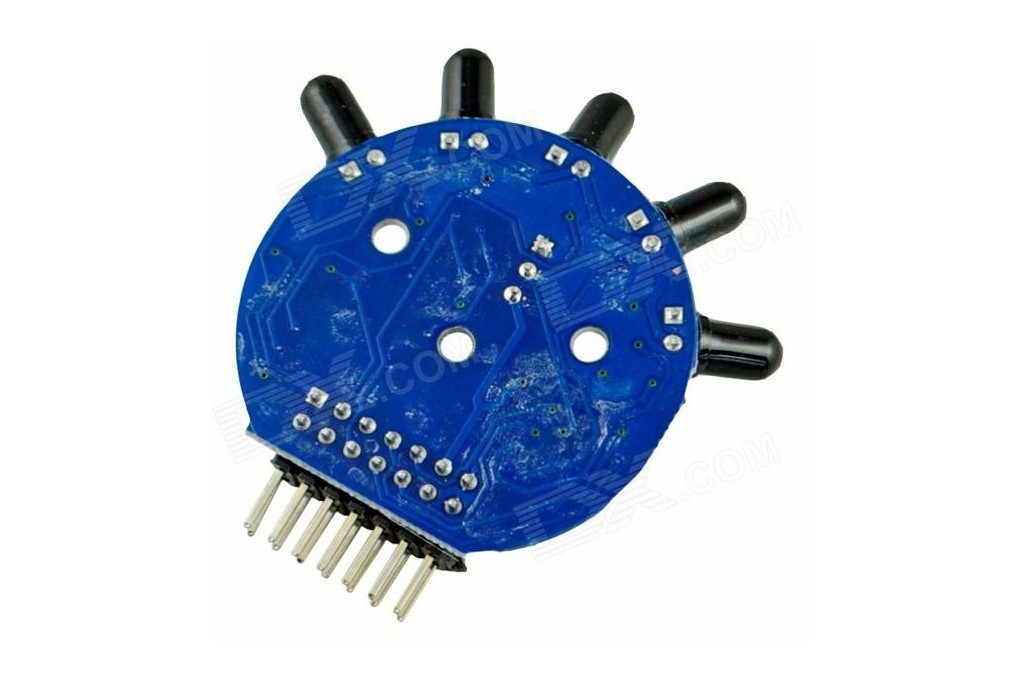

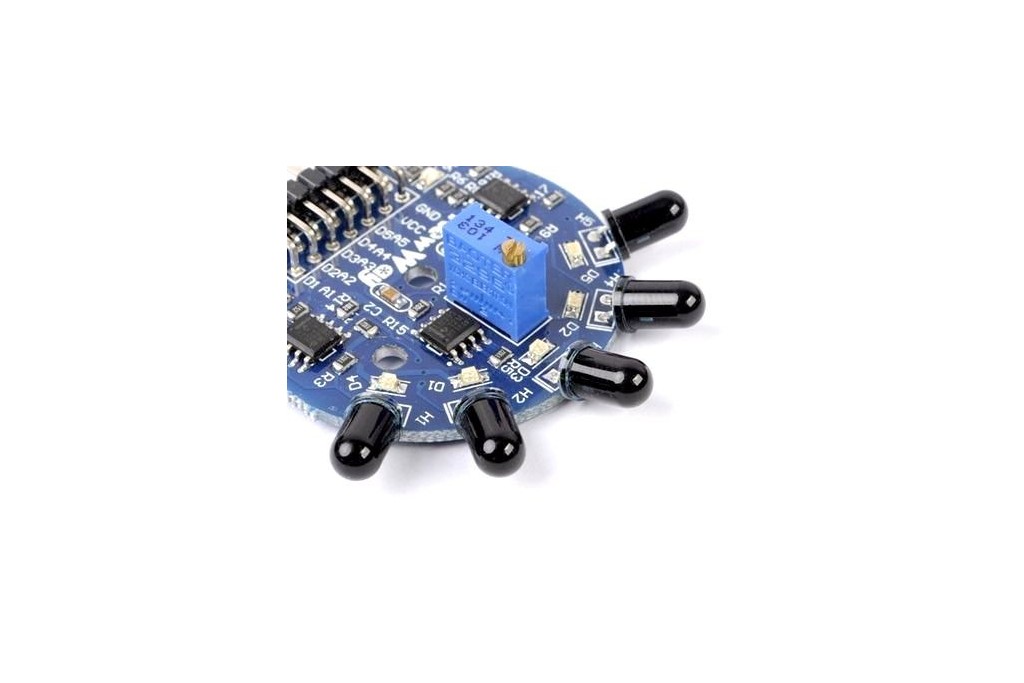

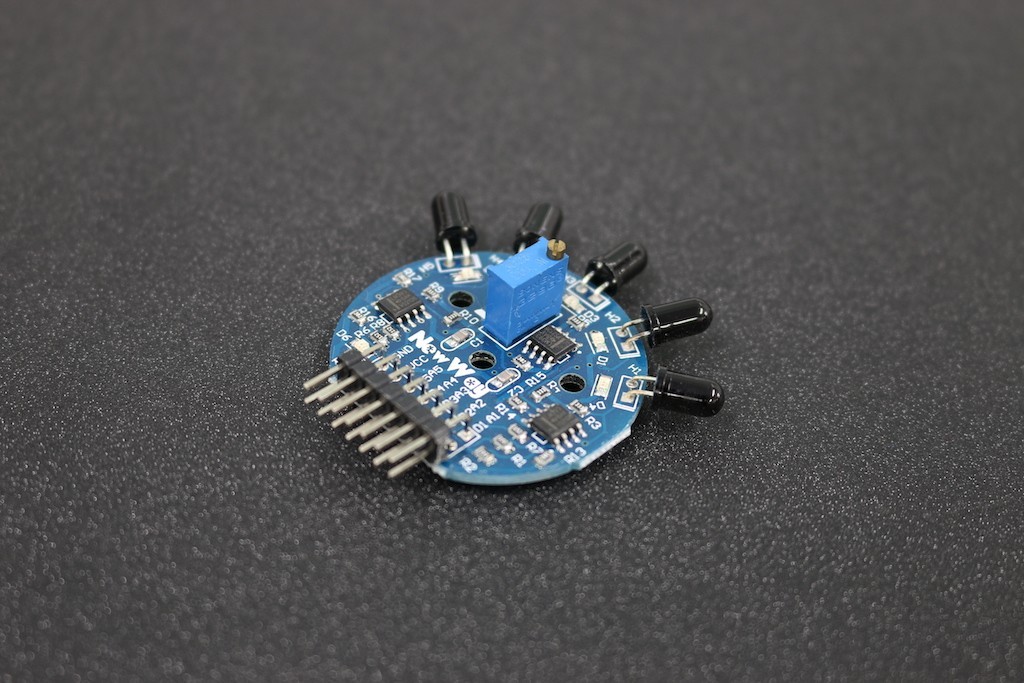

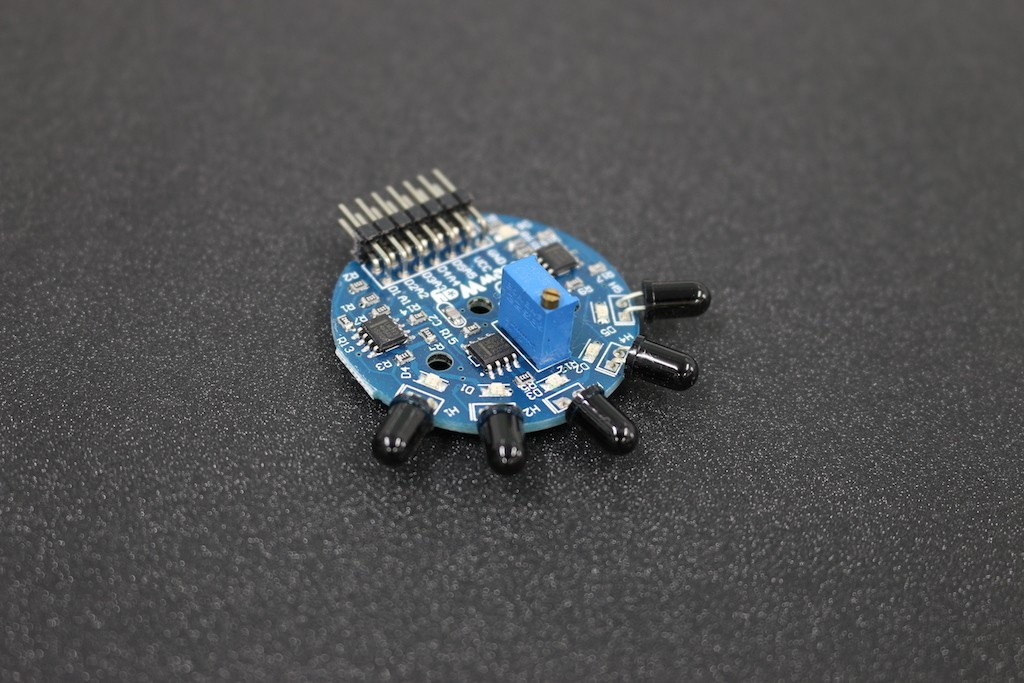

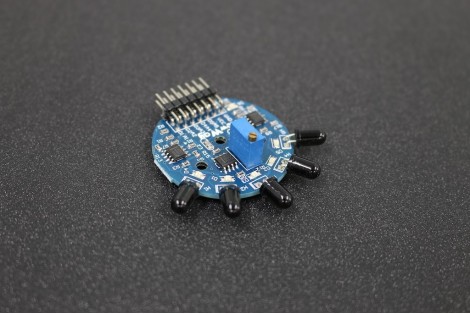

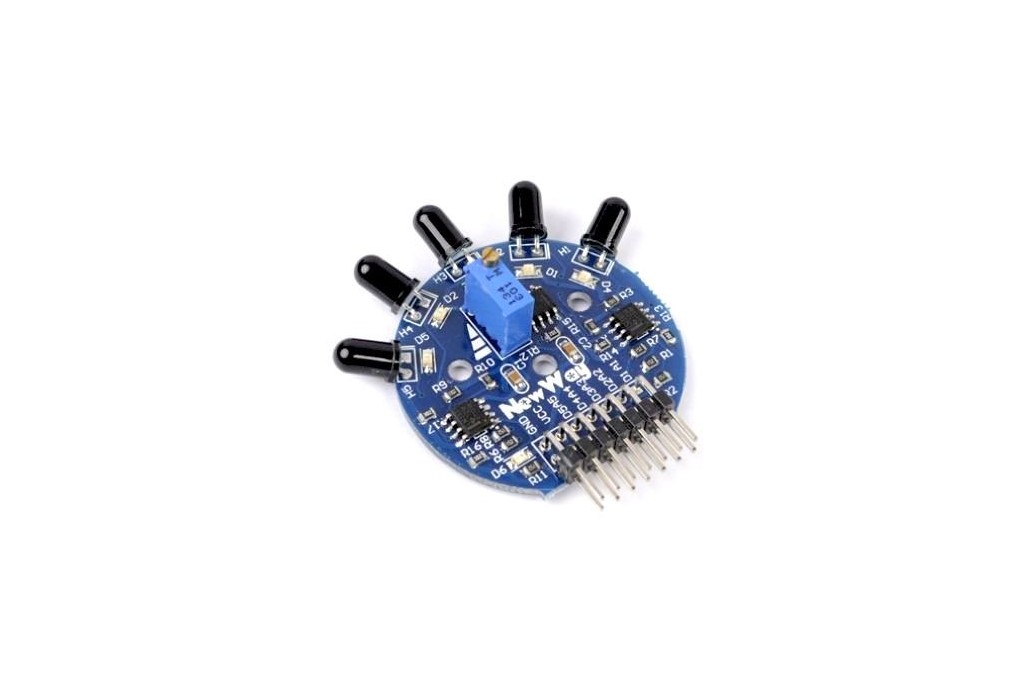

5-Channel Flame Sensor Module is a 5 channel flame detector module used to detect flame in larger area( >120 degree). If you need a robot which should detect any fire around, then this module will be very useful for you. It detects the fire with 5 flame sensors which are arranged with 30 degrees. This module outputs analog signal, which would be more precisely, and also digital signal which would be more easy to use, you can adjust the digital output sensitivity by the on-board potentiometer. The 5 LED indicators are helpful in your debugging, the high-precision resistors also makes this sensor more precise than other flame sensors.
Flame sensor design using the detection range (normal detection range of a single flame sensor probably about 30 °, as the distance increases, the range decreases, the detection range of the product is greater than 120 °) Able to output a digital signal (high and low), easy to use Can output the analog signal (voltage signal), the signal can be accurately measured, for high precision applications All five outputs with status indicators, so whether in debug or in practical use has brought great convenience Adjustable detection range digital output, analog output sensitivity adjustable design flexibility Using 1% resistor design (flame sensor available in the market are designed with a resistance of 5%), the signal output is more accurate for high-precision measurements of the occasion demands Onboard 3 M3 mounting holes for easy installation 3.3V-9V power supply, compatible with most of the SCM system SMT chip devices all use automatic welding technology, military quality trustworthy How it works: This product is capable of detecting flames emitted wavelength range of 700-1100 nm, respectively near infrared short wave (SW-NIR), by means of an electrical signal (voltage signal) is output.

 Specifications

  • Detecting range: >120 degree
  • Analog and digital outputs
  • On-board potentiometer and indicators
  • 1% resistors to make this module more reliable and precise
  • Power: Medium Power
  • 2. Usage: Light-emitting Diode
  • 3. Structure: PNP
  • 4. Special Function: Common Point Contact Diode
  • 5. Frequency: High Frequency
  • 6. Type: Amplifier
  • 7. Construction: Schottky Diode
  • 8. Material: Silicon
  • 9. Sensor length: 45mm ( 1 2 Install Style: Plug-in
  • 10. Function: Power Triode
  • Operating Voltage: 3.3V – 9V
  • Dimensions: 5.2 cm x 5.0 cm x 1.4 cm
  • Weight: 8g

Reviews

No customer reviews for the moment.

Write a review

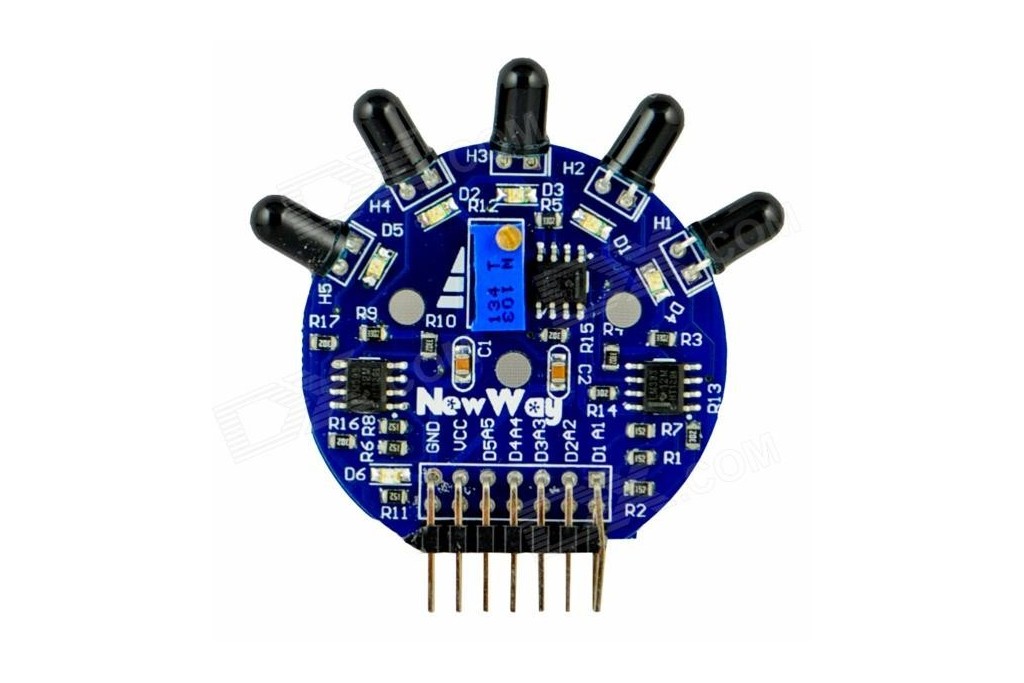

5 Channel Flame Sensor
