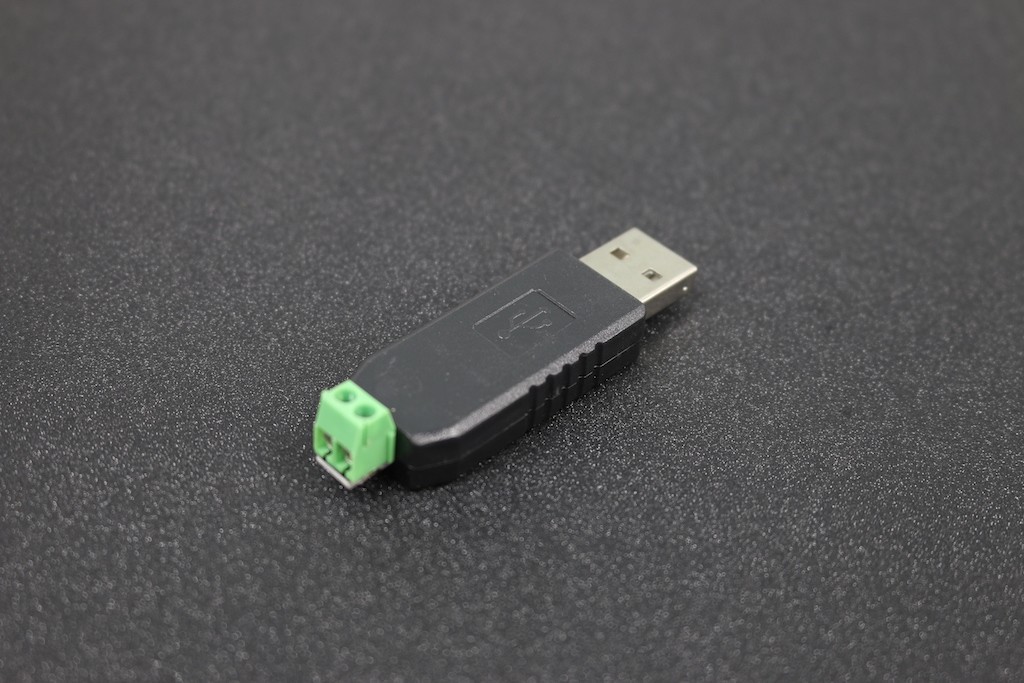

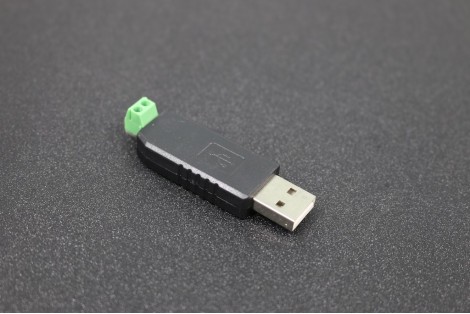

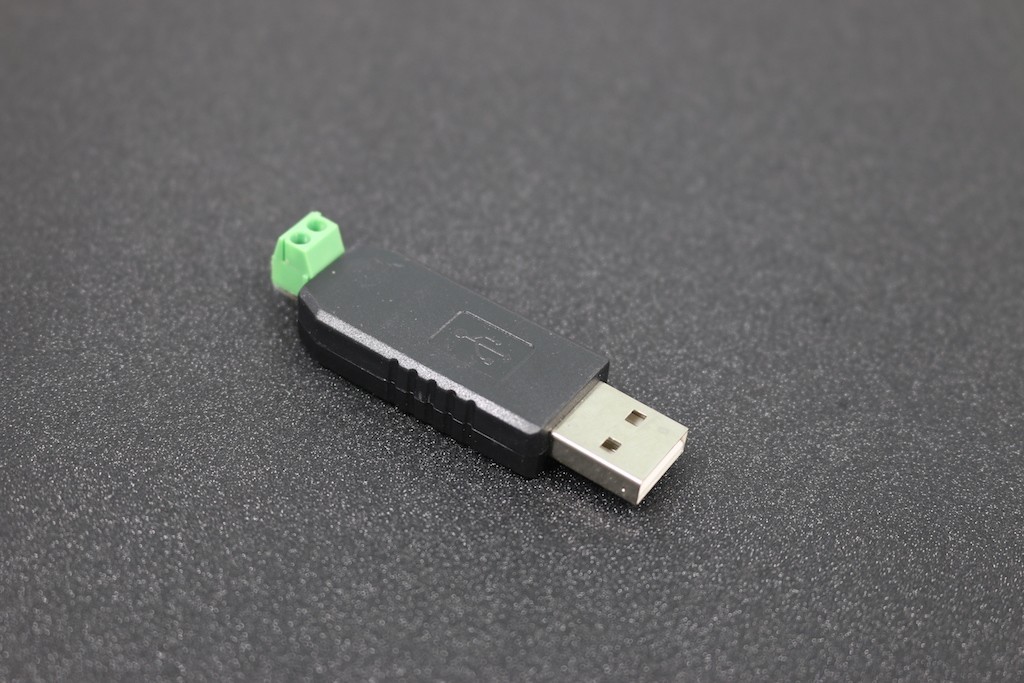

USB to RS485 485 Converter Adapter

MD0099

New product

More info

Detail about USB to RS485 485 Converter Adapter

Controlling / Communicating with RS-485 devices from your PC has never been easier! This device is plug-and-play - It shows up as a serial/com port and can be accessed from applications or hyper-terminal. This converter provides half-duplex RS-485 communication. The Baud rate range is 75 bps to 115200 bps, maximum up to 6 Mbps. No external power is required for operation. This device uses the widely supported Prolific PL2303 HXA USB-to-Serial chip - Drivers are readily available for download here ( http://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41 ) (Windows XP, Vista, Mac OSX) and may already be included in your operating system (Windows 7 and Linux).

Specifications

  • Support System: Windows XP, Vista, Windows 7, Linux , Mac OS , and WinCE5.0 drive
  • Supports baud rate range: 75bps – 115200 bps, up to 6Mbps
  • Work temperature range: -40°C ~ +85°C
  • Communication distance: 1200m (max)
  • Dimension: Approx. 6x1.7x0.8cm (L*W*H)
  • Color: Black
  • USB A Male
  • Screw Terminal Block (2 Terminals (20AWG - 26AWG Wire))

Applications

  • All kinds with RS485 port device parameter settings, data communication
  • Short distance, such as parameter settings of the computer peripheral equipment, the use of common data lines can be
  • LED display of communication data
  • Machine PLC data reading and writing
  • Monitoring data read and write, and PTZ control
  • Centralized control of household electrical appliances
  • Access Control System; card
  • A variety of industrial automation; instrumentation
  • Parking; bus fees
  • Dining Hall; staff attendance
  • Highway toll station; ATM machine

Note

  • Prolific does not have a Windows 8 / Windows 8.1 driver for this chipset.
