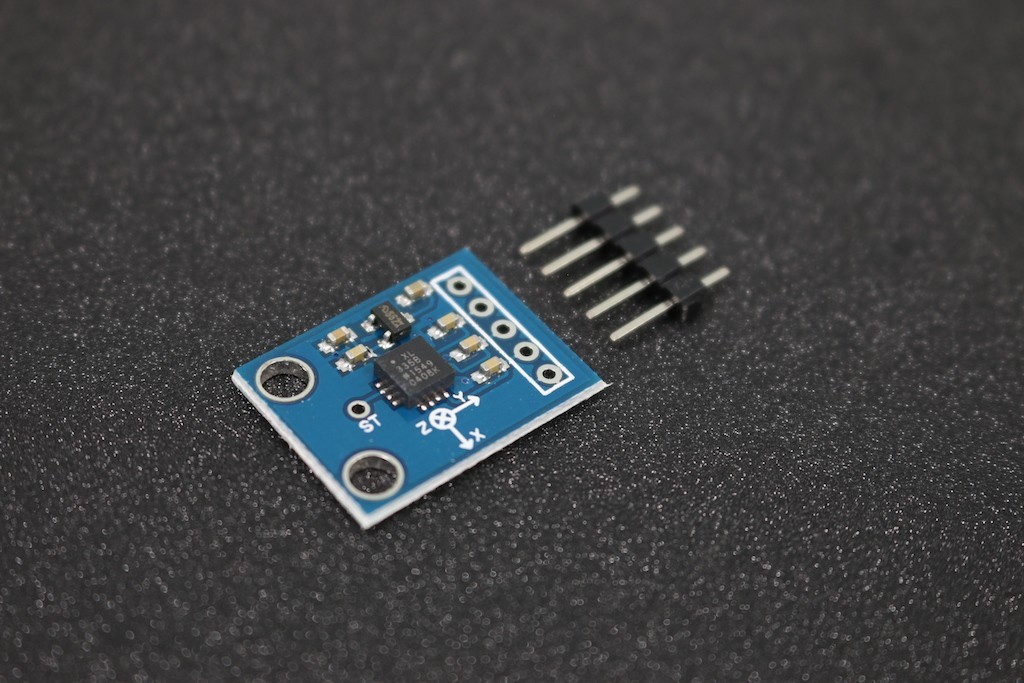

GY-61 ADXL335 Three-Axis Accelerometer Module

MD0103

New product

More info

Detail about GY-61 ADXL335 Three-Axis Accelerometer Module

General Description

The ADXL335 is a small, thin, low power, complete 3-axis accel- erometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

The user selects the bandwidth of the accelerometer using the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for the X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis.

The ADXL335 is available in a small, low profile, 4 mm ×
4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ).

 Specifications

 3 ~ 5 V power supply
 400uA supply current
 Analog output communication interface
 Operating Temperature -40 ° ~ 85 °

 Dimensions (L * W * H) 15.7mm × 20.3mm × 11.6mm

Features

  • 3-axis sensing
  • Low power : 350 μA (typical)
  • Single-supply operation: 1.8 V to 3.6 V
  • 10,000 g shock survival
  • Excellent temperature stability
  • BW adjustment with a single capacitor per axis
  • RoHS/WEEE lead-free compliant

Pin Map

  •  VCC power supply range of 3-5v
  •  X_OUT X-axis output
  •  Y_OUT Y-axis output
  •  Z_OUT Z-axis output
  •  GND Ground

Application

  • Cost sensitive, low power, motion- and tilt-sensing applications
  • Mobile devices
  • Gaming systems
  • Disk drive protection
  • Image stabilization
  • Sports and health devices
