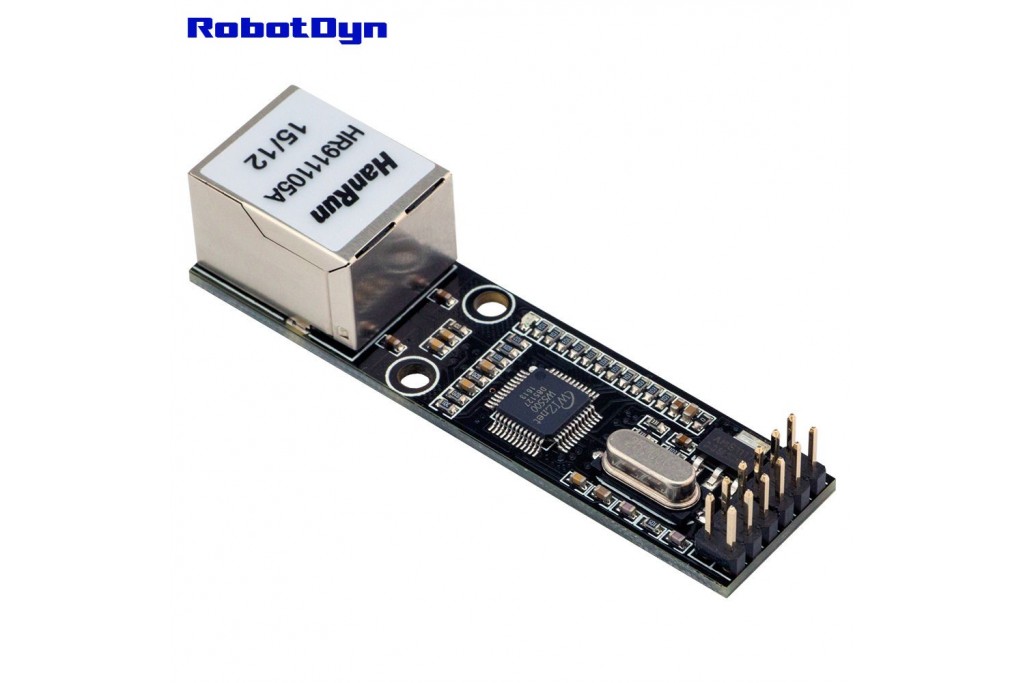

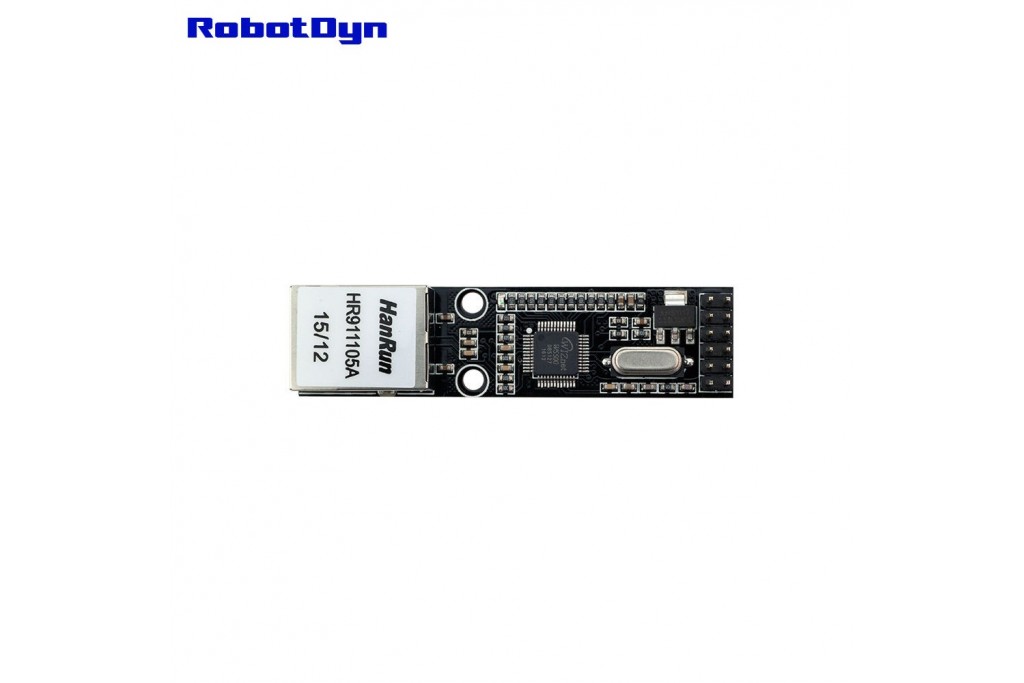

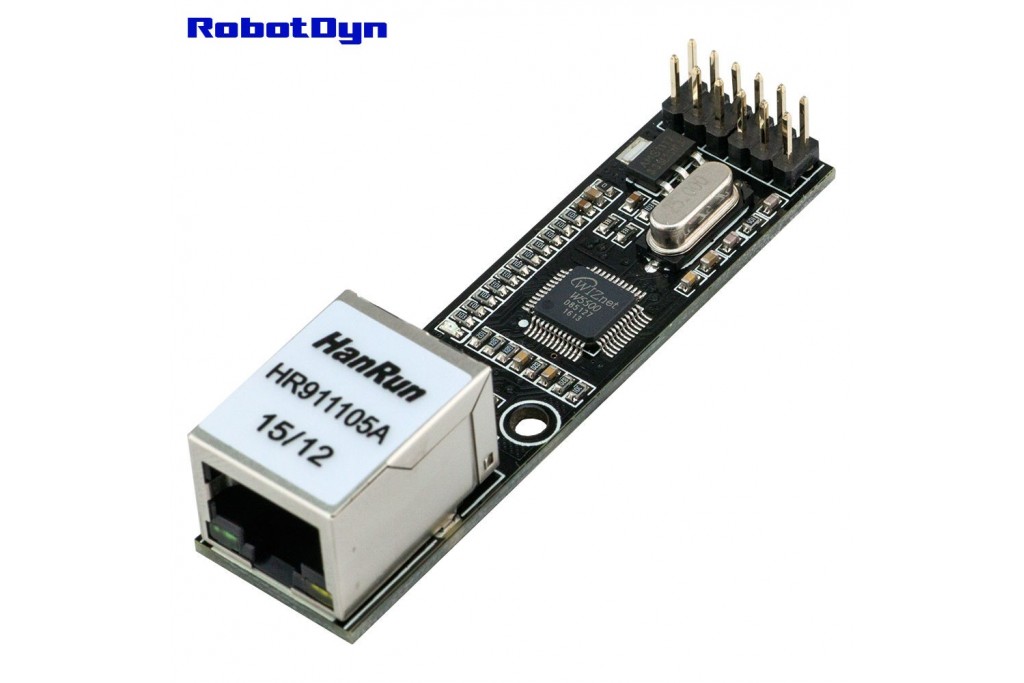

Ethernet Module - W5500, 3.3V/5V

RDYN0013

New product

11,700 Ks

More info

Details about Ethernet Module - W5500, 3.3V/5V

           The W5500 - Ethernet LAN Network Module can be used to provide your projects with internet connectivity.
The W5500 module enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10 / 100 Ethernet MAC and PHY embedded. Supports 8 independent sockets simultaneously.
The W5500 Ethernet module has a standard RJ-45 connection.
Support 3.3V and 5V input voltage and logic level from SPI.

Work with All AVR(Arduino) STM, ARM boards.

Documents

Dimensional drawing

Dimensions Ethernet module - W5500, 3.3V/5V Dimensions Ethernet module - W5500, 3.3V/5V

Pinout

Pinout Ethernet module - W5500, 3.3V/5V Pinout Ethernet module - W5500, 3.3V/5V

Schematic

Schematic of Ethernet module - W5500, 3.3V/5V
