Logic Level Converter (Bi-Direction)

RDYN0016

New product

1,500 Ks

More info

Details about Logic Level Converter (Bi-Direction)

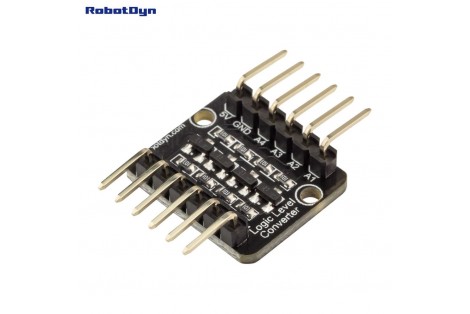

                 This logic level converter features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels. It can convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including I²C, SPI, and asynchronous TTL serial.

Documents

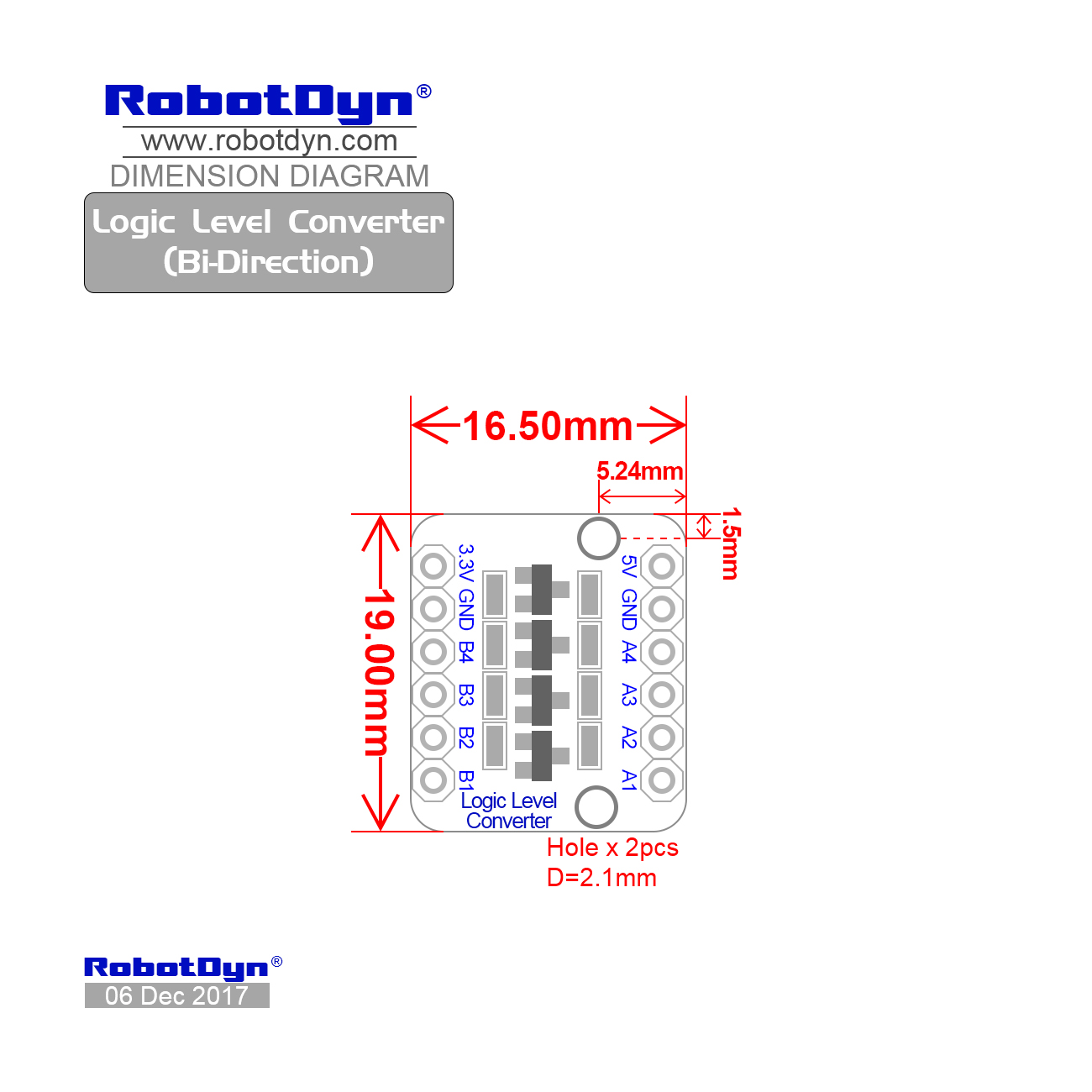

Dimensional drawing

Dimensions  Logic Level Converter (Bi-Direction) Dimensions  Logic Level Converter (Bi-Direction)

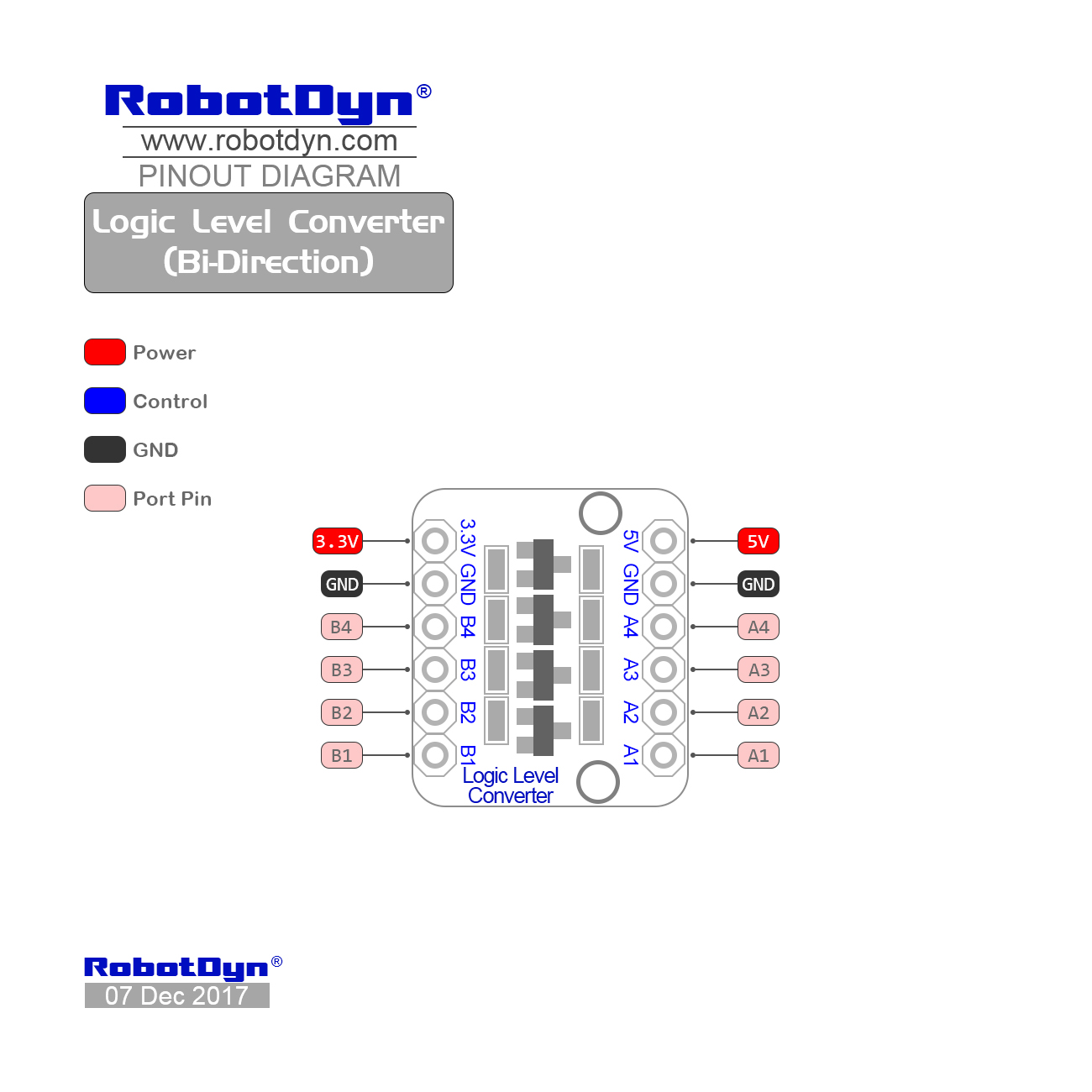

Pinout

Pinout  Logic Level Converter (Bi-Direction) Pinout  Logic Level Converter (Bi-Direction)

Schematic

Schematic of  Logic Level Converter (Bi-Direction)
