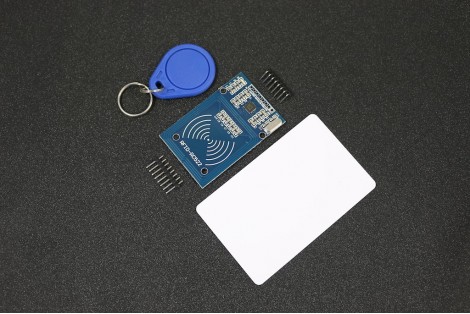

MFRC-522 RC522 RFID RF IC Card Sensor Module

MD0001

New product

More info

Detail about MFRC-R22 RFID Sensor

MF RC522 is applied to 13.56MHz contact less communication highly integrated chip card reader, is NXP for the "Three Tables" application launch of a low-voltage, low-cost, small size and non- contact card reader chip, smart instrumentation and portable handheld devices developed better choice. MF RC522 using advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contact less communication methods and protocols. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products. MFRC522 supports MIFARE Series higher speed non-contact communication, two-way data transfer rates up to 424kbit / s. As a highly integrated 13.56MHz card reader new family of chips, MF RC522 MF RC500 and MF RC530 and there are many similarities, but also have many features and differences. It is between the host communication using SPI mode, helps to reduce connection, reduce PCB board size and cost.

Specifications

  • Current : 13-26mA / DC 3.3V
  • Idle Current :10-13mA / DC 3.3V
  • Sleep current : <80uA
  • Peak current : <30mA
  • Operating Frequency : 13.56MHz
  • Supported card types : Mifare1 S50, Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire
  • Product Physical Characteristics : Dimensions: 40mm × 60mm
  • Environmental Operating temperature : -20-80 degrees Celsius
  • Environment Storage temperature : -40-85 degrees Celsius
  • Relative Humidity : 5% -95%

DataSheet
