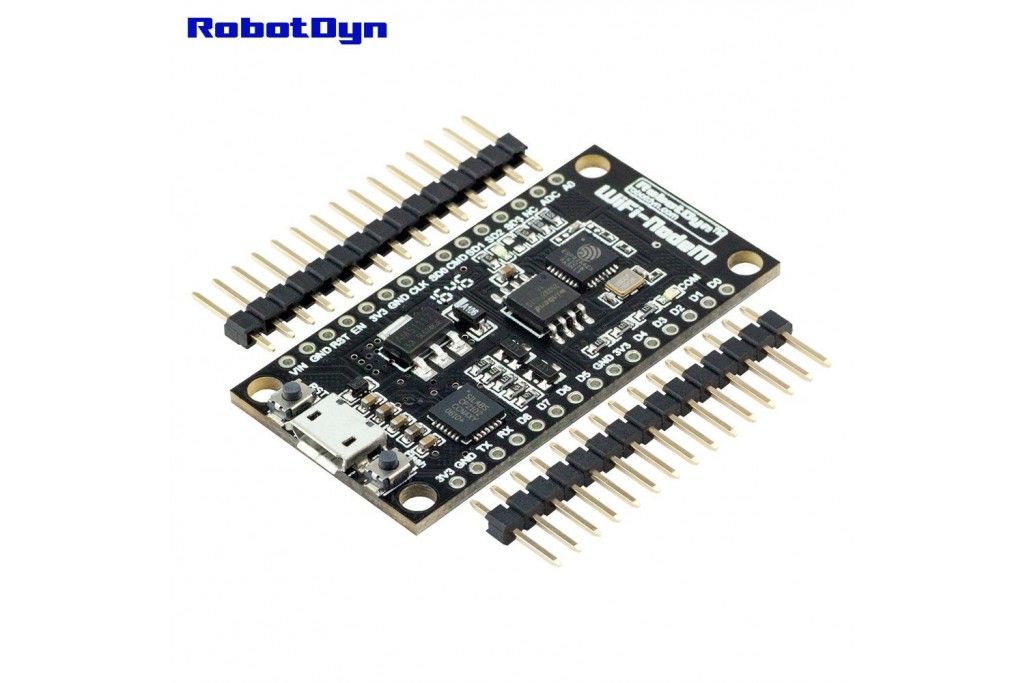

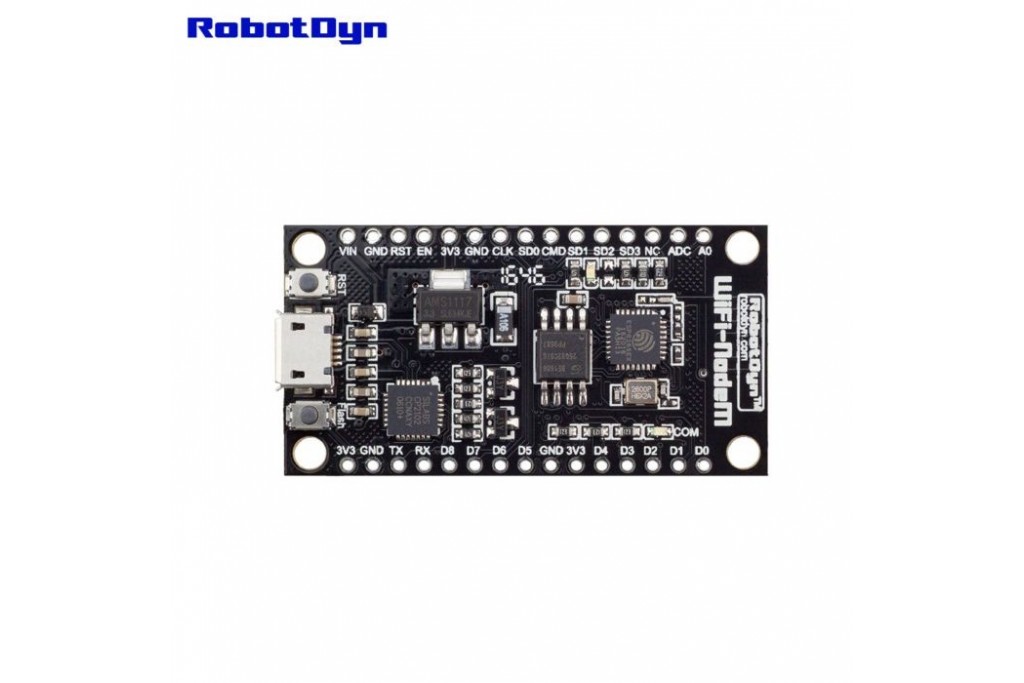

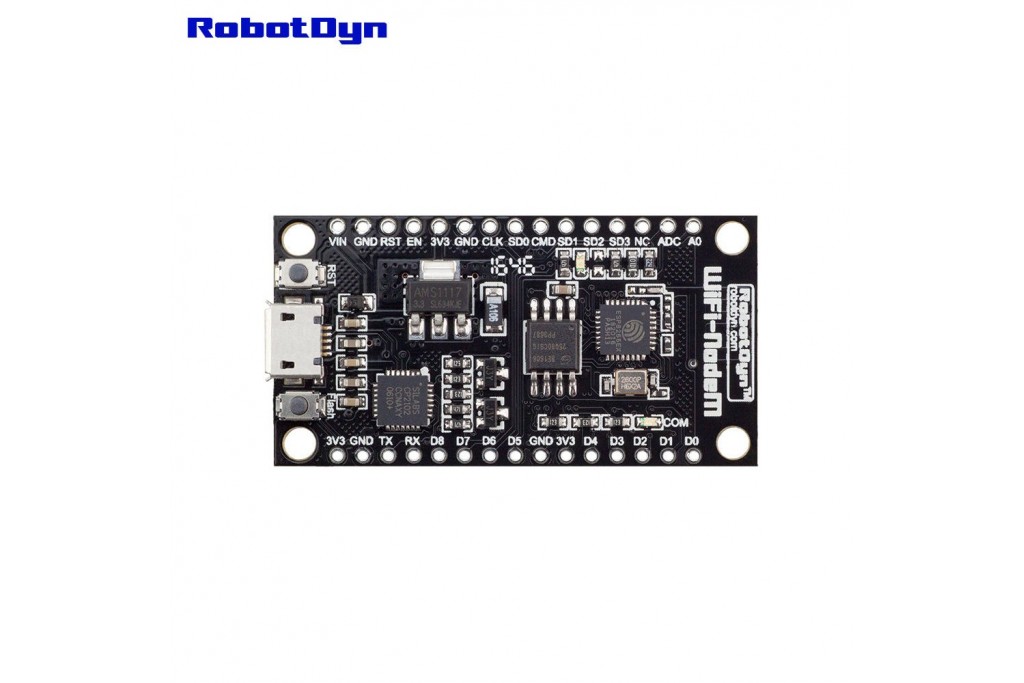

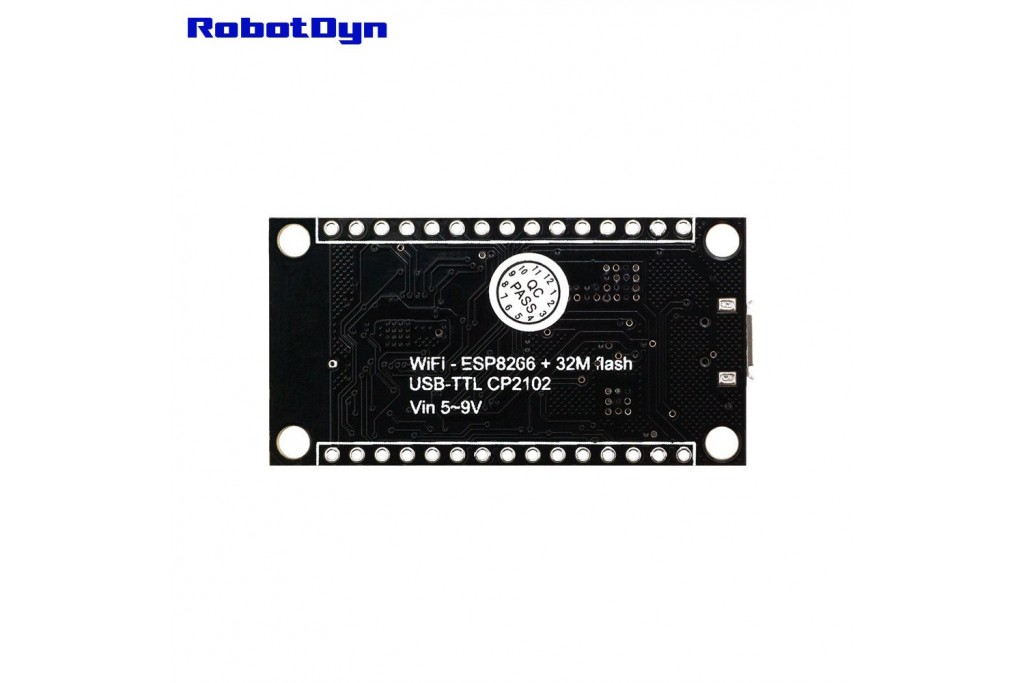

Details about WIFI NodeM ESP8266, CP2102

WIFI NodeM ESP8266 (USB-TTL CP2102), module is based on widely explored esp8266 System on Chip from Expressif.
WIFI NodeM ESP8266, compatible for NodeMCU board. We add memory size to 8/16/32Mb (megabit). This better, for make normal project with big library.
On board have USB-TTL serial converter CP2102, with Micro-USB socket.
PowerIn for DC 4~9V, to pin VIN.
Pin headers 2.54mm (0.1") 15 pins x 2 lines in set. Not soldered.
It combined features of WIFI accesspoint and station + microcontroller and uses simple LUA based programming language.
WIFI NodeM ESP8266, offer:

  • Arduino-like hardware IO. And can programming in Arduino IDE
  • Event-driven API for network applicaitons
  • 10 GPIOs D0-D10, PWM functionality, IIC and SPI communicaiton, 1-Wire and ADC A0 etc. all in one board
  • Wifi networking (can be uses as access point and/or station, host a webserver), connect to internet to fetch or upload data.
  • For developing can use install to breadboard.

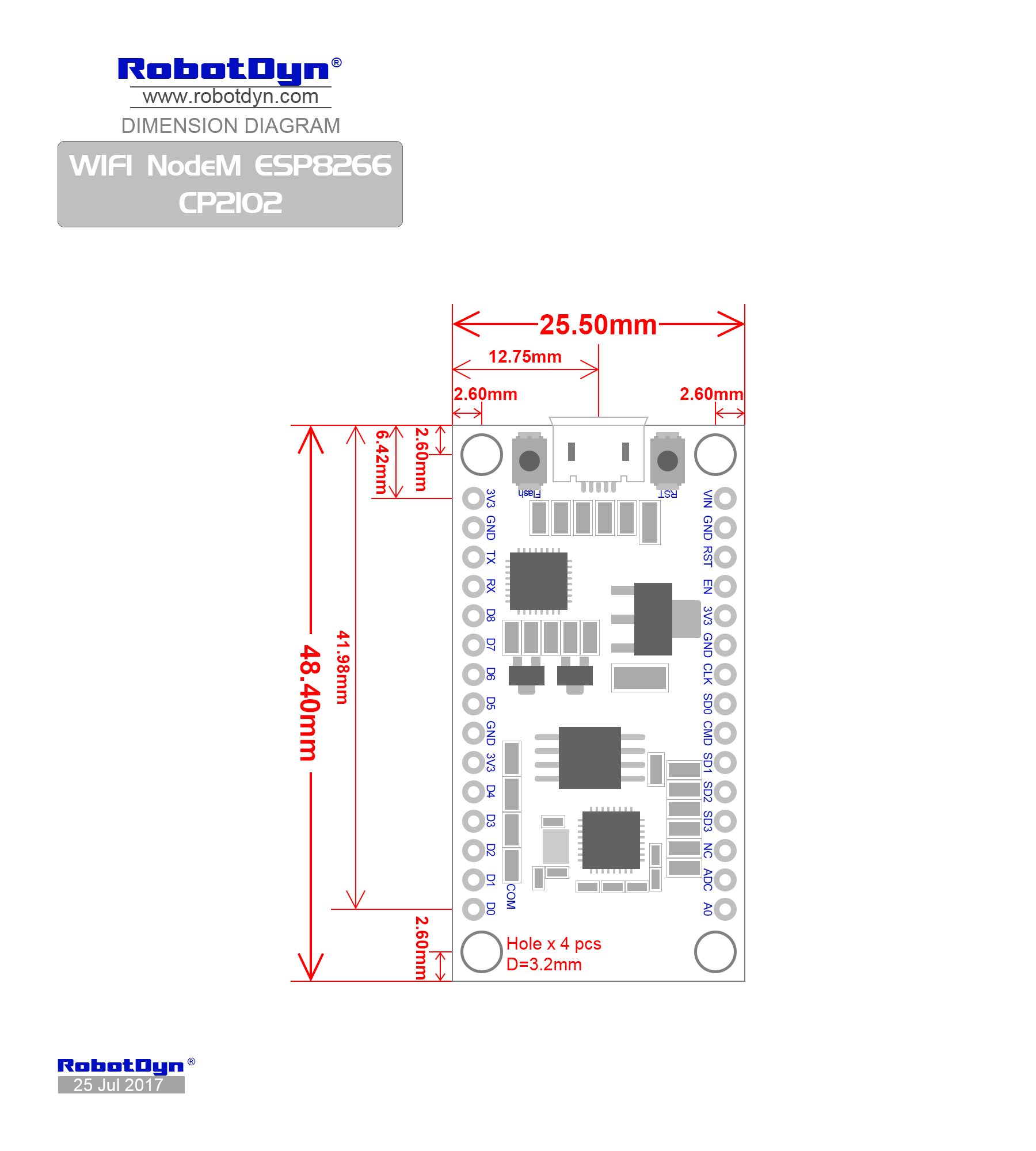

Dimensional drawing

Dimensions WIFI NodeM ESP8266, CP2102 Dimensions WIFI NodeM ESP8266, CP2102

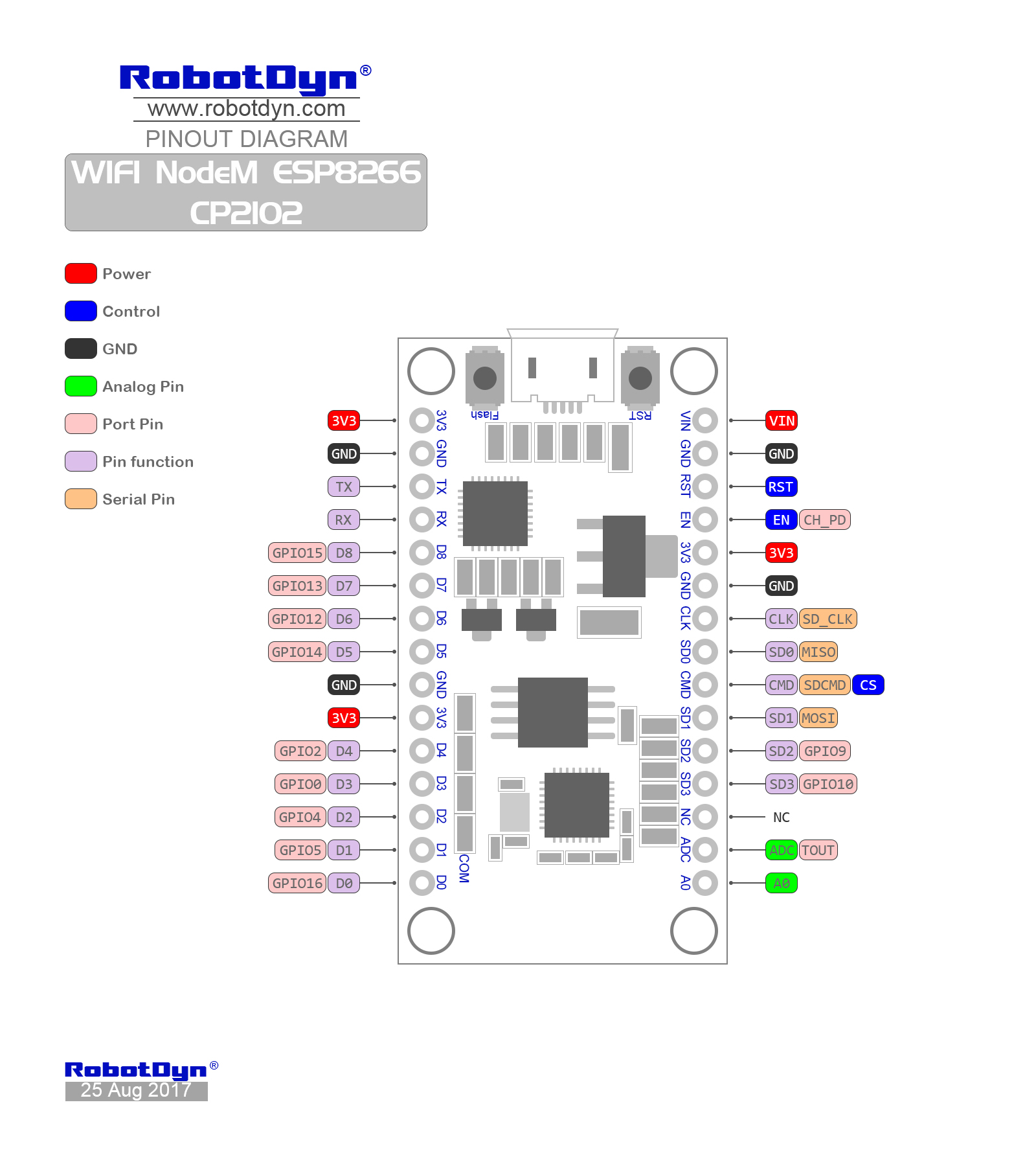

Pinout WIFI NodeM ESP8266, CP2102 Pinout WIFI NodeM ESP8266, CP2102


Schematic of WIFI NodeM ESP8266, CP2102
