I2C Graphic 128x64 LCD Adapter

RDYN0092

New product

More info

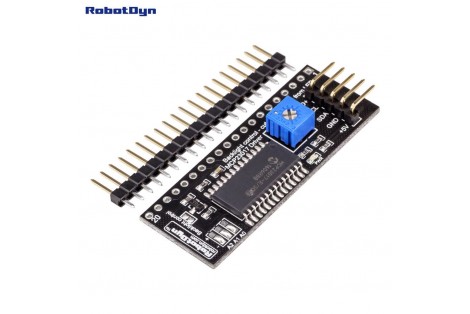

Details about I2C Graphic 128x64 LCD Adapter

This is I2C adapter for Graphic LCD 128x64, very suitable for interactive work with Arduino, Raspberry.

In this adapter used driver MCP23017. For instruction and libraries you can find information here: www.gammon.com.au/forum/?id=10940

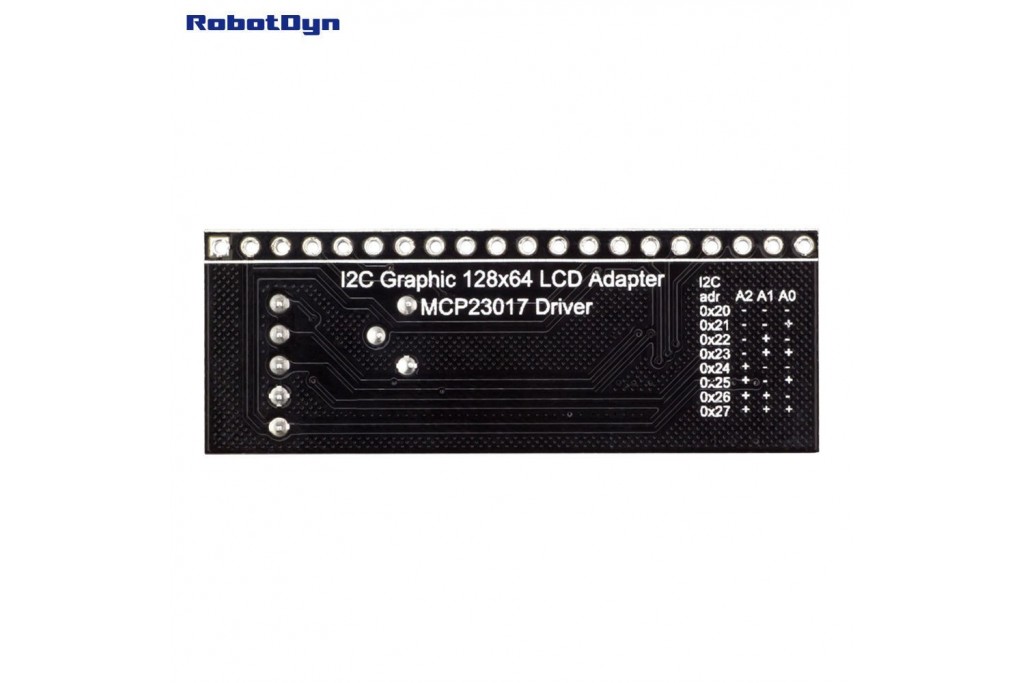

For change I2C adress you can folow infromation on bottom side of board.

Control of backlight: Normal backlight use power 5V from +5V and can ajust with potentiometer. If you need control of backlight from microcontroller, pls cut-off connection of backlight on top side of board, and connect the Pin LED+ to any PWM out of microcontroller.

In set have male pin-headers for connecting adapter to Graphics LCD screen.

Documents

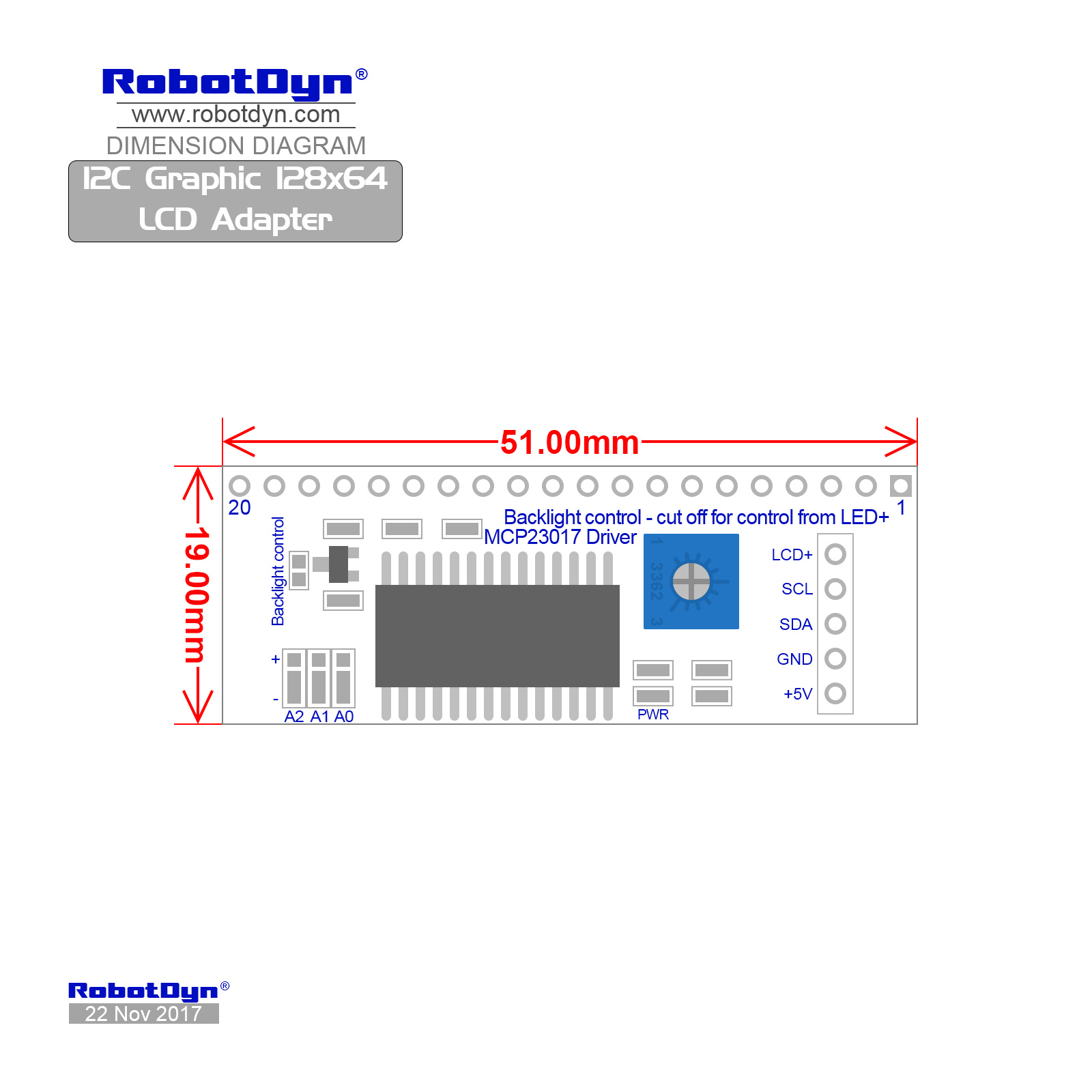

Dimensional drawing

Dimensions I2C Graphic 128x64 LCD Adapter Dimensions I2C Graphic 128x64 LCD Adapter

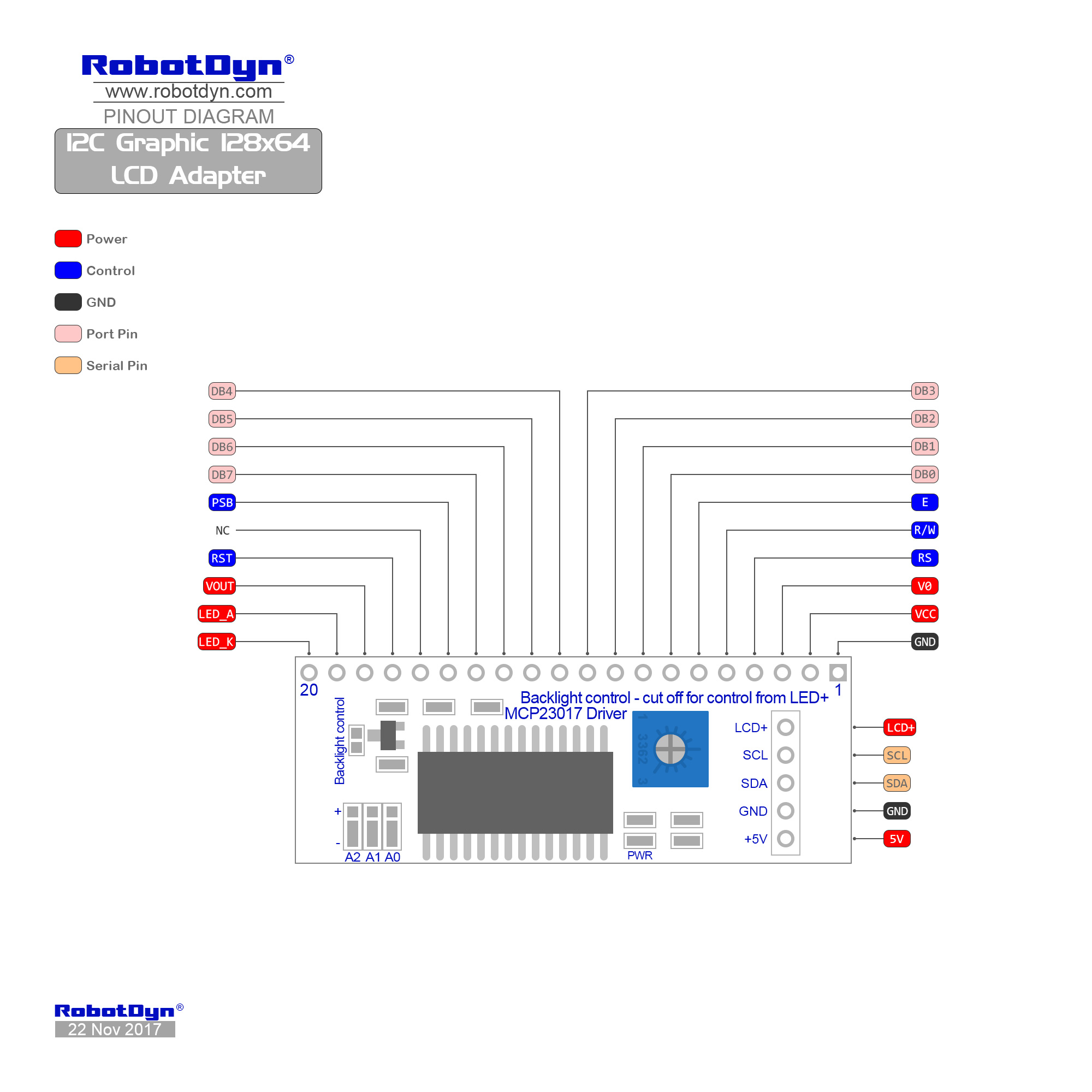

Pinout

Pinout I2C Graphic 128x64 LCD Adapter Pinout I2C Graphic 128x64 LCD Adapter

Schematic

Schematic of I2C Graphic 128x64 LCD Adapter
