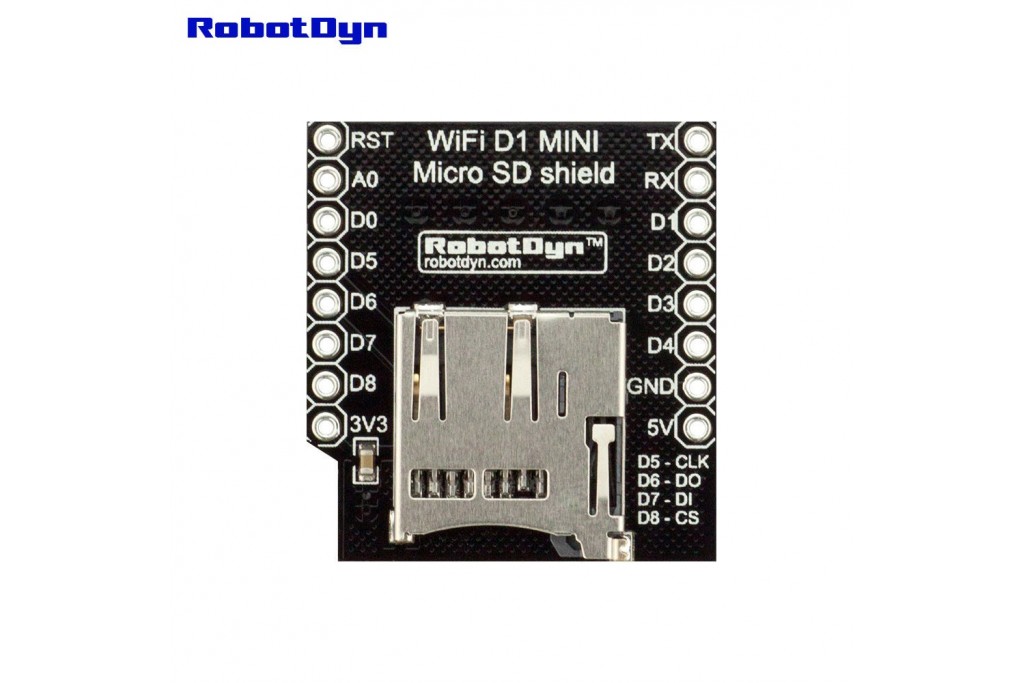

WIFI D1 Mini - Shield MicroSD-card

RDYN0116

New product

2,500 Ks

More info

Details about WIFI D1 Mini - Shield MicroSD-card

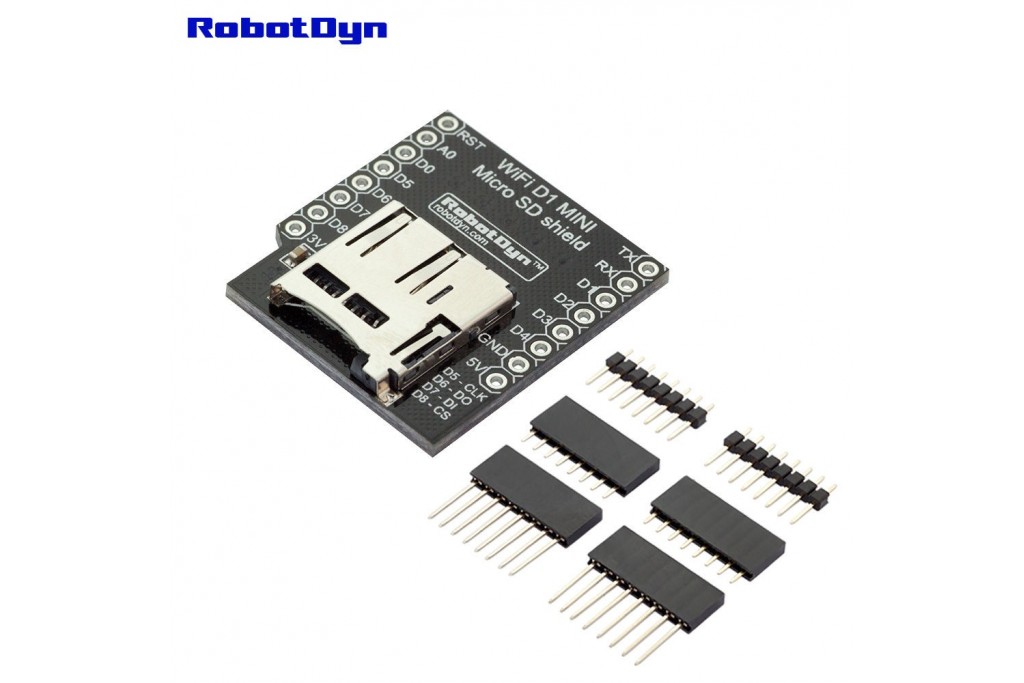

Micro SD card Shield for WeMos D1 mini, with pin-headers set:Male Pin Header 1x8pins = 2 pcs, Female Pin Header -BLACK 1x8pins = 2 pcs,  Stackable Header - BLACK 1x8pins = 2 pcs.

Documents

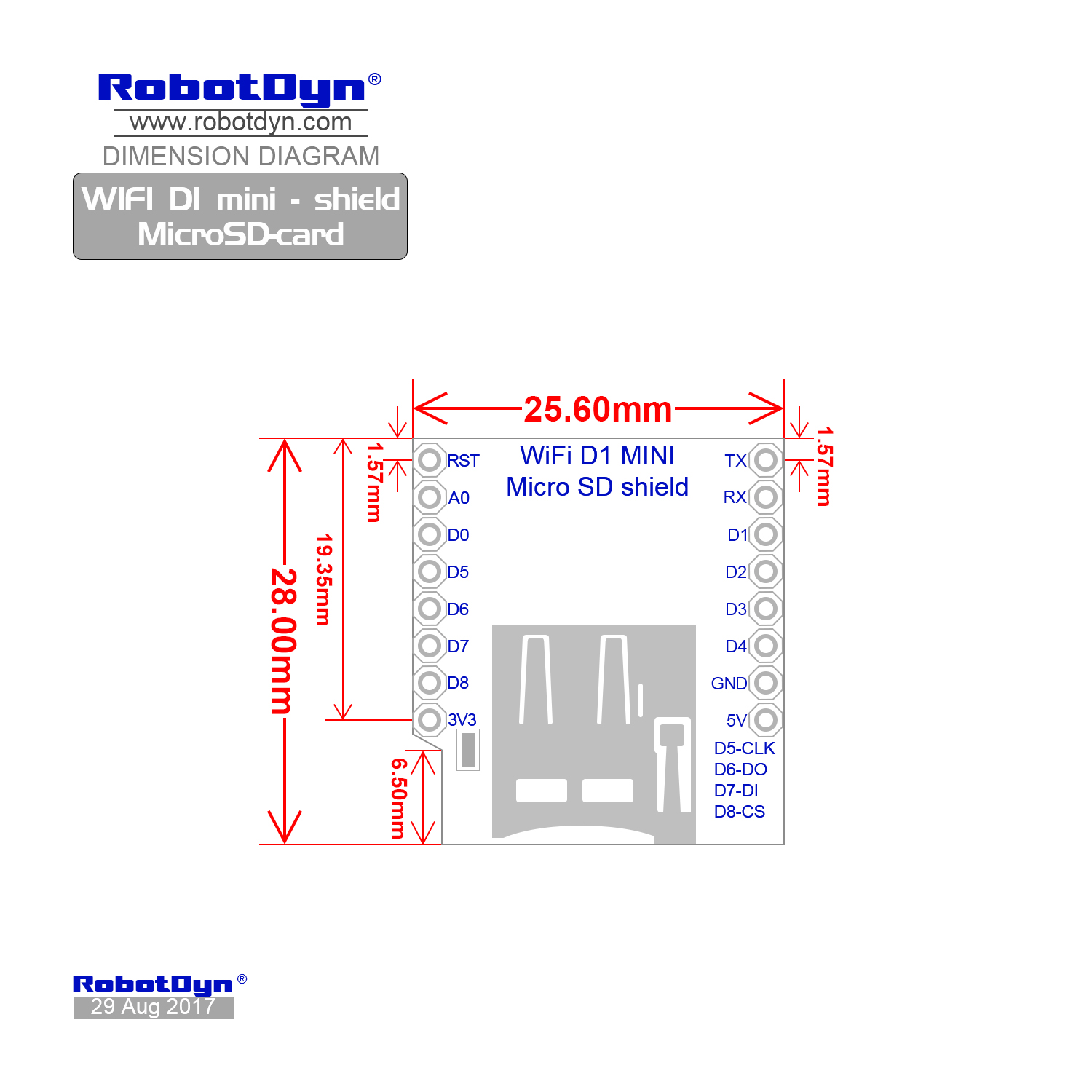

Dimensional drawing

Dimensions WIFI D1 mini - shield MicroSD-card Dimensions WIFI D1 mini - shield MicroSD-card

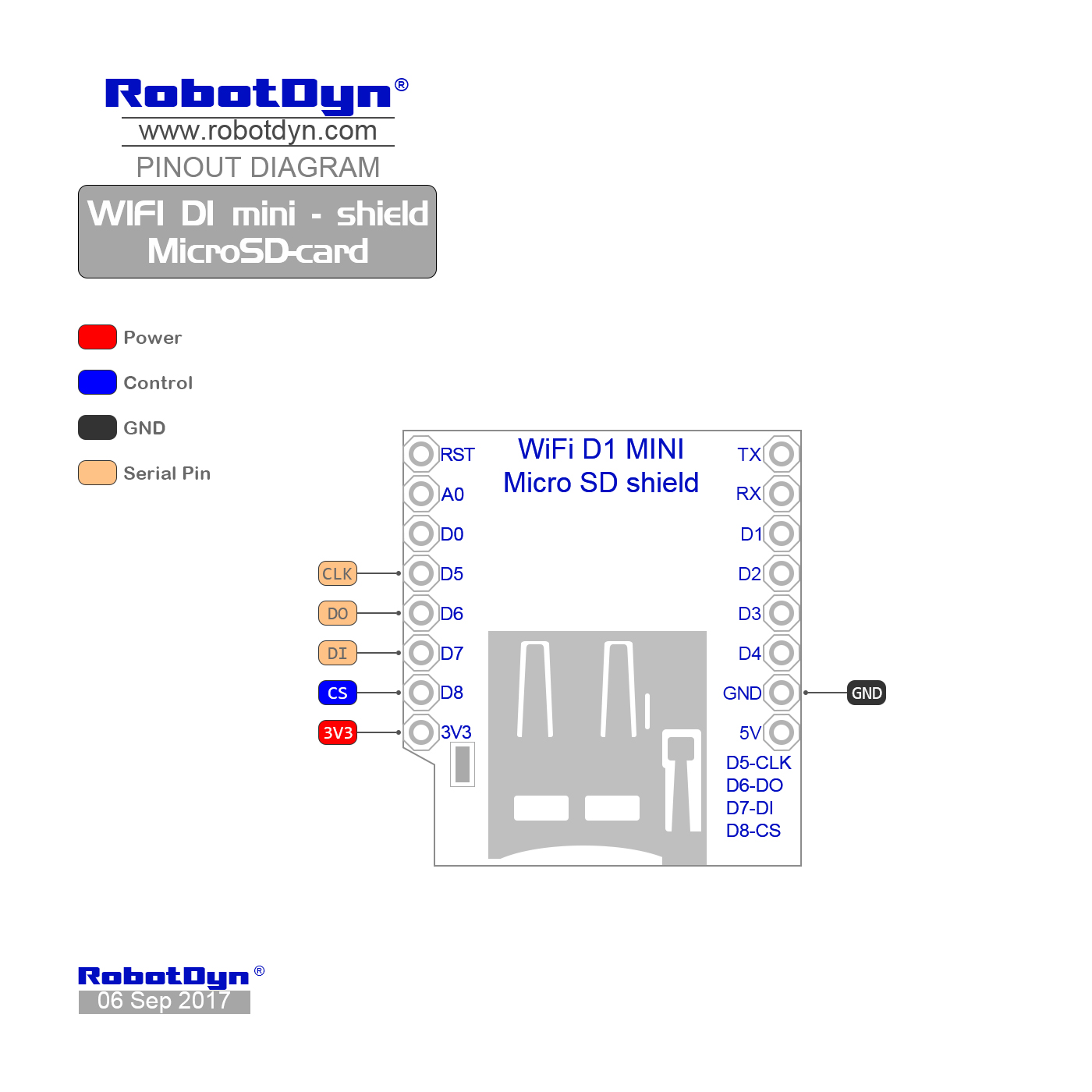

Pinout

Pinout WIFI D1 mini - shield MicroSD-card Pinout WIFI D1 mini - shield MicroSD-card

Schematic

Schematic of WIFI D1 mini - shield MicroSD-card
