Details about WIFI D1 Mini - Dual Shield

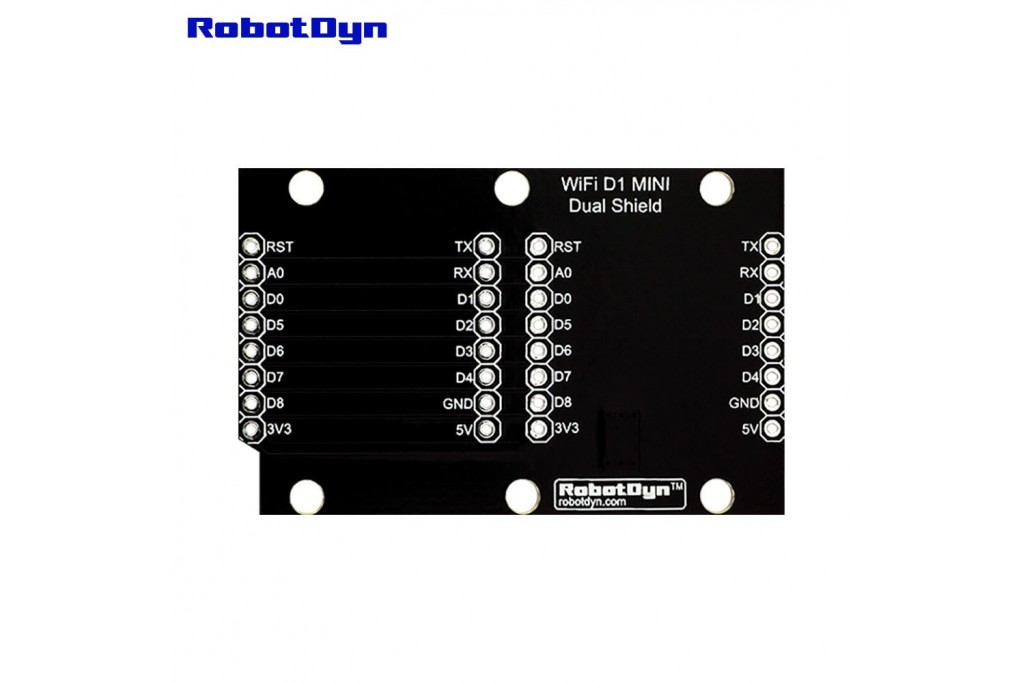

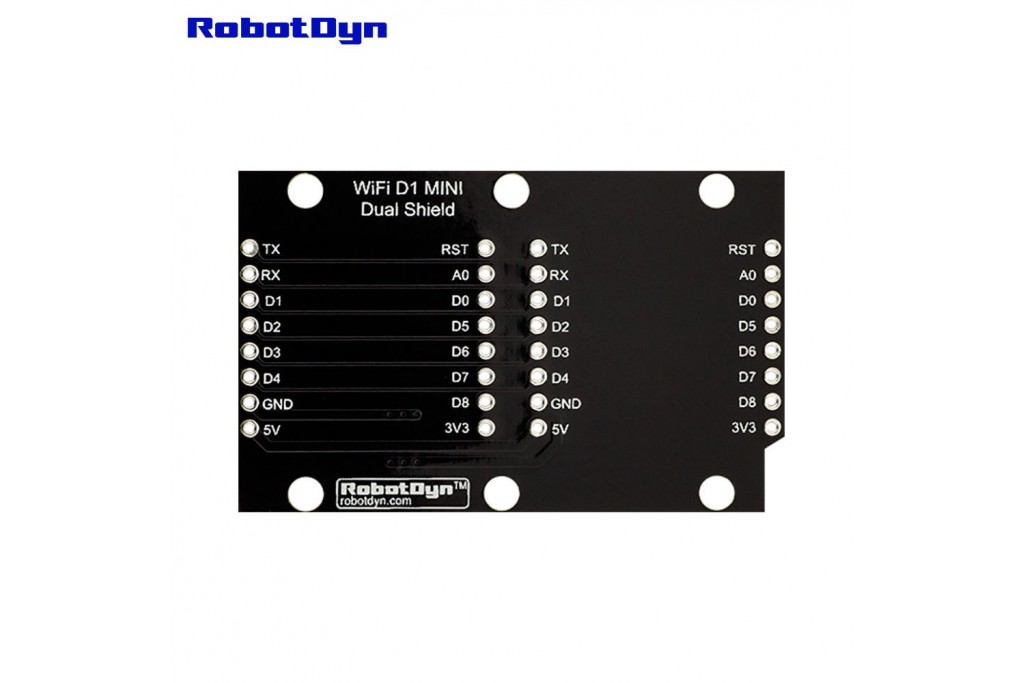

Dual Base Shield for WeMos / WiFi D1 mini PRO, with pin headers.

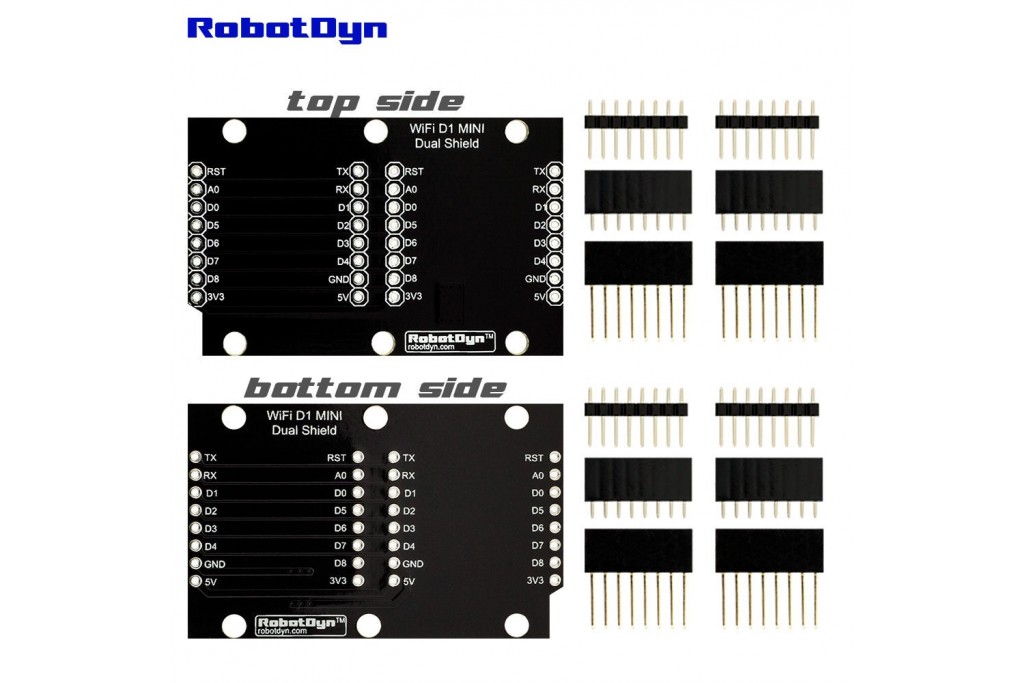

The set includes:

  1. Dual Base Shield — 1pc
  2. Male Pin Header 1×8pins — 4pcs
  3. Female Pin Header — BLACK 1×8pins — 4pcs
  4. Stackable Header — BLACK 1×8pins — 4pcs

The Dual Base Shield is designed in a way so that you can connect another shield to the WeMos / WiFi D1 mini PRO without having to use the normal stacking method. This is useful when you have multiple shields that are not suited for stacking together (like relay shields), or where a lower profile is preferred.

Documents for download:

Schematic: (PDF)
Mechanic Diagram: (PDF) - (JPG)

Documents

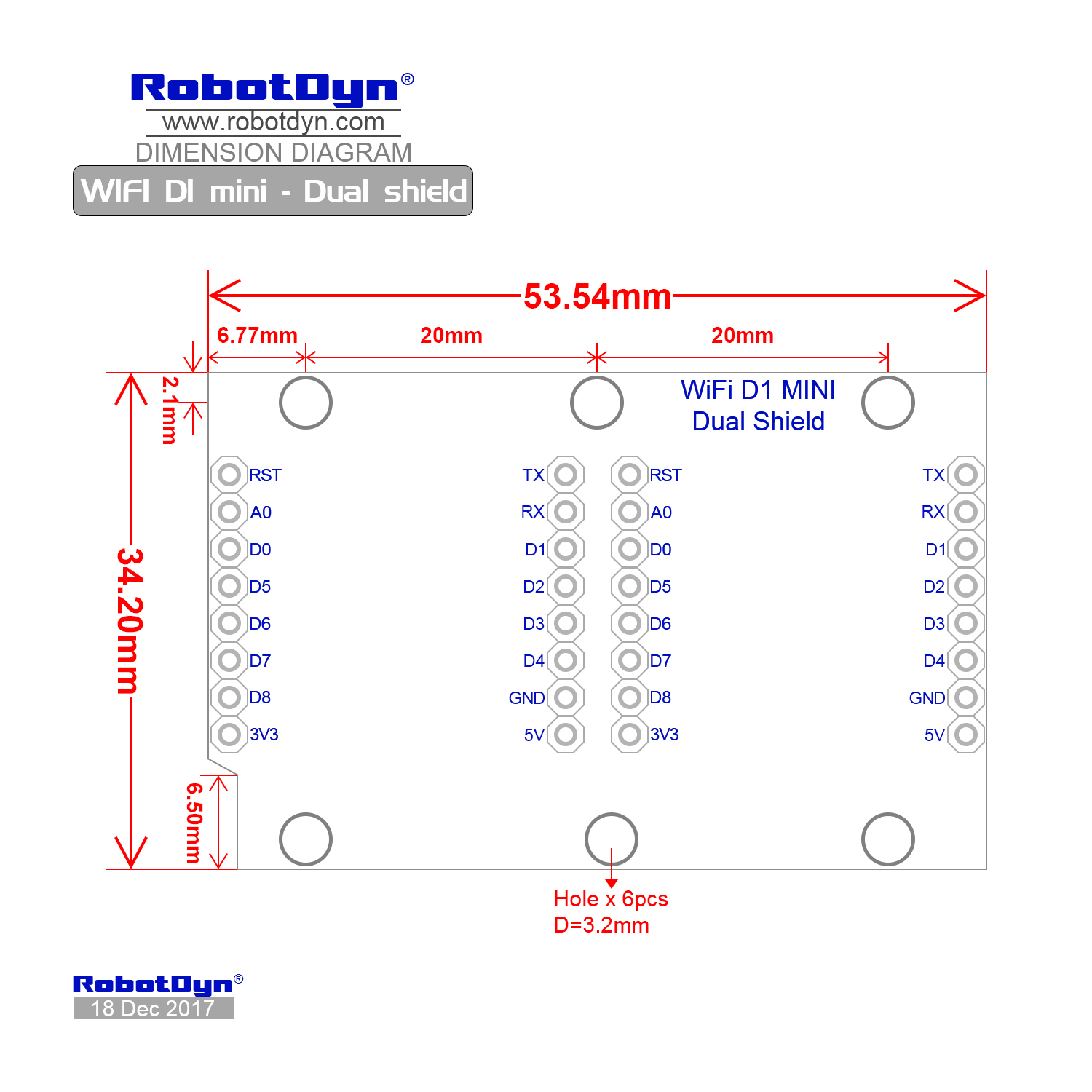

Dimensional drawing

Dimensions Dual Base Shield for WeMos / WiFi D1 mini PRO Dimensions Dual Base Shield for WeMos / WiFi D1 mini PRO

Schematic

Schematic of Dual Base Shield for WeMos / WiFi D1 mini PRO
