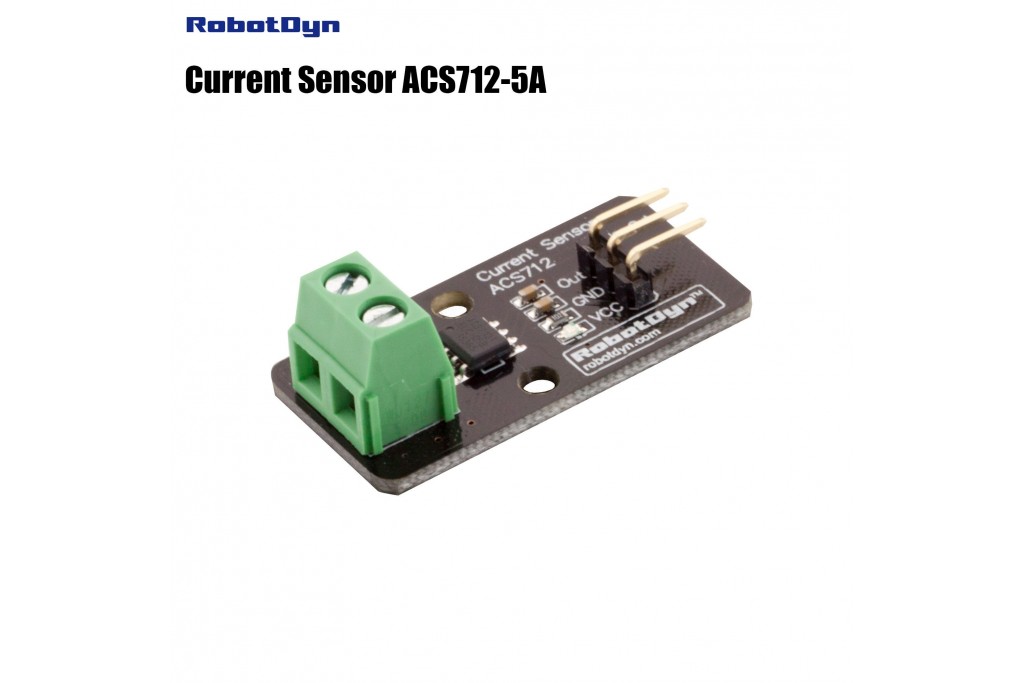

Current Sensor ACS712 (5A)

RDYN0126

New product

7,500 Ks

More info

Details about Current Sensor ACS712 (5A)

The Current Sensor ACS712 provides economic and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems.
Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.

Documents for Current Sensor ACS712-30A

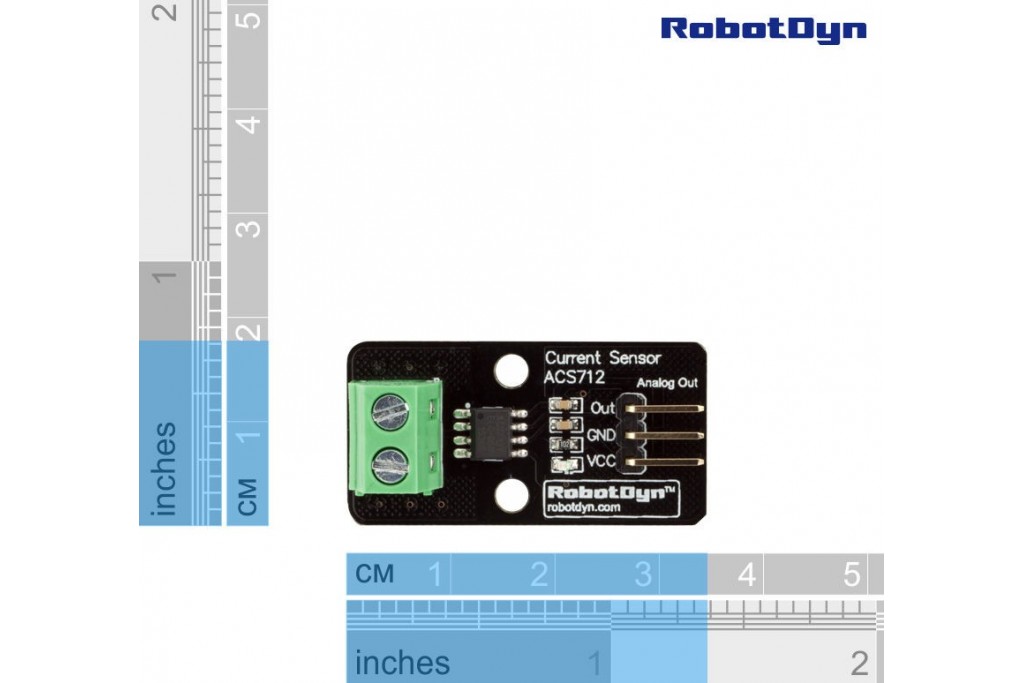

Dimensional drawing

Dimensions Current Sensor ACS712 Dimensions Current Sensor ACS712

Pinout

Pinout Current Sensor ACS712 Pinout Current Sensor ACS712

Schematic

Schematic of Current Sensor ACS712

Documents for Current Sensor ACS712-20A

Dimensional drawing

Dimensions Current Sensor ACS712 Dimensions Current Sensor ACS712

Pinout

Pinout Current Sensor ACS712 Pinout Current Sensor ACS712

Schematic

Schematic of Current Sensor ACS712
