Detail about Infrared Wireless Remote Control Kit

Description

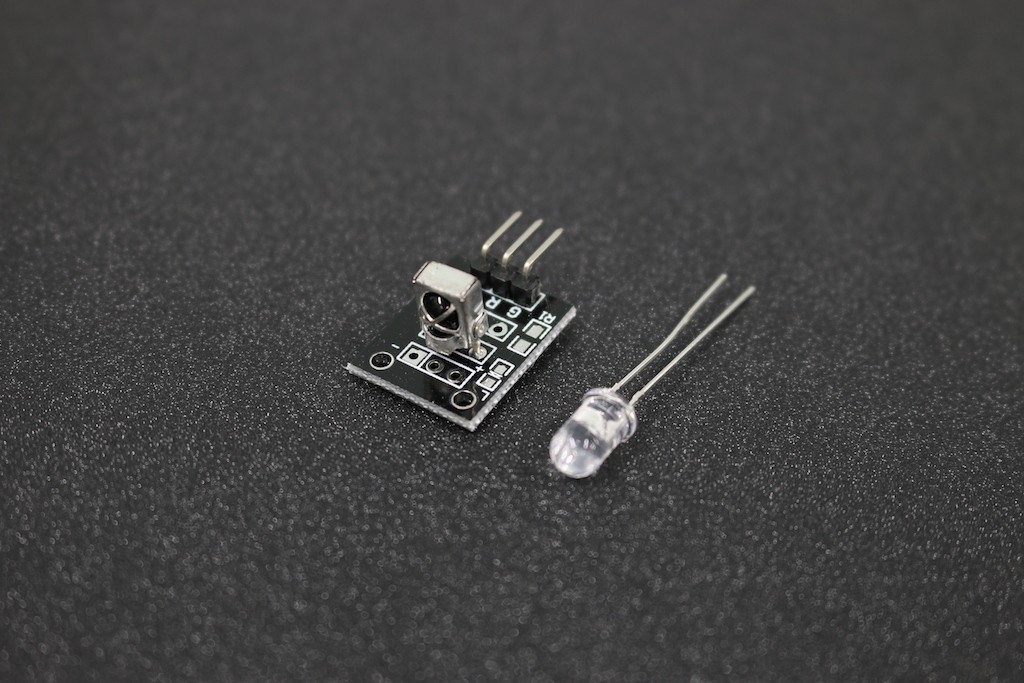

Arduino Infrared receiver Module is a Arduino compatible infrared receiver sensor, this module can receive a 38 KHz modulated signal, and program for Arduino to decode the signal, so as to realize the infrared wireless communication.
It can be used with Arduino to achieve universal remote control.
This item can be used together with Ultra-thin infrared remote control :

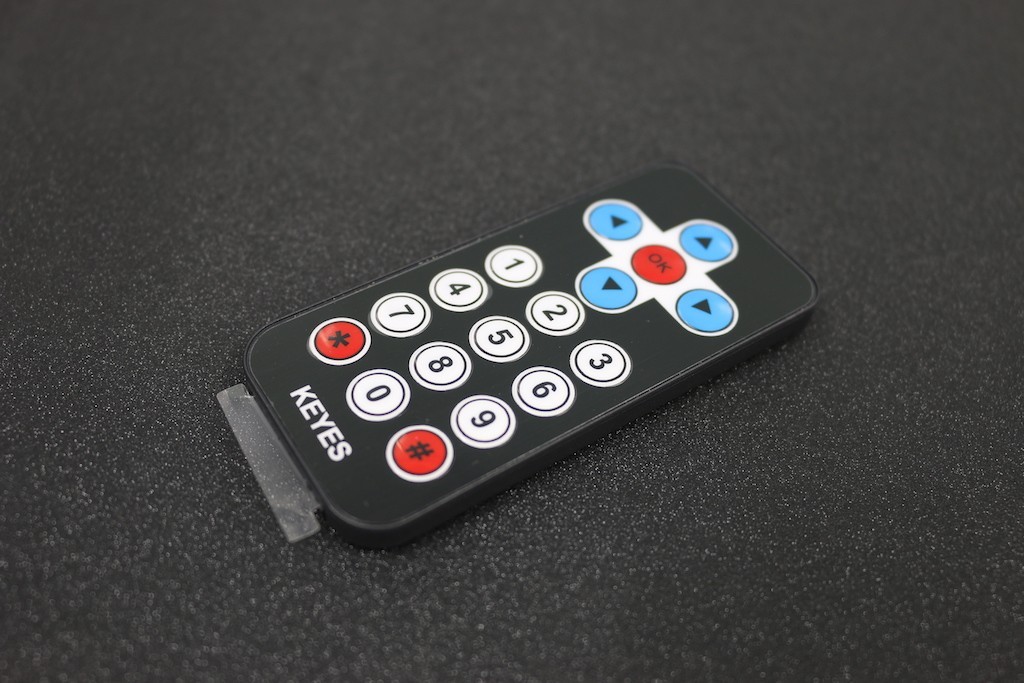

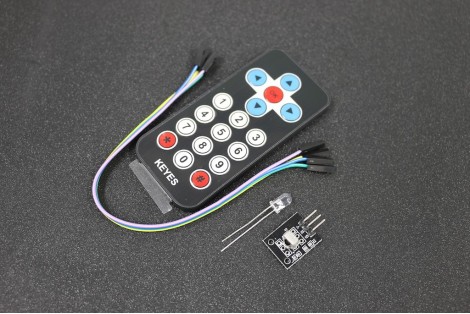

For Arduino suite by ultrathin Mini infrared wireless remote control infrared remote control and 38 KHZ infrared receiving module, the Mini ultra-thin has 20 function keys, the infrared emission furthest distance up to 8 meters, very suitable for indoor control devices of all kinds. Infrared remote control receiving module can receive standard 38 KHZ modulation signals, by means of programming the for Arduino, the remote control signal decoding operation can be realized, which can produce all kinds of remote control robots and interactive work.

Specifications

Battery: CR2025 Button batteries
Transmission Distance: up to 8m (depending on the surrounding environment, sensitivity of receiver etc)
Effective Angle: 60°
Static Current: 3~5uA, Dynamic Current: 3~5mA
PIN 1 LEFT PIN = GROUND
PIN 2 MIDDLE PIN = 5V
PIN 3 RIGHT PIN = SIGNAL OUT TO for ARDUINO PIN 11
Remote size:8.5 x 4 x 0.65cm(L x W x H)
CR2025 environmental protection button batteries, capacity : 160 mAh
Surface materials: 0.125 mmPET stick, With effective life : 20000 times.
Stable quality, cost-effective
