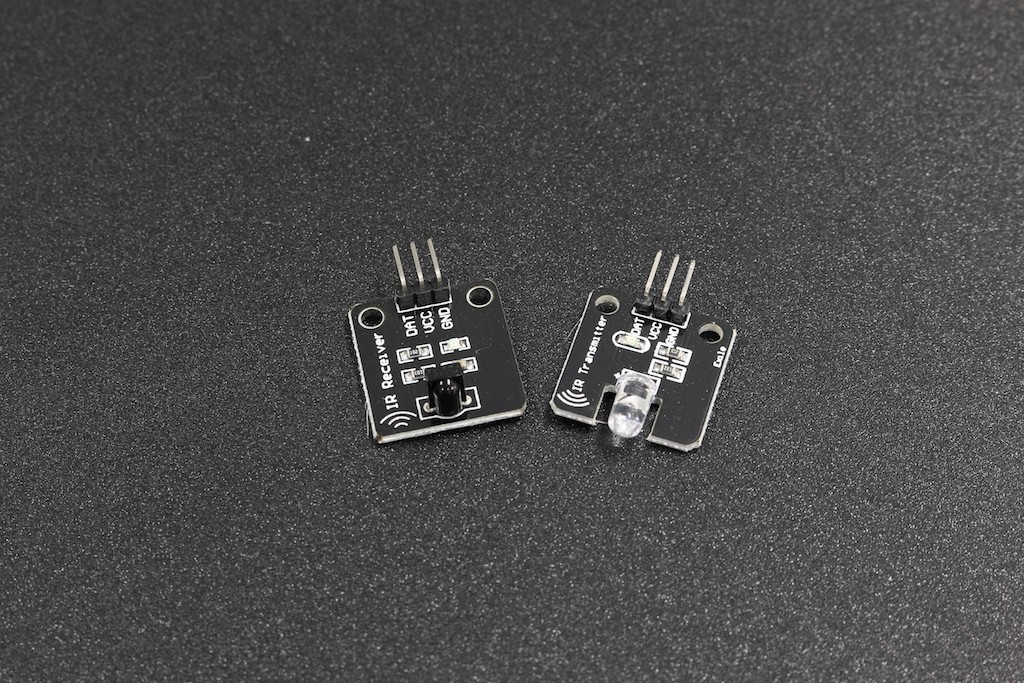

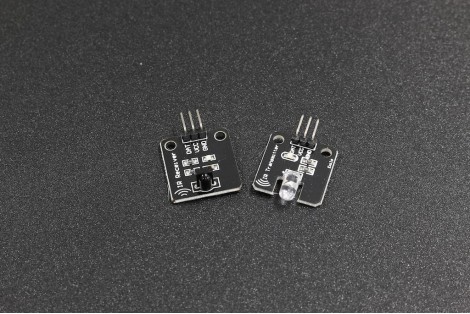

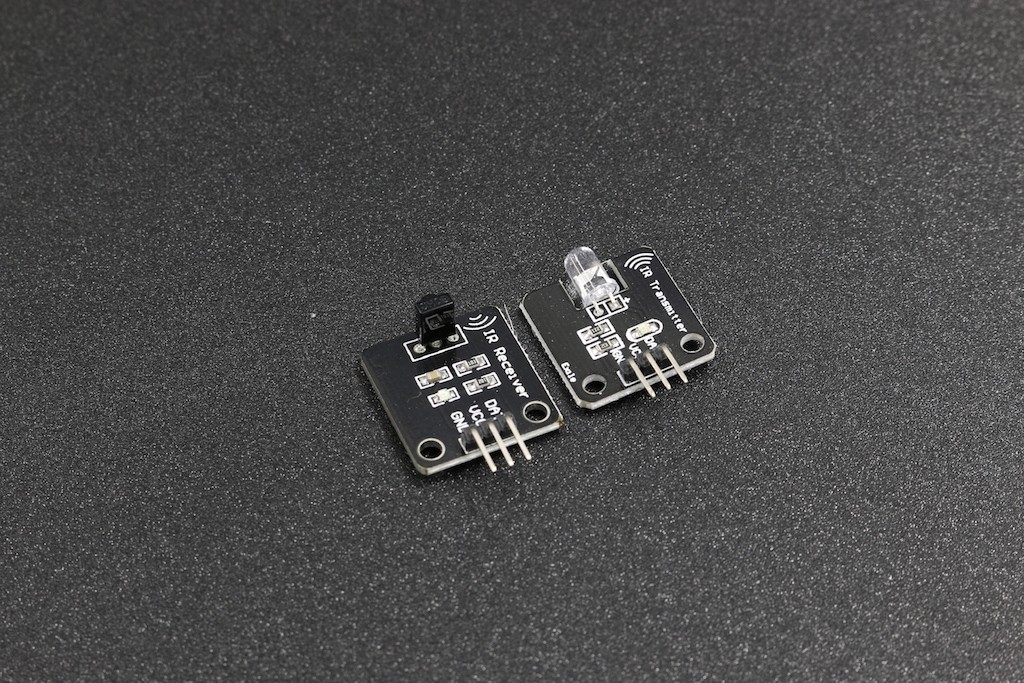

IR Transmitter & Receiver Sensor

SR0055

New product

2,800 Ks

More info

Detail for Transmitter

Infrared emission control , also known as infrared emitting diode , diode belongs to the class . It can be directly converted into electrical energy near -infrared Light ( black light ) , and can radiate out of the light emitting device is mainly used in a variety of optical switches and the remote transmitter circuit. Infrared emission control structures , principles and common light-emitting diodes are similar, but different semiconductor materials used . Typically gallium arsenide infrared emitting diode (GaAs), gallium aluminum arsenic (GaAlAs) and other materials, with full transparent or light blue, black resin package .

Emission from the emitting angle ( 15 degrees, 30 degrees, 45 degrees, 60 degrees, 90 degrees, 120 degrees, 180 degrees ) , the light intensity emitted wavelength. The above physical parameters , need to understand its electrical performance parameters: the diameter of the common market, 3mm, 5mm for the low-power infrared emission tube , 8mm, 10mm to medium power and high-power transmitting tubes . Small forward voltage power transmission pipe :1.1-1 .5 V, current 20ma, the power of the forward voltage :1.4-1 .65 V 50-100ma, forward voltage high-power transmitter tube :1.5-1 .9 V200-350ma.

Detail for Receiver

 The Keyes TSOP 1838 infra-red remote control receiver tuned for 38kHz operation. The receiver has an operating voltage of 2.7V ~ 5.5v DC, and has a nominal range of 18m. The receiver is designed for receiving remote control infra red signals. Widely used in stereo, TV, VCR, disc players, set-top boxes, digital photo frames, household appliances car audio, remote control toys, satellite receivers, hard disk player, air conditioners, heaters, fans, lighting, etc.

Specifications for Transmitter

  • Brand : Keyes
  • Model : KY-005
  • Operating voltage: DC 5 V
  • Compatibility: Arduino
  • Frequency : Transmit 38KHz modulating signal
  • Color: Black
  • Material: FR4
  • Length: 34mm
  • Width: 16mm
  • Height: 8mm
  • Weight: 1.59g

Specifications for Receiver

  • Brand : Keyes
  • Model : KY-022
  • Compatibility: Arduino
  • IR receiver sensor : VS1838 infrared receiver
  • Universal type  with steel, bendable legs
  • Size : 6.4 * 7.4 * 5.1MM
  • Receiving angle 90 °
  • Operating Voltage: 2.7V ~ 5.5v DC
  • Frequency : 37.9KHz
  • Receiving distance 18 m
  • Using inner and outer double-shielded package structure
  • Anti-light, electromagnetic interference capability, built-in infrared dedicated IC,
  • Can work under 500LUX light intensity.
  • Material: FR4
  • Color: Black
  • Dimensions:  28 x 15 x 8mm
  • Weight: 1.8g

Pins Map

TX

  • S     : Modulation Input
  • Mid  : Supply ( 5V )
  •    -   : Ground

RX

  • S     : Modulation Output
  • Mid  : Supply ( 5V )
  •    -   : Ground

Documents & Simple Codes
