Relay Module 2 relays, 5V

RDYN0023

New product

3,400 Ks

More info

Details about Relay Module 2 relays, 5V

               This is 2 channels Relay module, can able to control various appliances, and other equipment with a current not more 10A (250VAC/60VDC).It can be controlled directly by microcontroller: Raspberry, Arduino, AVR, PIC, DSP, ARM or TTL logic.For control of module need power 5V and logic operation 3.3V/5V.For isolate the microcontroller from the relay, we added optocoupler. Now with this configuration, the microcontroller doesn’t have any physical connection with the relay, it just uses the LED light of the Optocoupler IC to activate the relay. This solution saves your microcontroller from a high voltage for VAC/VDC.

Documents

Dimensional drawing

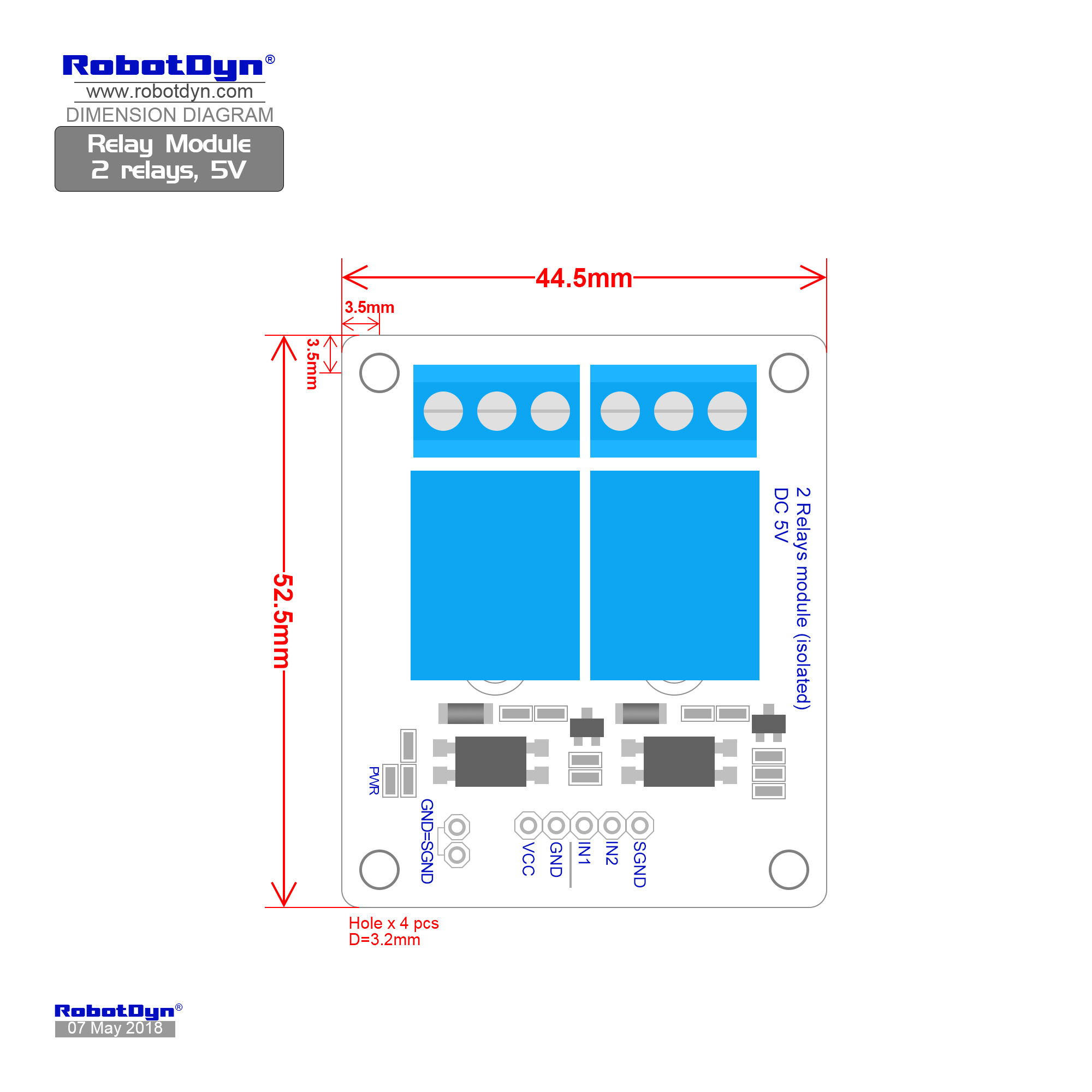

Dimensions Relay Module 2 relays 5V Dimensions Relay Module 2 relays 5V

Schematic

Schematic of Relay Module 2 relays 5V
