WIFI D1 Mini - T&H Sensor Shield - DHT11

RDYN0118

New product

More info

Details about WIFI D1 Mini - T&H Sensor Shield - DHT11

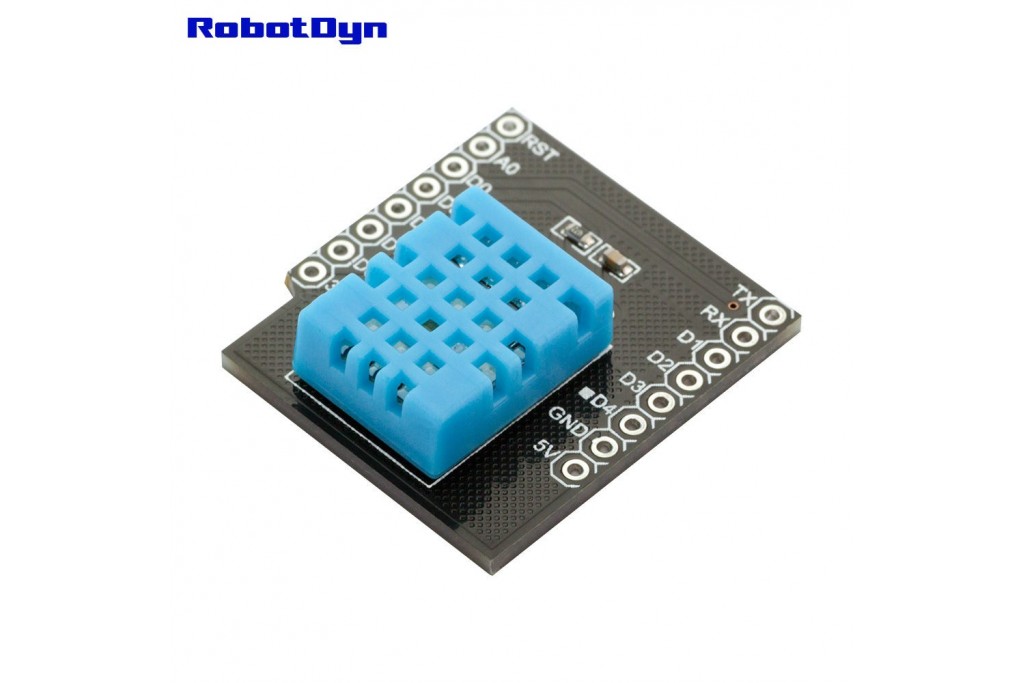

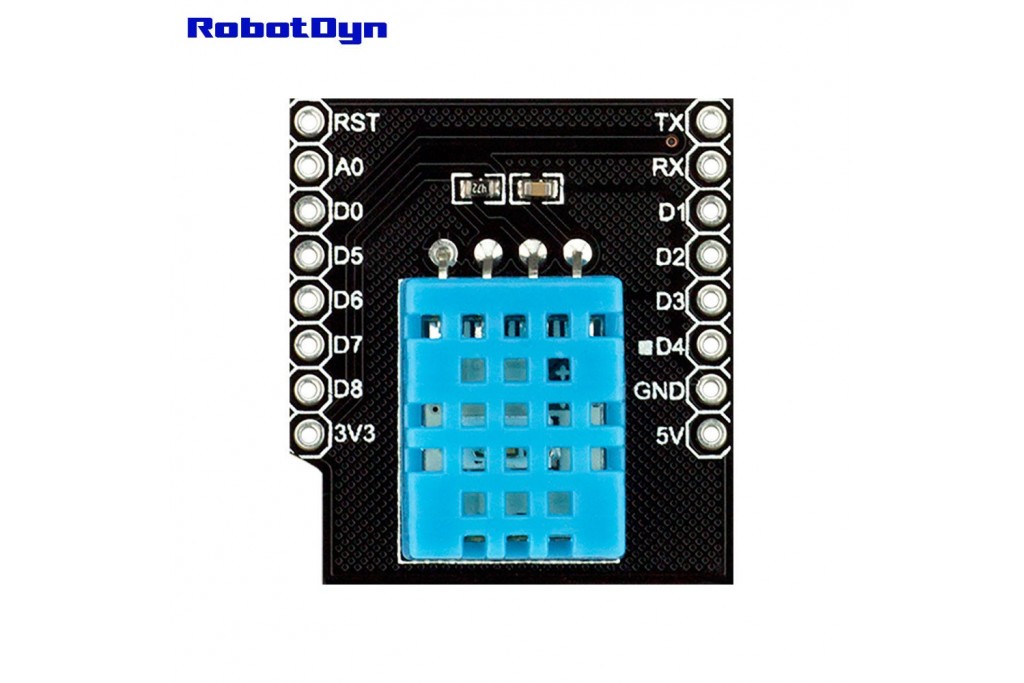

Temperature and Humidity sensor shield for WeMos / WiFi D1 mini PRO, with pin headers.

The set includes:

  1. DHT11 Sensor Shield — 1pc
  2. Male Pin Header 1×8pins — 2pcs
  3. Female Pin Header — BLACK 1×8pins — 2pcs
  4. Stackable Header — BLACK 1×8pins — 2pcs

DHT11 is an accurate and inexpensive the Temperature and Humidity sensor shield. The sensor includes an 8-bit ADC and provides reliable output results. It covers the needs of most home and everyday application conditions.

Technical details:

  • Input voltage: 3.3V
  • Current draw: 2.5mA MAX (in active state when data is requested)
  • Humidity range: 20-90% ±5%
  • Temperature range: 0-50°C ±2%
  • Sampling rate: ≤1 Hz

Documents

Dimensional drawing

 Dimensions WIFI D1 mini - T&H sensor shield - DHT11 Dimensions WIFI D1 mini - T&H sensor shield - DHT11

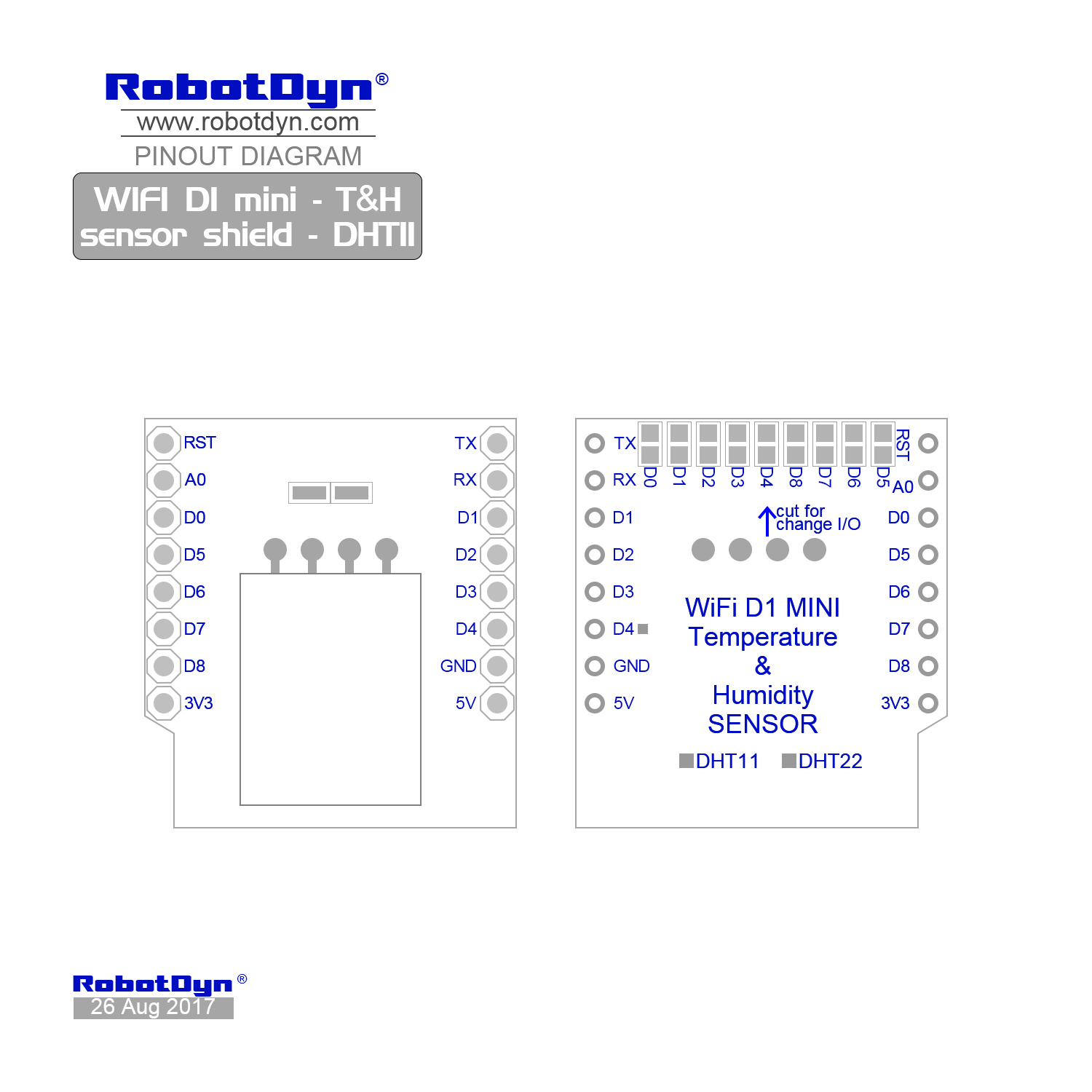

Pinout

 Pinout WIFI D1 mini - T&H sensor shield - DHT11 Pinout WIFI D1 mini - T&H sensor shield - DHT11

Schematic

 Schematic of WIFI D1 mini - T&H sensor shield - DHT11
