WIFI D1 Mini - Shield Contact Relay

RDYN0120

New product

3,000 Ks

More info

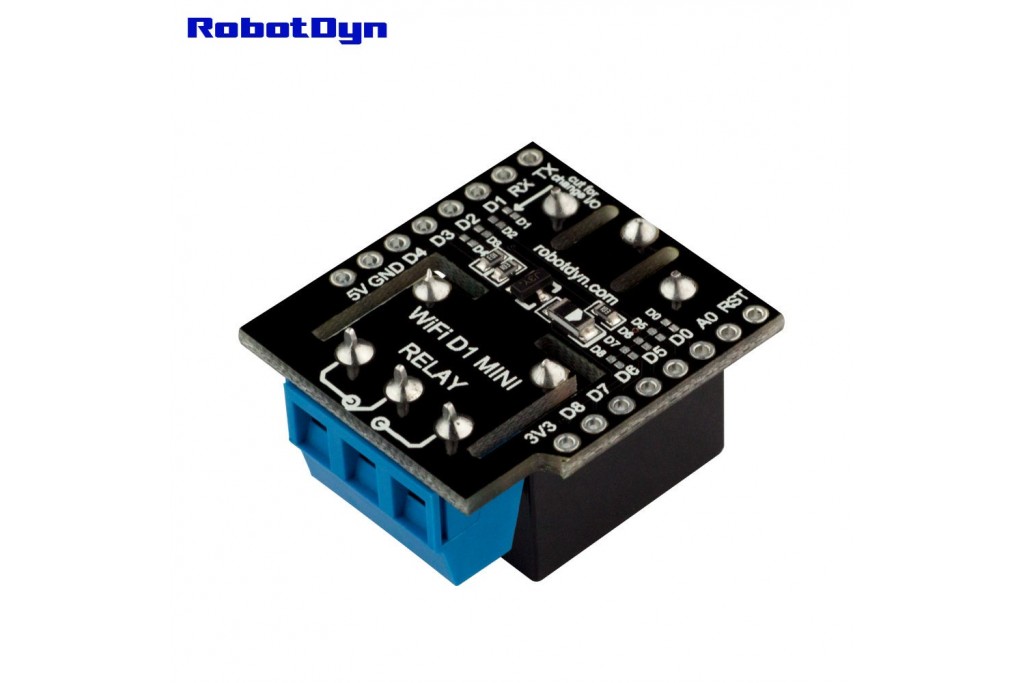

Details about WIFI D1 Mini - Shield Contact Relay

The set includes:

  • Relay Module Shield - 1pc
  • Male Pin Header 1x8pins - 2pcs
  • Female Pin Header - BLACK 1x8pins - 2pcs
  • Stackable Header - BLACK 1x8pins - 2pcs

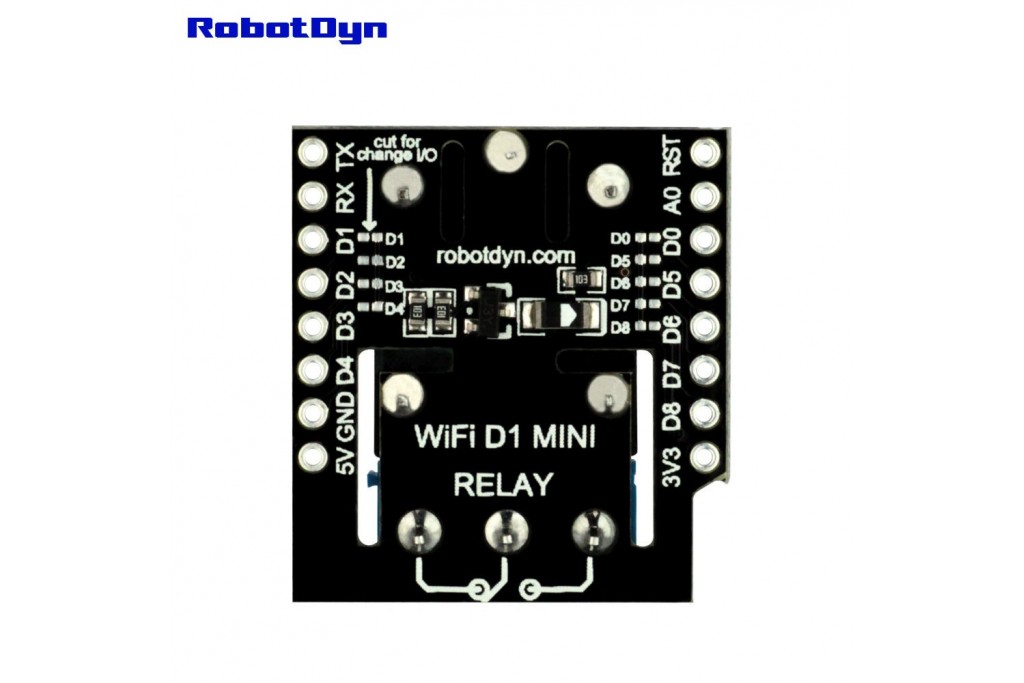

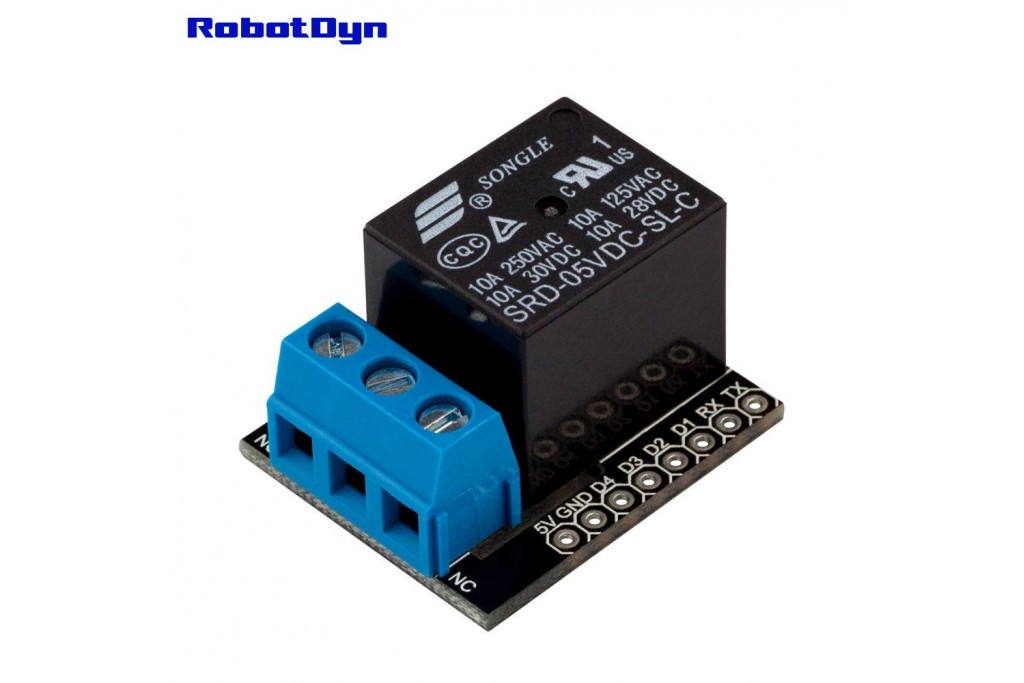

A very common Contact Relay to control the AC (light, home equipment, etc.) or DC load using WeMos / WiFi D1 mini PRO board. Control pin of Relay is connected to the D1 I/O port on the D1 mini. If you wish to use another I/O port, just cut off of the connection to D1 and solder it to another pad, as needed.

Technical details:

  • Control circuit voltage: 5V DC
  • Load circuit maximum voltage: 110/220V AC or 30V DC
  • Load circuit maximum current: 10A

Documents

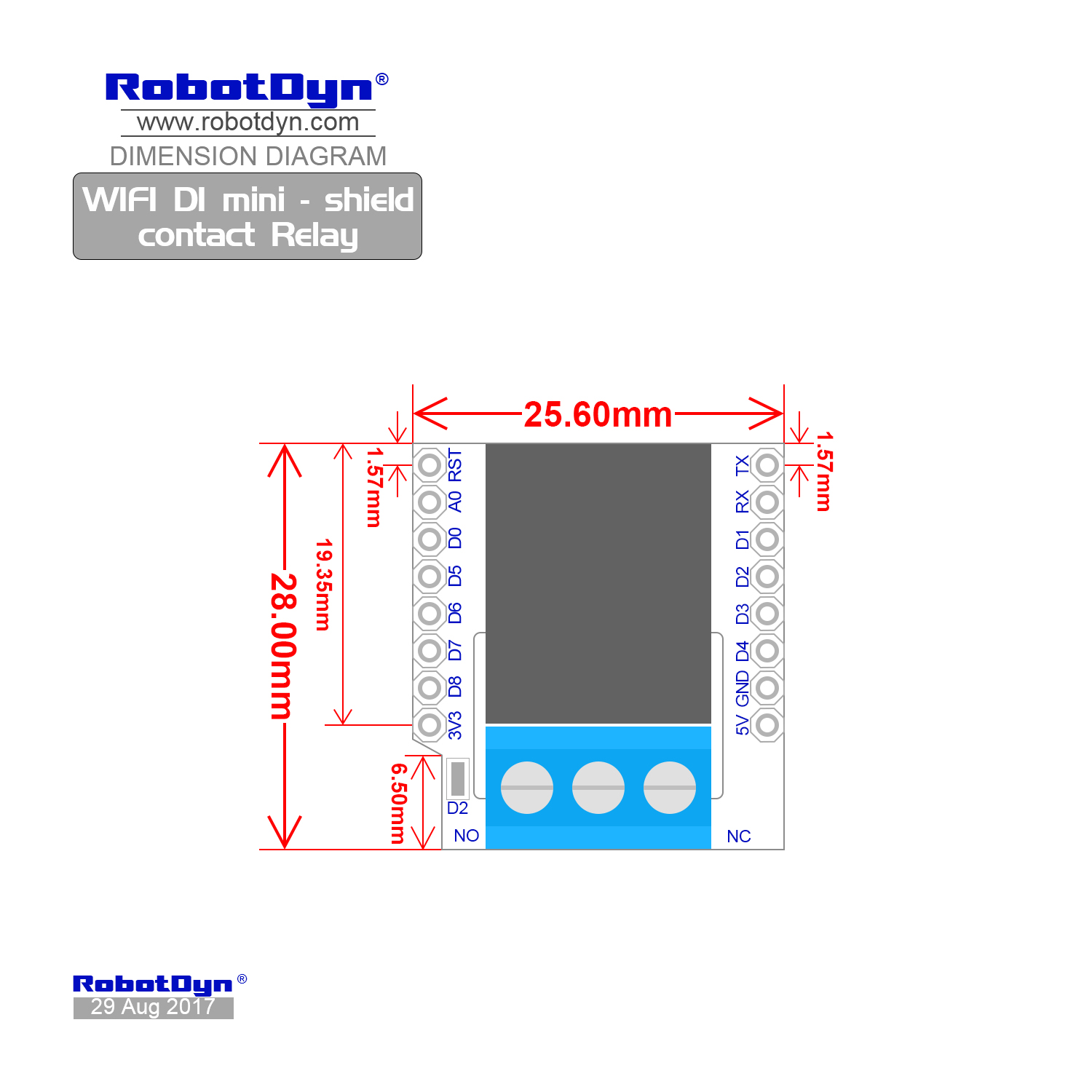

Dimensional drawing

Dimensions WIFI D1 mini - shield contact Relay Dimensions WIFI D1 mini - shield contact Relay

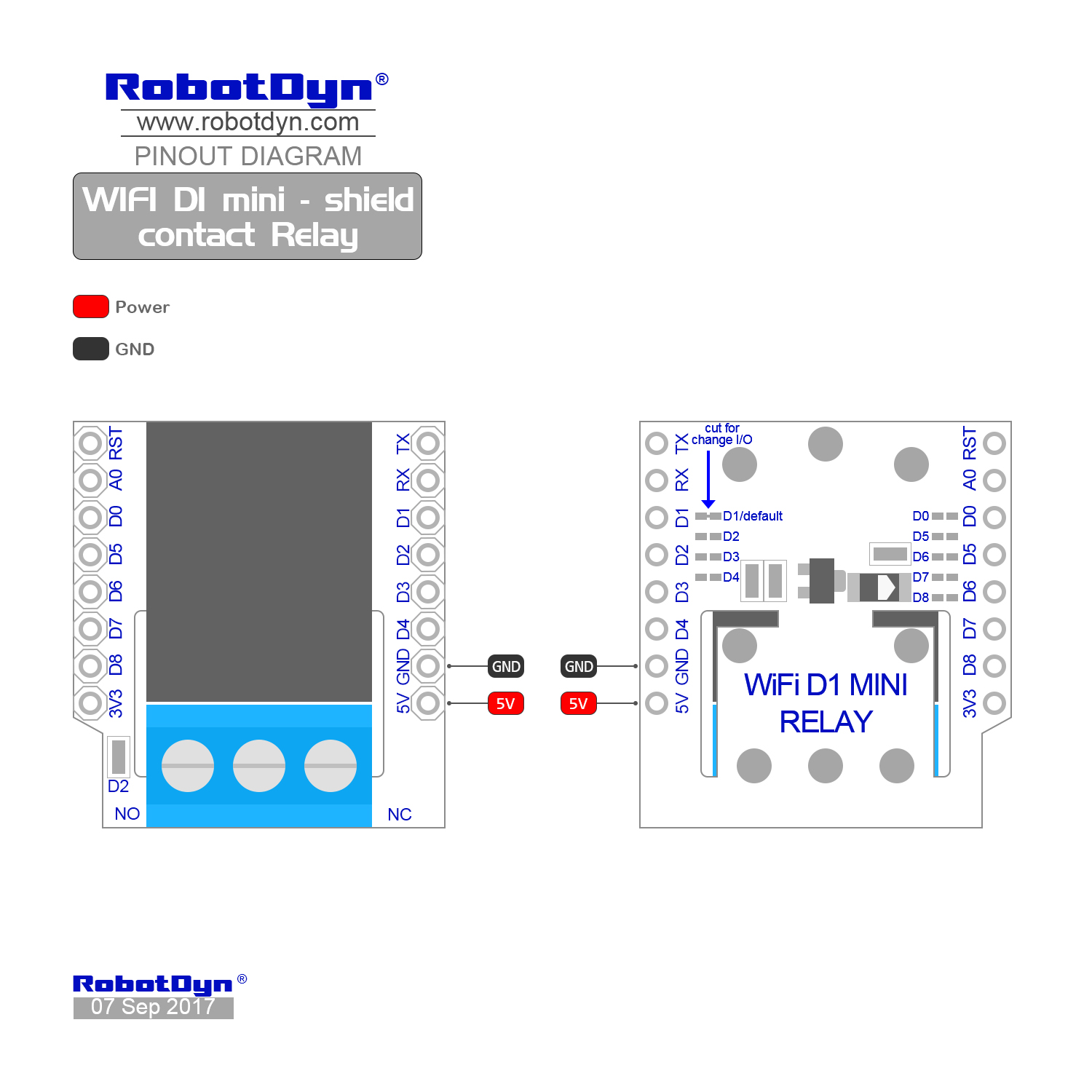

Pinout

Pinout WIFI D1 mini - shield contact Relay Pinout WIFI D1 mini - shield contact Relay

Schematic

Schematic of WIFI D1 mini - shield contact Relay
