WIFI D1 Mini - Shield Button

RDYN0122

New product

2,000 Ks

More info

Details about WIFI D1 Mini - Shield Button

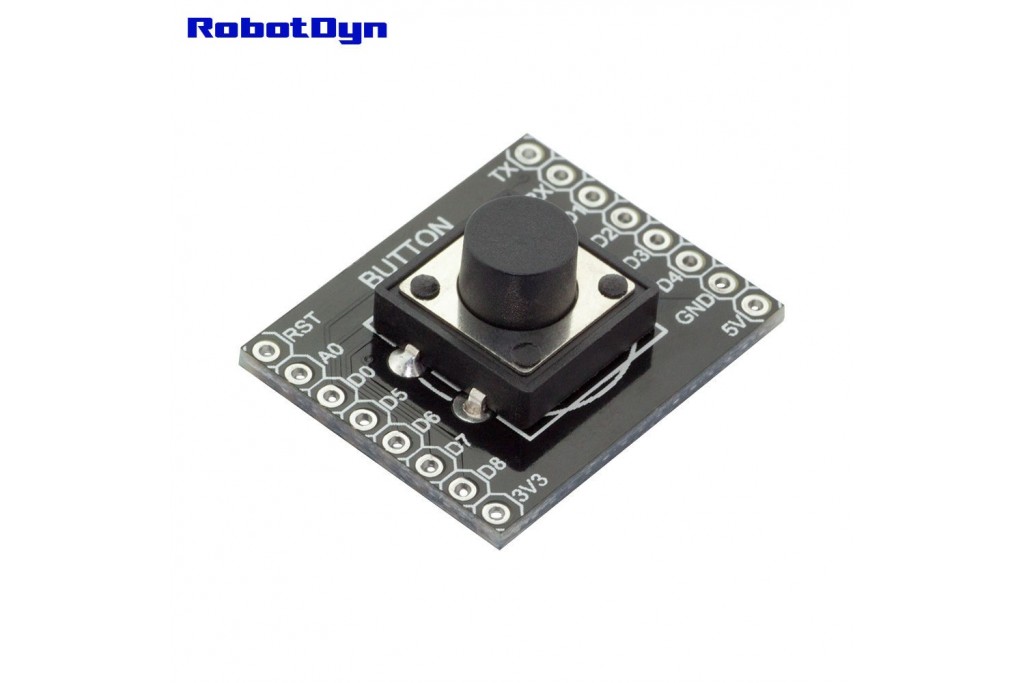

Button Shield for WeMos / WiFi D1 mini PRO, with pin headers.

The set includes:

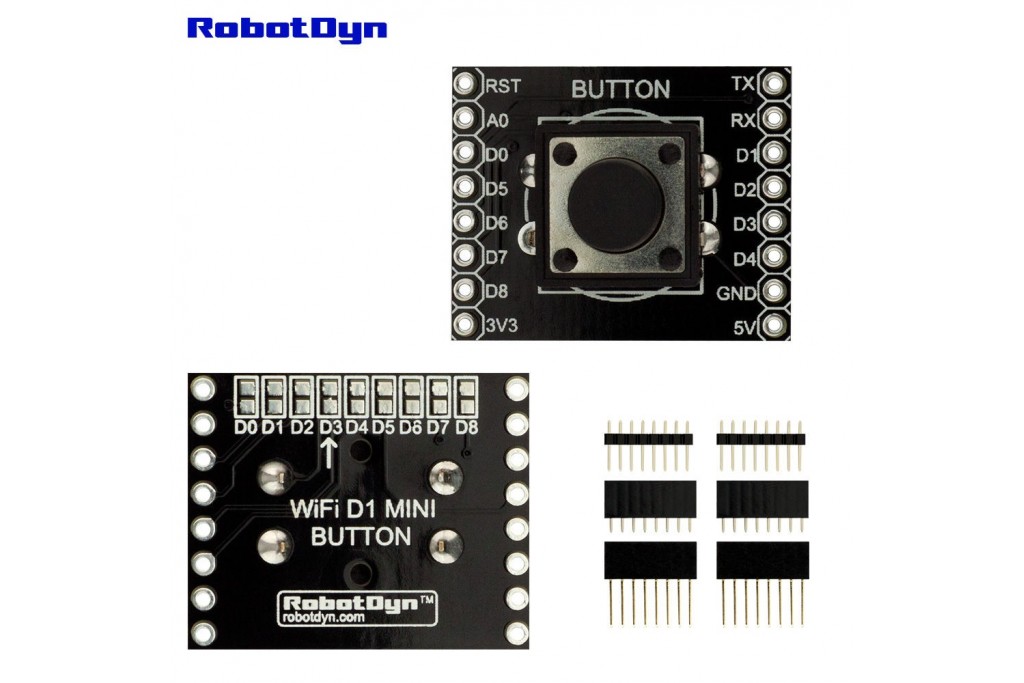

  1. Button Shield — 1pc
  2. Male Pin Header 1×8pins — 2pcs
  3. Female Pin Header — BLACK 1×8pins — 2pcs
  4. Stackable Header — BLACK 1×8pins — 2pcs

Button is a commonly used shield with a great variety of applications. By default, the button is connected to D3 I/O port on the WiFi D1 mini. If you wish to use another I/O port, just cut off of the connection to D3 and solder it to another pad, as needed.

Documents

Dimensional drawing

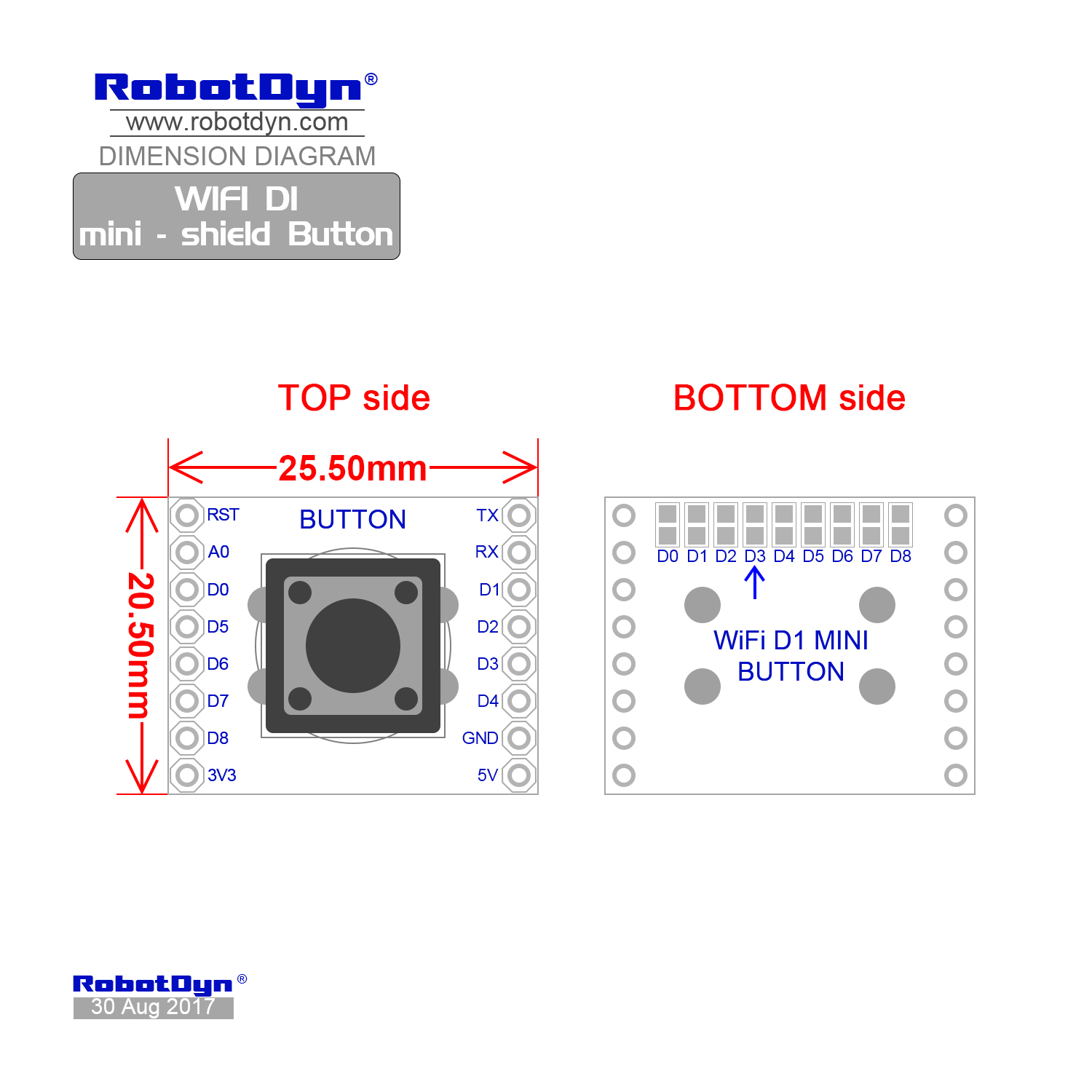

Dimensions WIFI D1 mini - Button Shield Dimensions WIFI D1 mini - Button Shield

Pinout

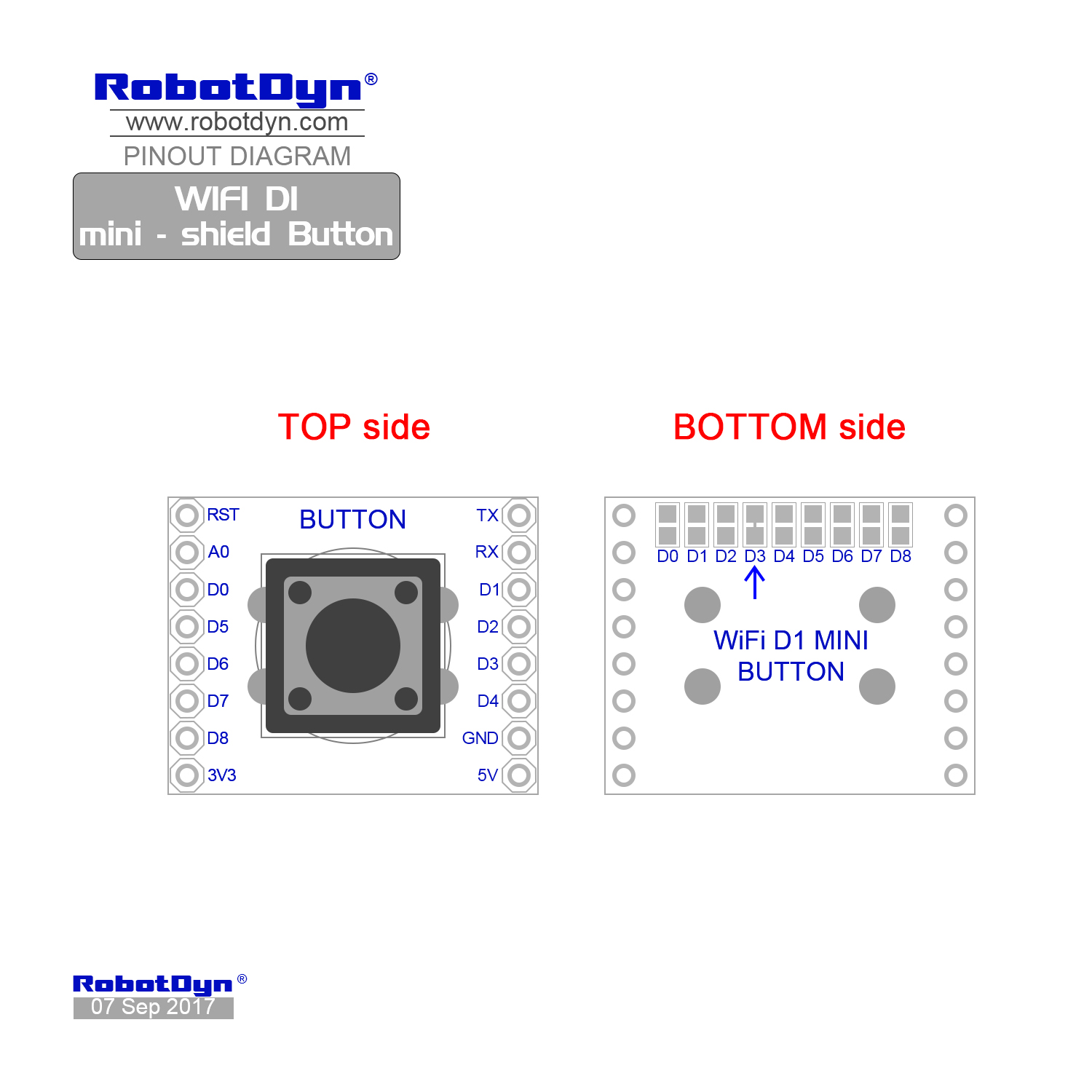

Pinout WIFI D1 mini - Button Shield Pinout WIFI D1 mini - Button Shield

Schematic

Schematic of WIFI D1 mini - Button Shield
