RobotDyn Prototype Shield Mega for Arduino Mega (Assembled)

RDYN0150

New product

8,800 Ks

More info

Details about RobotDyn Prototype Shield Mega for Arduino Mega (Assembled)

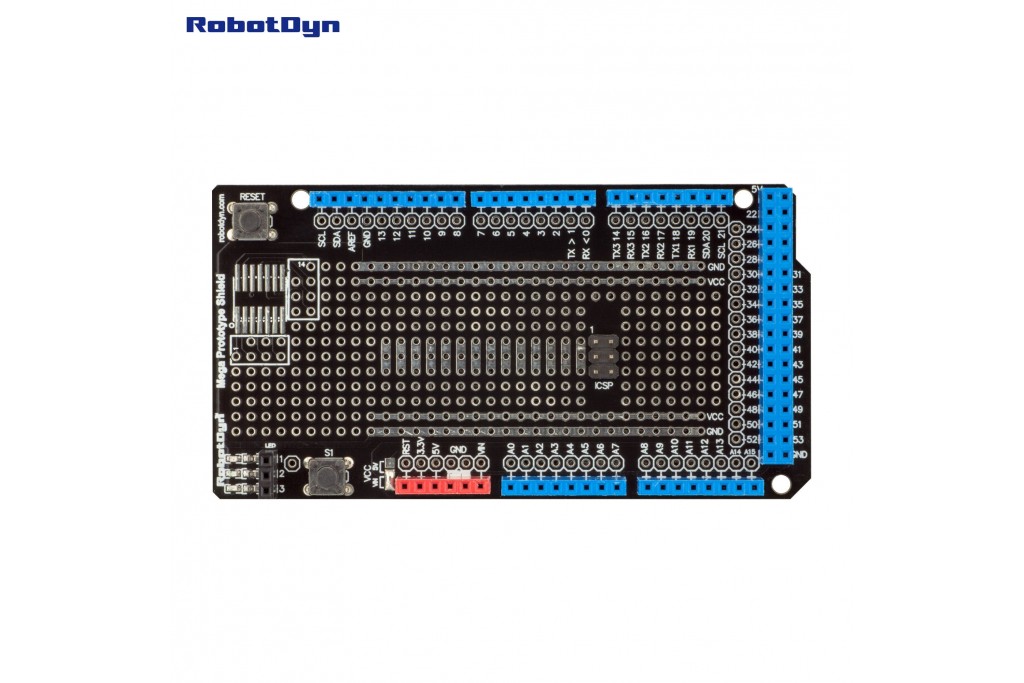

Have you got tired from tangled wires from shield to Arduino? Make your project Prototype Shield Mega and connect it with Arduino Mega.

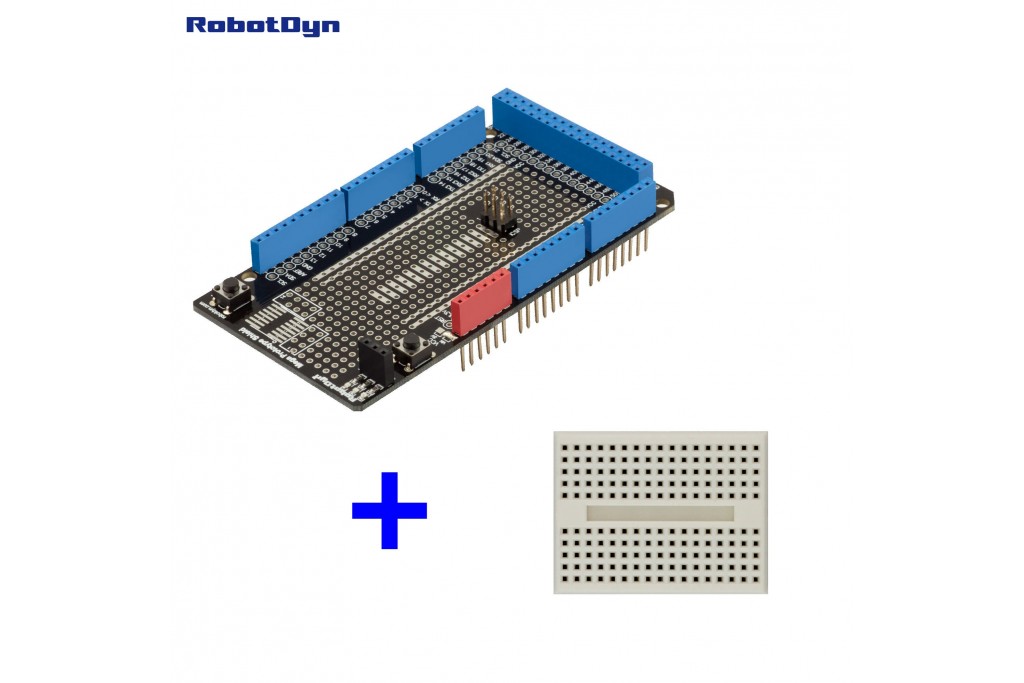

It provides quick and safe prototyping. Prototype Shield Mega's connected with Arduino through stacks and gives an opportunity to connect additional shield up. You can start advanced developing with setting components on small solderless breadboard (included) and finish mounting with soldering on the shield as complete project.

Prototyping shield includes solder area with GND and VCC lines (providing 5V or Vin power by Arduino), solder surface for SOIC (up to 14 contacts), 3 colored LEDs (red, green, blue) with input for soldering or female heads, one switch button with input for connection and RESET button. LEDs and buttons can be connected to any Arduino pin or to installed components.

Compatible with Arduino Mega.

Documents

Dimensional drawing

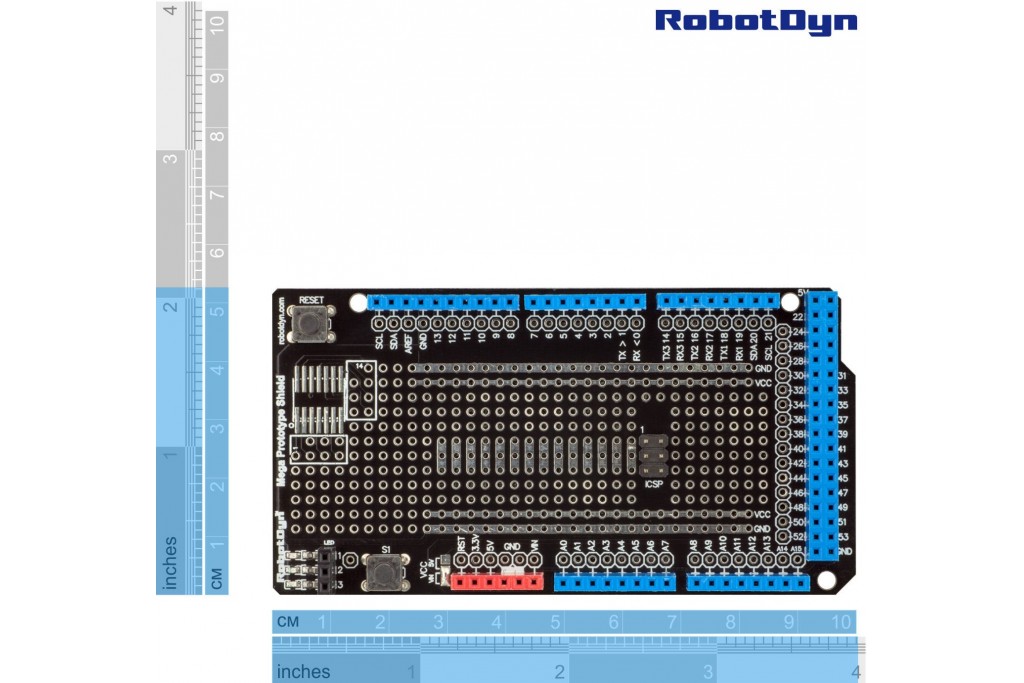

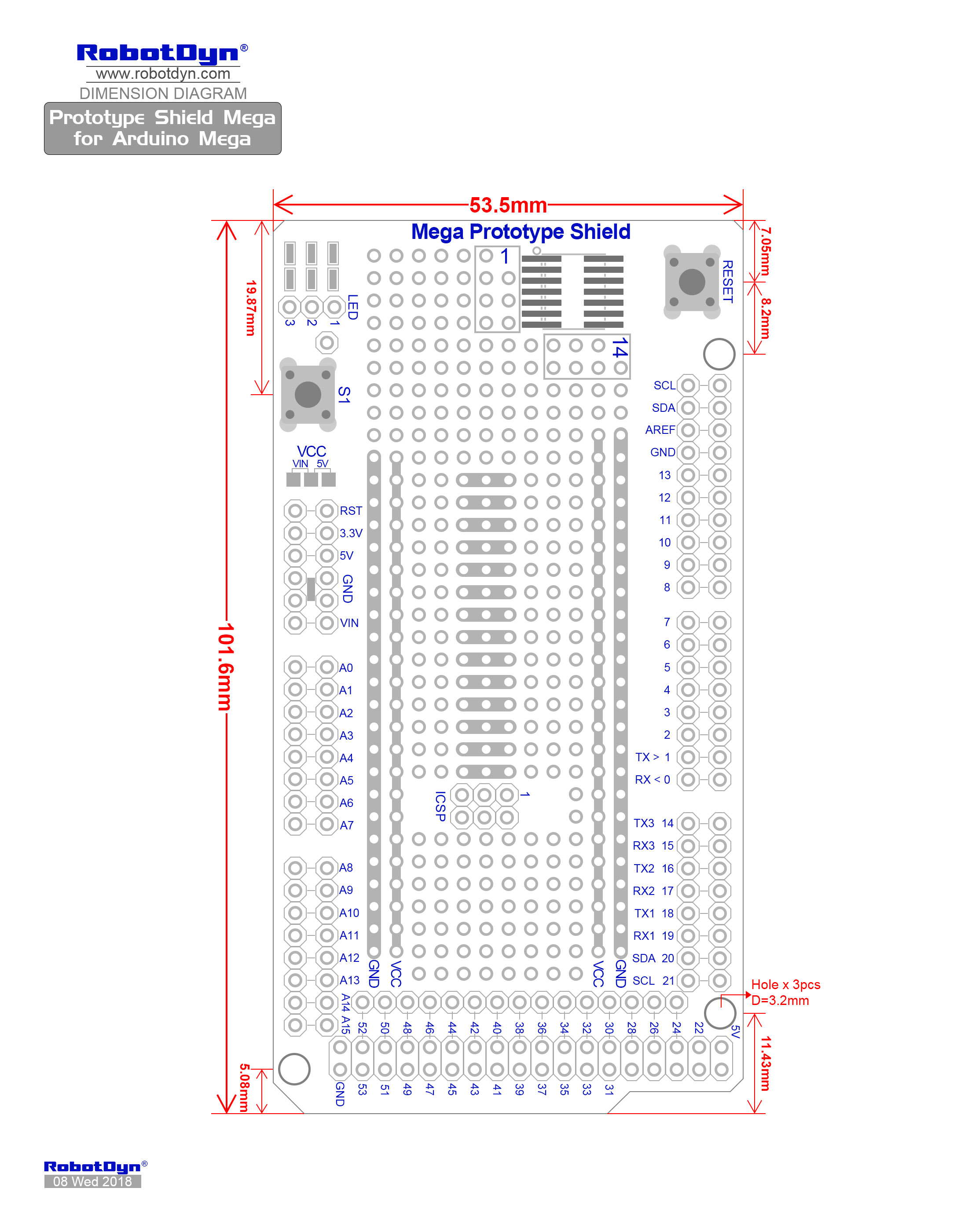

Dimensions Prototype Shield Mega for Arduino Mega Dimensions Prototype Shield Mega for Arduino Mega

Schematic

Schematic of Prototype Shield Mega for Arduino Mega
