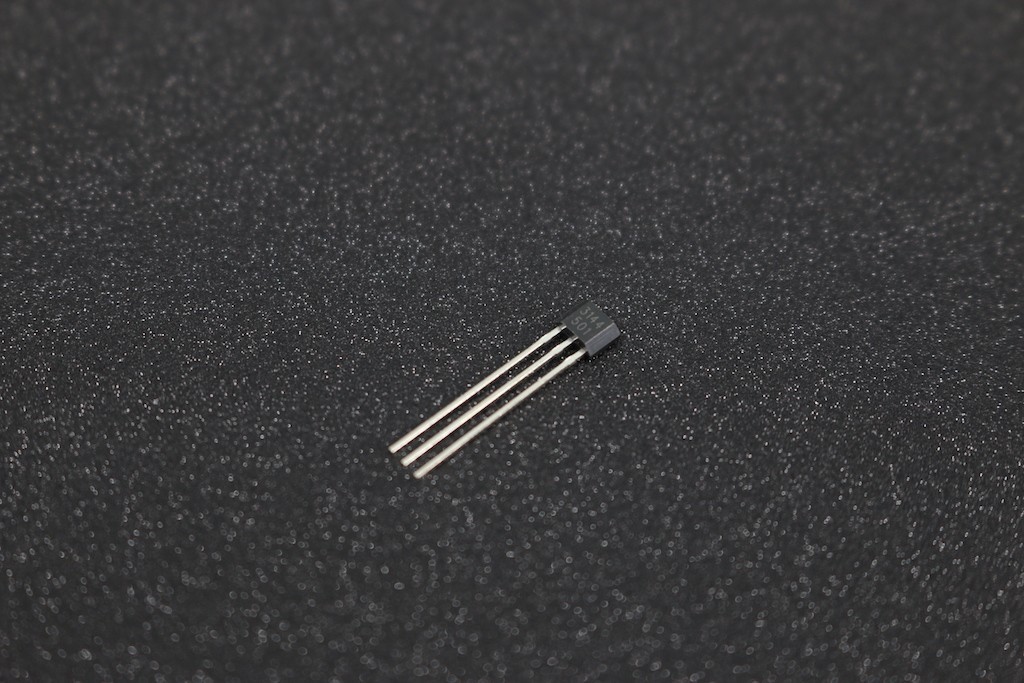

A3144 Hall Effect Sensor

These Hall-effect switches are monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes. The unipolar switching characteristic makes these devices ideal for use with a simple bar or rod magnet. The four basic devices (3141, 3142, 3143, and 3144) are identical except for magnetic switch points.

Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, small- signal amplifier, Schmitt trigger, and an open-collector output to sink up to 25 mA. With suitable output pull up, they can be used with bipolar or CMOS logic circuits. The A3141– and A3142– are im- proved replacements for the UGN/UGS3140–; the A3144– is the improved replacement for the UGN/UGS3120–.

Specifications

• Superior Temp. Stability for Automotive or Industrial Applications
• 4.5 V to 24 V Operation ... Needs Only An Unregulated Supply
• Open-Collector 25 mA Output ... Compatible with Digital Logic
• Reverse Battery Protection
• Activate with Small, Commercially Available Permanent Magnets
• Solid-State Reliability
• Small Size
• Resistant to Physical Stress
