QRD1114 Reflective Sensor


New product

900 Ks

More info

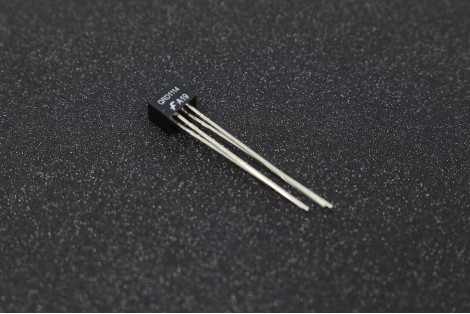

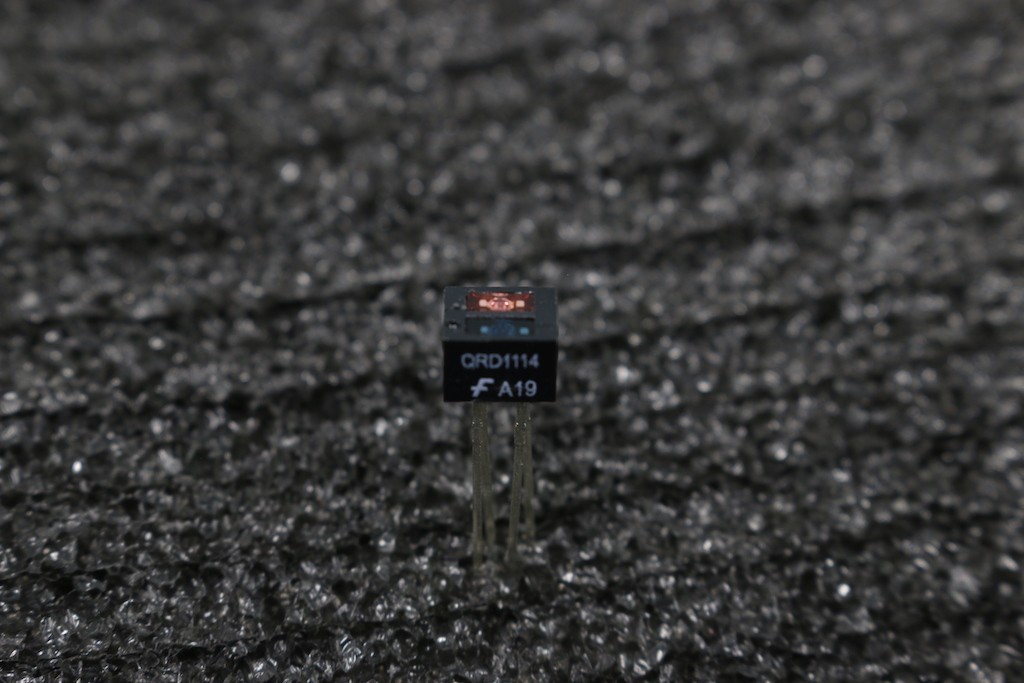

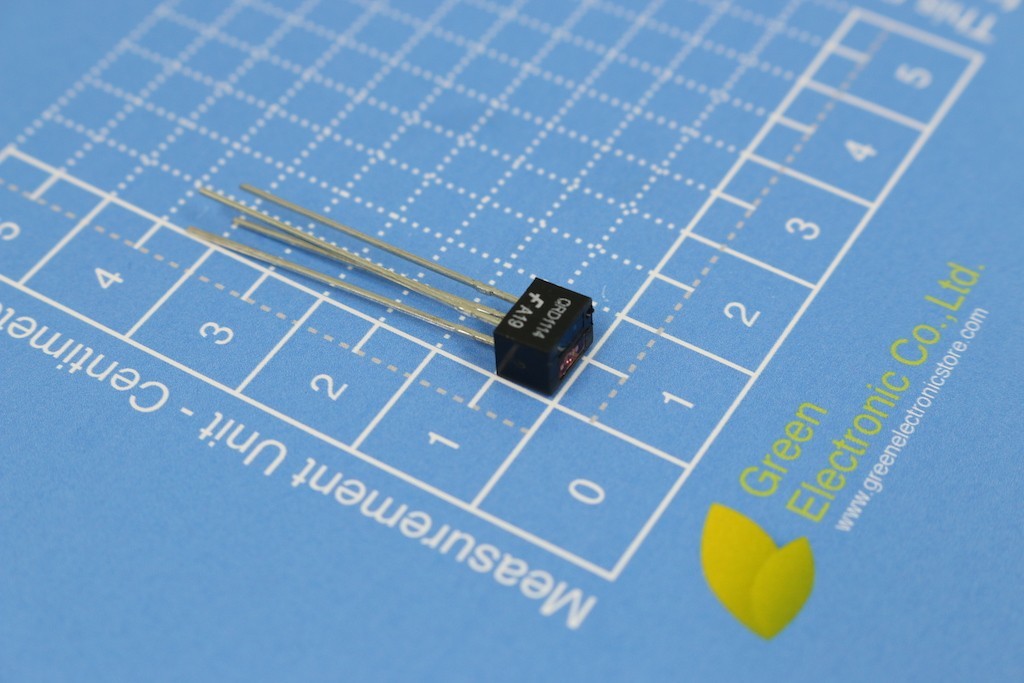

Detail about QRD1114 Reflective Sensor

The QRD1113 and QRD1114 reflective sensors consist of an infrared emitting diode and an NPN silicon phototrans- istor mounted side by side in a black plastic housing. The on-axis radiation of the emitter and the on-axis response of the detector are both perpendicular to the face of the QRD1113 and QRD1114. The phototransistor responds to radiation emitted from the diode only when a reflective object or surface is in the field of view of the detector.


  • Phototransistor Output
  • No-Contact Surface Sensing
  • Unfocused for Sensing Diffused Surfaces
  • Compact Package
  • Daylight Filter on sensor


Manufacturer: Fairchild Semiconductor
Sensing Distance: 1.27 mm
Collector- Emitter Voltage VCEO Max: 30 V
Maximum Collector Current: 0.3 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Mounting Style: Through Hole
Fall Time: 50 us
If - Forward Current: 20 mA
Number of Channels: 1
Output Type: Phototransistor
Rise Time: 10 us
Sensing Method: Reflective
Vf - Forward Voltage: 1.7 V
Vr - Reverse Voltage: 5 V
Wavelength: 940 nm
