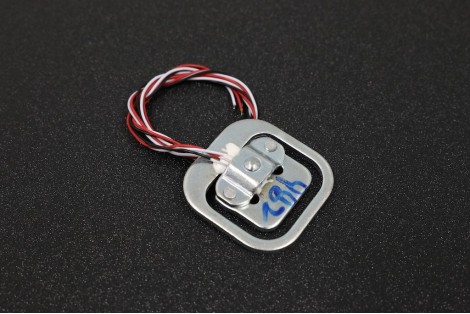

50kg Half-Bridge Load Cell Sensor for Experiments Human Body Scale

SR0042

New product

3,300 Ks

More info

Detail about Load Cell Sensor

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells.

Features

  • Steel type aluminium load cell with High comprehensive precision.
  • Strong capacity of overloading and good sealing.
  • Wide working temperature.
  • Easy to install and debug.
  • Applied to industry weighing system such as bathroom scale and kitchen scale and so on.

Specifications

  • Capacity                            :  50 Kg
  • Comprehensive                  :  0.10 % F.S
  • Output Sensitivity               :  1.0 +/- 15 % mv / V
  • Nonlinearity                       :  0.05 % F.S
  • Repeatability                      :  0.05 % F.S
  • Hysteresis                          :  0.05 % F.S
  • Zero Output                       :  +/- 0.3 mv / v
  • Creep ( 1 min )                   :  0.1 % F.S
  • Zero Drift ( 1 min )             :  0.1 % F.S
  • Temp Effect On Zero           :   0.3 % F.S / 10
  • Temp Effect On Output        :  0.1 % F.S / 10
  • Input Resistance                 :  1 0 0 0 +/- 10 Ohm
  • Input Resistance                 :  1 0 0 0 +/- 10 Ohm
  • Insulation Resistance          :  >= 2 0 0 0 M
  • Excitation Voltage               :  1 0 V D
  • Operation Temp Range        :  -10 ~ + 5 0
  • Overload Capacity               :  150 % F.S
